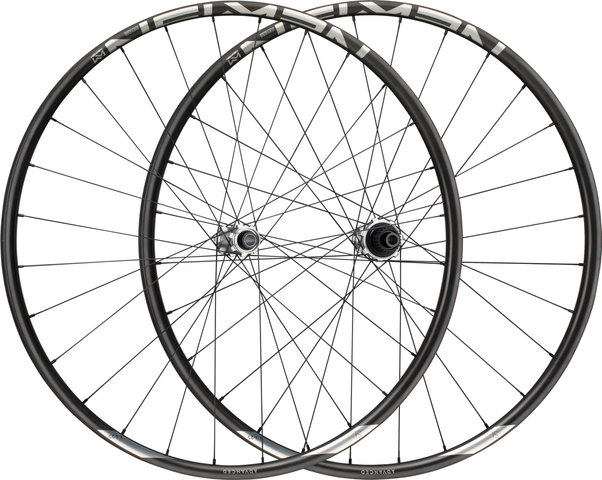

NEWMEN Advanced SL X.A.25 FADE Boost Center Lock Disc 29" Wheelset

The Advanced X.A. 29" wheelset from NEWMEN is made of very light carbon and was developed for cross country use. Equipped with the FADE-Boost hub and hookless rims, it can withstand loads even at low air pressure. The set includes a starter pack from milKit and matching rim tape, so you can start riding tubeless right away.

Features:

• hookless rim design
• unidirectional carbon
• with tubeless all-round carefree package

Before using the Tubeless Conversion Kit from milKit, read the safety instructions and Hazardous Materials.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Type:

Advanced SL X.A.25

Rim Flange:

without hook

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

30 mm

Depth:

18.5 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

Carbon

Technical Information - Front Hub:

Type:

FADE

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

double-sealed ball bearings

Body Material:

aluminium (7075)

Technical Information - Rear Hub:

Type:

FADE

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

double-sealed ball bearings

Body Material:

aluminium (7075)

Freehub Body Material:

aluminium

Freehub Body:

3 pawls (36 contact points)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

Straight Pull

Spoke Size:

306 mm

Spoke Material:

stainless steel

Nipple Type:

Polyax double square

Nipple Size:

16 mm

Nipple Material:

aluminium

Approved For:

Weight Limit:

125 kg (system weight)

Air Pressure (max.):

3.5 bar

Recommended Tyre Width:

1.4" to 2.4"

Colour info:

black-silver:

• Rims: black with silver decals
• Hubs: silver
• Spokes: black
• Nipples: black

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Numbers:

90471 + 90474

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

90471 + 90473

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Numbers:

90471 + 90472

Contents:

• 1 x NEWMEN Advanced SL X.A. 25 wheelset (front- and rear wheel)
• 1 x milKit Tubeless conversion kit
• 2 x NEWMEN Tubeless Rim Tape Strips

• black-silver/SRAM XD/Boost/148 mm/110 mm/Boost/29"/110 mm/SRAM XD/110 mm/148 mm: 1255 g
• black-silver/Shimano Micro Spline/Boost/148 mm/110 mm/Boost/29"/110 mm/Shimano Micro Spline/110 mm/148 mm: 1255 g
• black-silver/Shimano MTB/Boost/148 mm/110 mm/Boost/29"/110 mm/Shimano MTB/110 mm/148 mm: 1260 g
