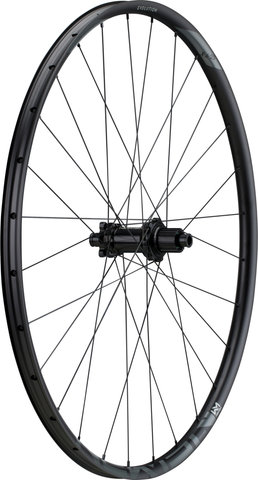

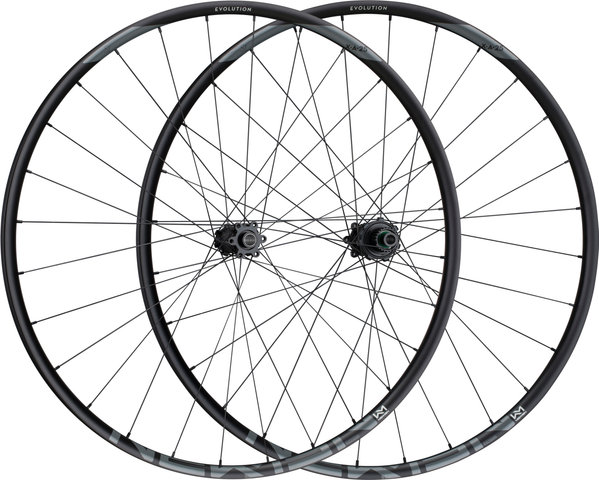

NEWMEN Evolution SL X.A.25 Fade Boost Disc 6-bolt 27.5" Wheelset

Item number: 77908
Evolution SL X.A.25 Fade Boost Disc 6-bolt 27.5" Wheelset - black-black/27.5" set (front 15x110 Boost + rea 12x148 Boost) Shimano Micro Spline
Evolution SL X.A.25 Fade Boost Disc 6-bolt 27.5" Wheelset - black-black/27.5" set (front 15x110 Boost + rea 12x148 Boost) Shimano Micro Spline
Evolution SL X.A.25 Fade Boost Disc 6-bolt 27.5" Wheelset - black-black/27.5" set (front 15x110 Boost + rea 12x148 Boost) Shimano Micro Spline
Evolution SL X.A.25 Fade Boost Disc 6-bolt 27.5" Wheelset - black-black/27.5" set (front 15x110 Boost + rea 12x148 Boost) Shimano Micro Spline
Evolution SL X.A.25 Fade Boost Disc 6-bolt 27.5" Wheelset - black-black/27.5" set (front 15x110 Boost + rea 12x148 Boost) Shimano Micro Spline
Evolution SL X.A.25 Fade Boost Disc 6-bolt 27.5" Wheelset - black-black/27.5" set (front 15x110 Boost + rea 12x148 Boost) Shimano Micro Spline
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

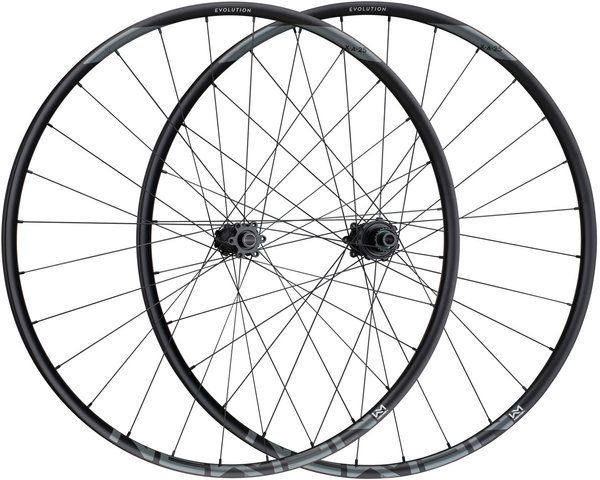

The Evolution X.A. wheelset by NEWMEN in 27.5" is very light and suitable for cross country bikers who prefer marathons. The FADE Boost hub and the 25 mm inside width make the wheels ready for wide tyres.

Specifications:

Application:
Cross Country
Wheel Size:
27.5"
Tyre Type:
clincher tyre
Number of Spokes:
28
Brake Type:
6-bolt disc
Wheel Standard:
Boost
Tubeless System:
Tubeless Ready

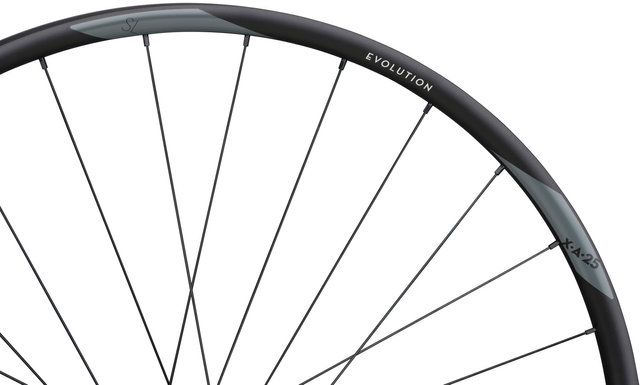

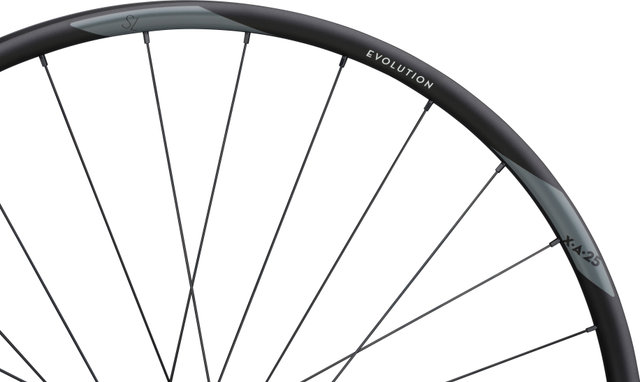

Technical Information - Rim:

Type:
Evolution SL X.A.25
Rim Flange:
without hook
Dimensions (ETRTO):
25-584
Inner Width:
25 mm
Outer Width:
28.5 mm
Depth:
17.5 mm
Valve Hole Diameter:
SV / Presta (6.5 mm)
Rim Material:
aluminium

Technical Information - Front Hub:

Type:
FADE
Over Locknut Dimension:
15 x 110 mm thru-axle
Bearings:
double-sealed ball bearings
Body Material:
aluminium (7075)

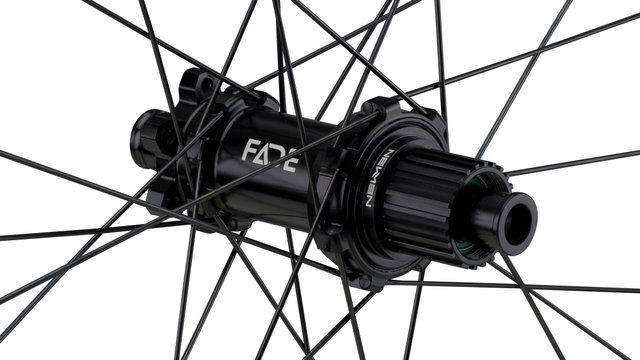

Technical Information - Rear Hub:

Type:
FADE
Over Locknut Dimension:
12 x 148 mm thru-axle
Bearings:
double-sealed ball bearings
Body Material:
aluminium (7075)
Freehub Body Material:
aluminium
Freehub Body:
3 pawls, 36 contact points

Technical Information - Lacing:

Front Lacing Pattern:
3-cross
Rear Lacing Pattern:
3-cross
Spoke Type:
Straight Pull
Spoke Size:
Spoke Material:
steel
Nipple Type:
Polyax double square
Nipple Size:
16 mm
Nipple Material:
aluminium

Approved For:

Weight Limit:
125 kg (system weight)
Air Pressure (max.):
3.5 bar
Recommended Tyre Width:
1.4" to 2.4"

Features:

  • Made in Germany
  • rims made of high-strength aluminium
  • hookless rims

Colour info:

black-black:
  • Rim: black
  • Hubs: black
  • Spokes: black
  • Nipples: black

Models:

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano:
Freehub:
Shimano MTB
Gearing:
8-/9-/10-/11-speed
Manufacturer Numbers:
90629 + 90632

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:
Freehub:
Shimano Micro Spline
Gearing:
12-speed
Manufacturer Numbers:
90629 + 90631

27.5" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:
Freehub:
SRAM XD
Gearing:
11-/12-speed
Note:
A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.
Manufacturer Numbers:
90629 + 90630

Contents:

  • 1 x NEWMEN Evolution SL X.A.25 wheelset (front- and rear wheel)

Weight:

  • black-black/27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano: 1414 g (Satz)
  • black-black/27.5" set (front 15x110 Boost + rea 12x148 Boost) Shimano Micro Spline: 1409 g (Satz)
  • black-black/27.5" set (front 15x110/Boost+ rear 12x148 Boost) SRAM XD: 1409 g (Satz)

Models:

  • black-black/27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano, in stock
    587.71€
  • black-black/27.5" set (front 15x110 Boost + rea 12x148 Boost) Shimano Micro Spline, in stock
    587.71€
  • black-black/27.5" set (front 15x110/Boost+ rear 12x148 Boost) SRAM XD, in stock
    587.71€
