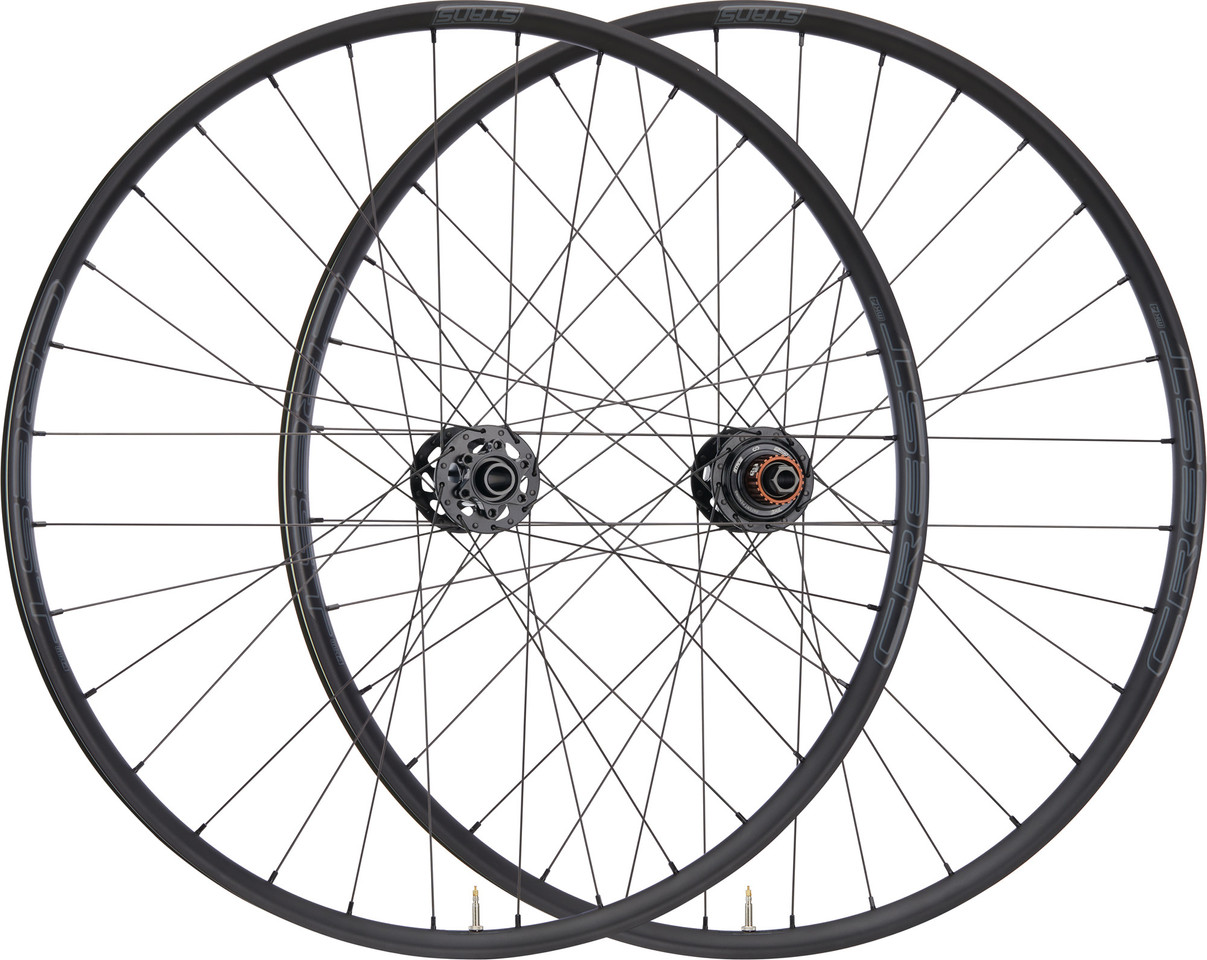

NoTubes Crest MK4 6-Bolt Disc Boost 29" Wheelset

The lightweight Crest MK4 6-bolt Disc wheelset from NoTubes is suitable for cross-country and gravel bikes with Boost standard. The asymmetric rim design offers you stiffer, more stable wheels.

Specifications:

Application:

Cross Country, Gravel

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

32 hole

Brake Type:

Disc 6-bolt (Boost)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

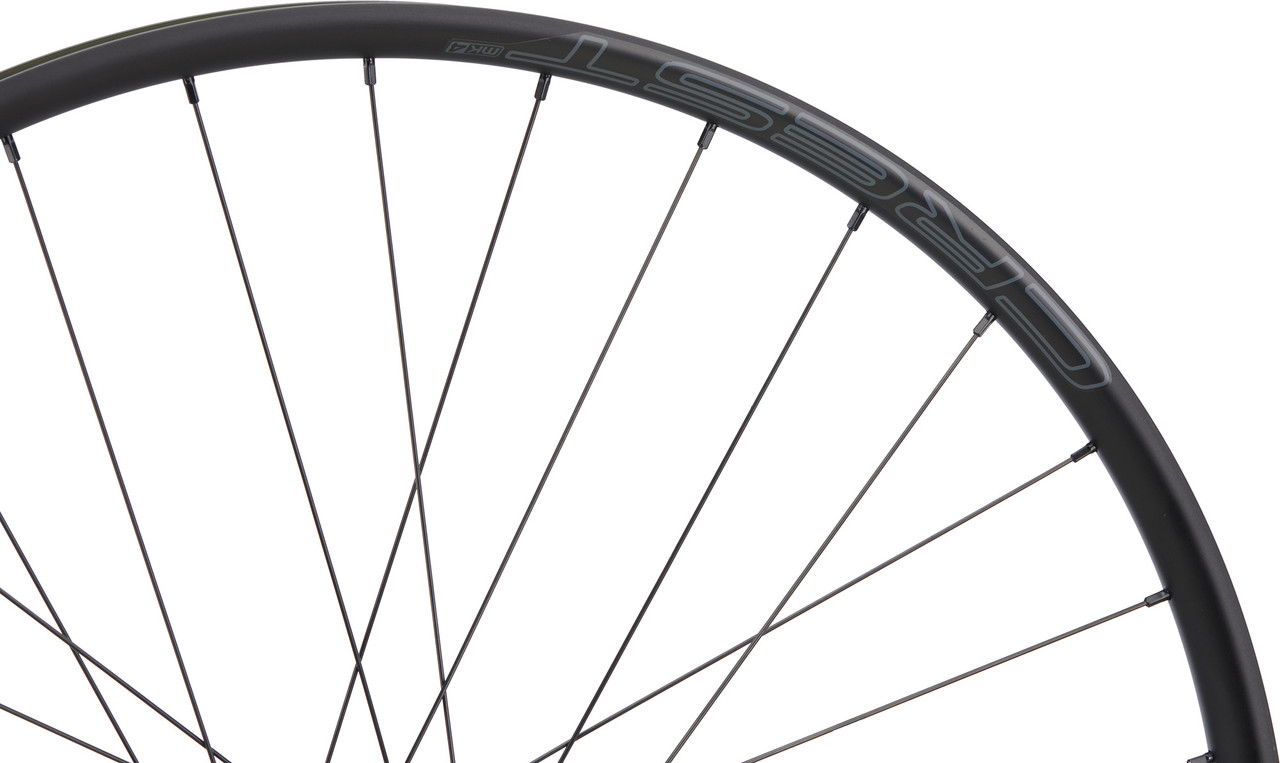

Technical Information - Rim:

Type:

Crest S2 Disc

Rim Flange:

with hook

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

28.4 mm

Depth:

18 mm

ERD:

601 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (6069)

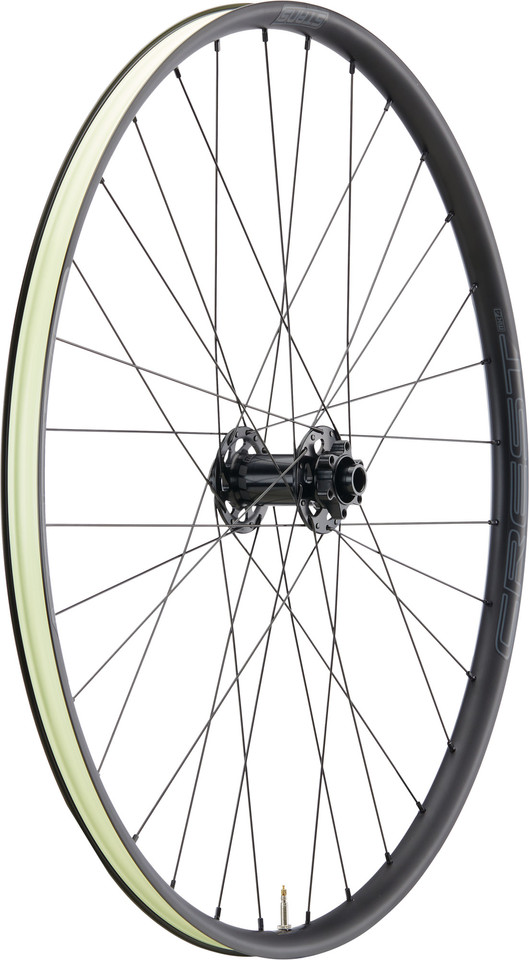

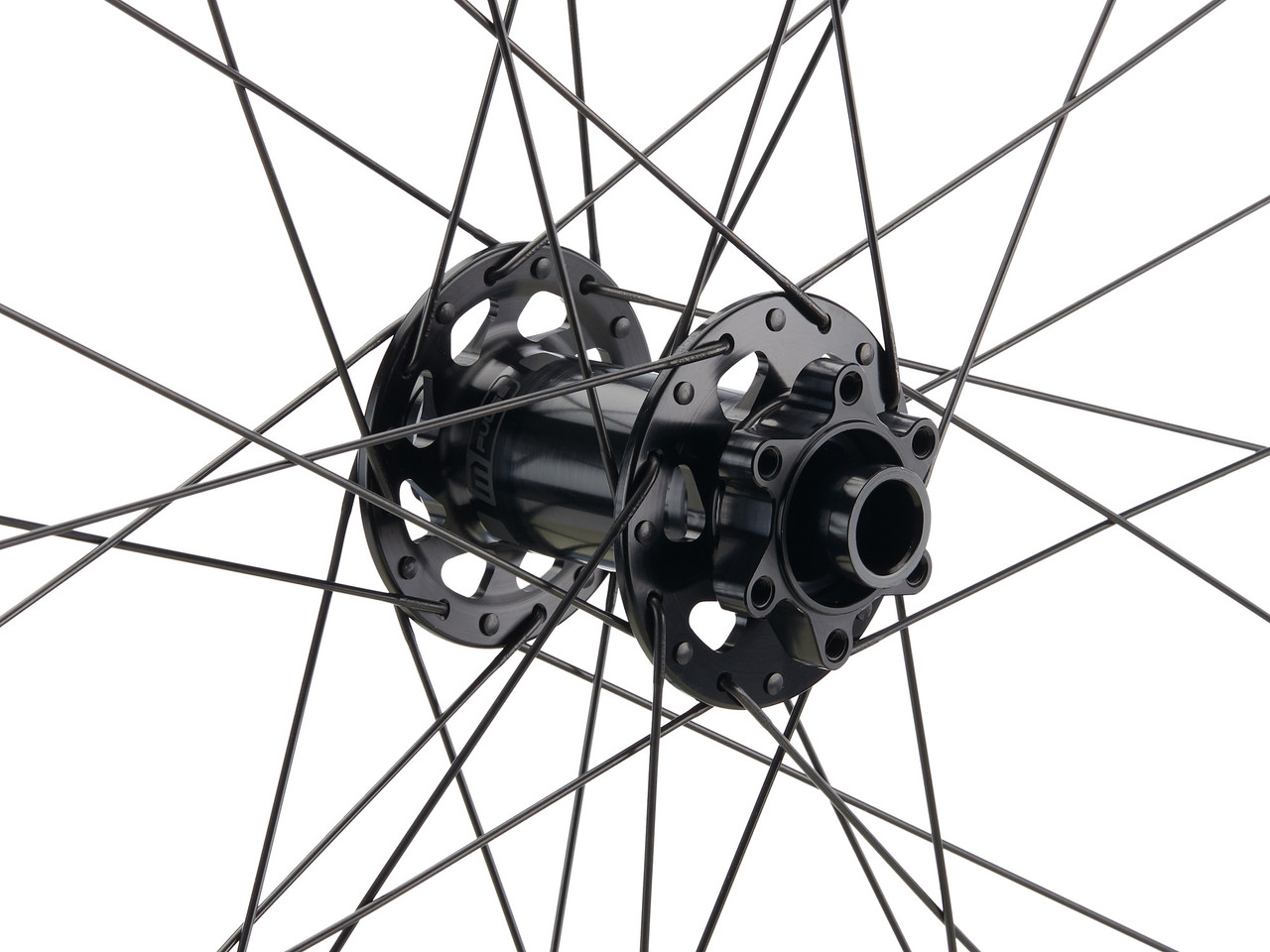

Technical Information - Front Hub:

Type:

M-Pulse

Over Locknut Dimension:

15 x 110 mm thru-axle

Body Material:

Aluminium

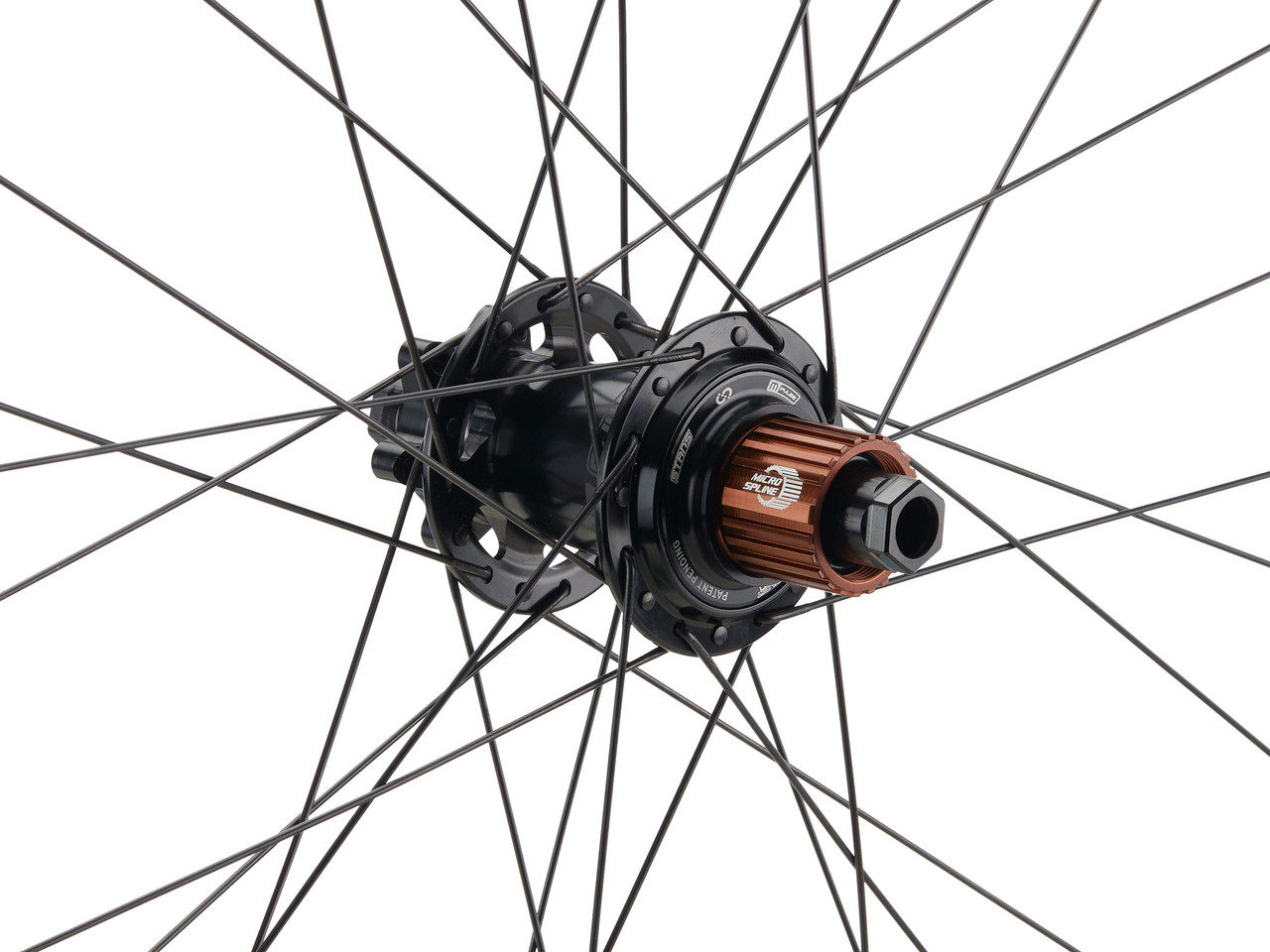

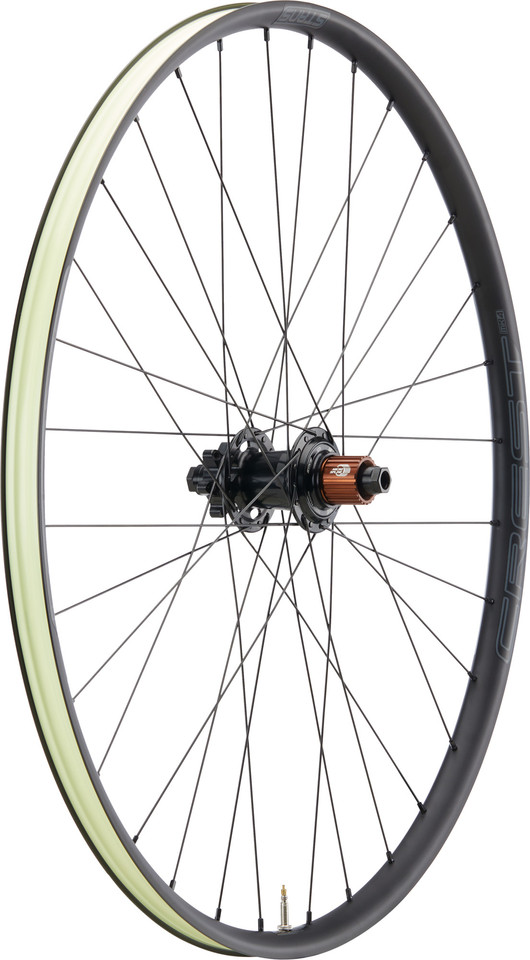

Technical Information - Rear Hub:

Type:

M-Pulse

Over Locknut Dimension:

12 x 148 mm thru-axle

Body Material:

Aluminium

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

Sapim D-Light / J-Bend / double butted (2.0 mm - 1.65 mm -2.0 mm)

Spoke Material:

stainless steel

Nipple Type:

Sapim Double Square

Nipple Material:

Aluminium

Approved For:

Weight Limit:

86 kg total weight

Air Pressure (max.):

3.2 bar (2" ), 2.7 bar (2.3" )

Recommended Tyre Width:

2 - 2.3"

Colour Info:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

DWC490001 (front) + DWC490005 (rear)

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Numbers:

DWC490001 (front) + DWC490006 (rear)

Contents:

• 1 x NoTubes Crest MK4 6-bolt Disc Boost 29" wheelset (front- and rear wheel)
• 2 x tubeless valves
• 2 x roll of rim tape
