Root-Lever Pro Brake Lever Set for Magura MT - black/universal

OAK Components Root-Lever Pro Brake Lever Set for Magura MT

Item number: 93125
1
1

The Root-Lever Pro brake lever set from OAK Components pimps your Magura MT brakes


With the OAK Components Root-Lever Pro brake lever set, you can give your Magura brake from the MT series an upgrade in terms of adjustability, modulation and durability. Thanks to CPA and EPA technology, you can define the bite point, lever position and free travel precisely according to your preferences, and the system works without an error-prone return spring. The kink protection on the brake hose connection, which can better absorb the forces acting on it with a stainless steel spring, also ensures fewer failures. Thanks to the optimised lever ratio, your brakes deliver more power, which you can also control more precisely. Last but not least, the levers, which are CNC-manufactured in Europe, impress with their outstanding design.

Specifications:

Application:
Cross Country, All Mountain, Enduro, Downhill
Type:
hydraulic

Technical Information:

Lever Length:
1-finger
Adjustment Options:
grip width, bite point
Design:
Flip-Flop (without specific side)
Material:
aluminium

Compatibility:

  • Magura MT8 (Raceline / Pro / SL / SL FM)
  • Magura MT7 (Pro / Raceline)
  • Magura MT6
  • Magura MT5
  • Magura MT4
  • Magura MT Trail (Sport / Carbon)

Features:

  • brake lever set for Magura brakes of the MT series
  • optimised adjustment of bite point, lever width and free travel without return spring
  • improved lever ratio for strong braking power and easy modulation (ratio approx. 6.5:1)
  • patented kink protection on the brake hose
  • reliable, precise and durable
  • chic design
  • component development with topology optimisation, resulting in more material at more stressed points
  • analysing weak points in the development process with FEM simulations
  • extensive test rides and tests on the test bench
  • CNC manufactured
  • made in Europe

Note from the manufacturer:

Bleeding is required during installation.

Technology:

ALK
With ALK (Advanced Lever Kinematics) technology, OAK Components optimised the lever ratio in numerous test runs. This means you benefit from maximum braking power with first-class modulation.

CPA
With CPA (Contact Point Adjustment) you can set the bite point precisely. This is done using the CNC-milled CPA adjusting screw. This has fine detent marks on the thread in 1/4 millimetre increments and thus provides haptic feedback with a click when adjusting. The possible adjustment range is greater than with the original lever.

EPA
Thanks to EPA (Empty Path Adjustment) technology, you can adjust the brake lever free travel precisely and quickly without tools using the aluminium EPA adjustment screw. There is no return spring, which makes the system more fail-safe. In combination with CPA you achieve the optimum lever position. When stationary, EPA allows you to lock the brake for a short time. If you turn the grub screw until the brake engages, you can carry out minor maintenance work on the road without your bike rolling away.

SBP
The SBP (Superior Bending Protection) prevents the brake hose from kinking at the hose support. A stainless steel spring is used for this, which promises better protection than conventional plastic parts. The kink protection sleeve is made of aluminium.

Manufacturer Numbers:

raw:
02-000-A01-E00
black:
02-000-A01-E01
lunar grey:
02-000-A01-E11

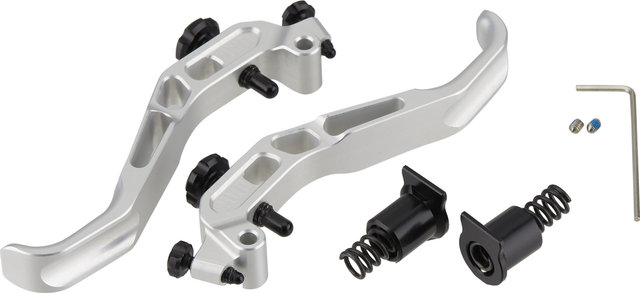

Contents:

  • 2 x OAK Components Root-Lever Pro brake levers for Magura MT
  • 2 x OAK Components aluminium kink protection sleeves
  • 2 x CPA aluminium adjustment screws
  • 2 x EPA aluminium adjustment screws
  • 2 x stainless steel springs
  • 2 x grub screws
  • 2 x double spring sleeves
  • 1 x 1.5 mm hex bit

Order Together:

Optional accessories:

  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

Models:

  • black/universal, in stock
    120.30€
  • lunar grey/universal, in stock
    120.30€
  • raw/universal, in stock
    120.30€
