ÖHLINS Ball Joint Mounting Bushing Set 8 mm for 16 mm Eyelet

The Ball Joint mounting set from ÖHLINS is used to install your TTX 22 M shock with 16 mm eyelet if you want to mount it using ball joints. The spacers have an inner diameter of 8 mm. This must match the outer diameter of the mounting bolts of your frame.

Technical Information:

Eyelet to Eyelet Lengths:

15.75 mm, 21.8 mm, 22.0 / 22.2 mm

Compatibility:

• TTX 22 M MTB Universal with 16 mm rear shock eyelet

Features:

• for mounting by means of ball joints
• aluminium spacer with 15 mm outer and 8 mm inner diameter

Manufacturer Numbers:

15.75 mm:

18116-01

21.8 mm:

18117-01

22.0 / 22.2 mm:

18118-01

Contents:

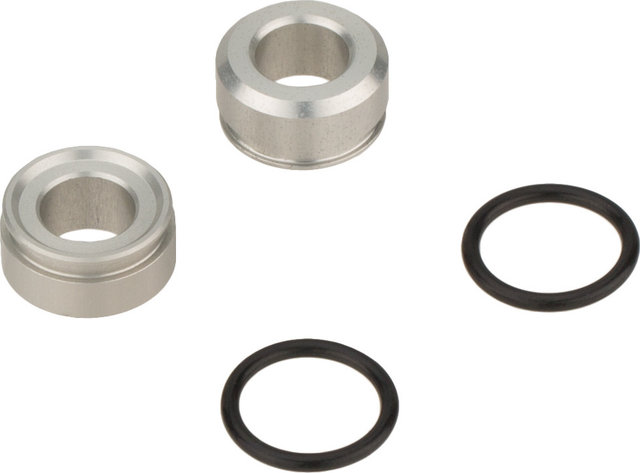

Mounting bushings set ÖHLINS Ball Joint 8 mm, comprising:

• 2 x spacers
• 2 x O-rings

Order Together:

• Ball Joint Kit
