ÖHLINS Bushing Set 10 mm for 15 mm Eyelet

The bushing set from ÖHLINS is used to mount your TTX shock with 15 mm eyelet. The metal sleeve has an inner diameter of 10 mm, this must match the outer diameter of the mounting bolts of your frame.

Compatibility:

• TTX Air with 15 mm shock eyelet
• TTX 22 M with 15 mm shock eyelet

Features:

• metal sleeve with 12.74 mm outer diameter and 10 mm inner diameter
• plastic spacer with 12.75 mm inner diameter

Manufacturer Numbers:

15.0 mm:

18130-24

20.0 mm:

18130-18

25.0 mm:

18130-19

30.0 mm:

18130-20

35.0 mm:

18130-21

40.0 mm:

18130-22

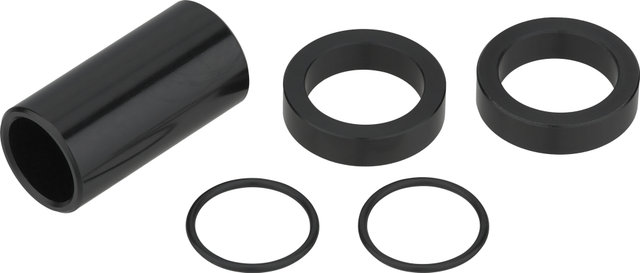

Contents:

ÖHLINS Bushing Set 10 mm, consisting of:

• 1 x ÖHLINS sleeve
• 2 x 12.75 mm spacer
• 2 x O-rings

Order Together:

• ÖHLINS DU Bushing Kit Guide Sleeves for 15 mm Eyelet
