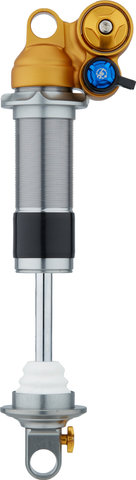

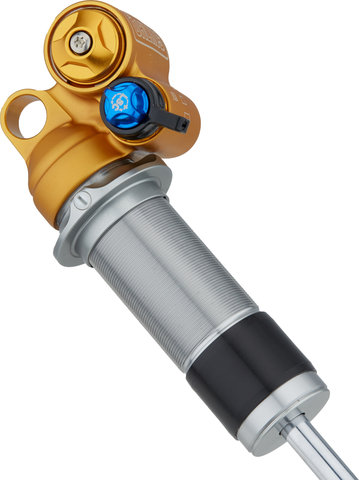

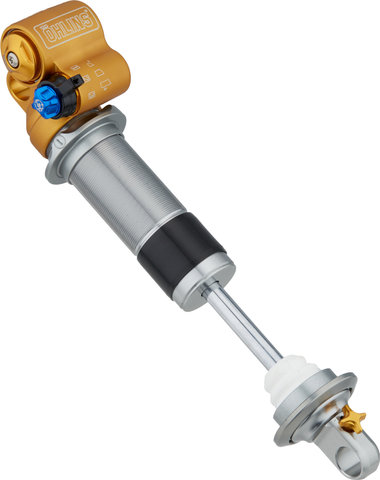

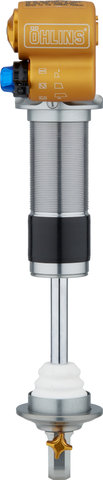

ÖHLINS TTX 22 M.2 Coil Shock

Specifications:

Application:

All Mountain, Enduro, Downhill

Suspension Type:

coil spring

Size x Stroke:

210 mm x 55 / 52.5 / 50 / 47.5 mm (with spacers), 230 mm x 65 / 62.5 / 60 / 57.5 mm (with spacers), 250 mm x 75 / 72.5 / 70 / 67.5 mm (with spacers)

Technical Information:

Damping System:

Twin Tube (TTX)

Bushing Material:

Aluminium

Body Material:

Aluminium

Shaft Material:

stainless steel

Adjustment Options:

Compression:

High-Speed (3 positions), Low-Speed (22 positions)

Rebound:

Yes (7 positions)

Remote:

no

Features:

• high-performance steel coil shock for demanding trail and downhill use
• reservoir in Side-by-Side design saves space
• three spacers for self-adjustment of the stroke in 2.5 mm increments, without special tools
• Low-Speed compression damping adjustable in 22 clicks
• TTX Twin-Tube design for optimum pressure ratios
• simplified coil replacement

Manufacturer Numbers:

210 mm x 55 mm:

MTBM 2204

230 mm x 65 mm:

MTBM 2208

250 mm x 75 mm:

MTBM 2212

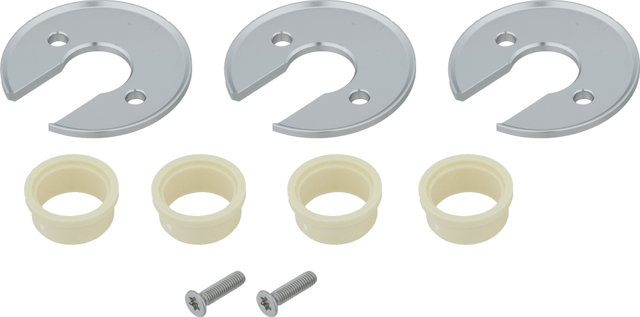

Contents:

• 1 x ÖHLINS TTX 22 M.2 Coil shock
• 3 x spacers, 2.5 mm
• 2 x bolts, 12 mm
• 4 x bushings

Order Together:

• ÖHLINS Steel Coil for TTX 22 M up to 57 mm stroke
• ÖHLINS Steel Coil for TTX 22 M for 58 - 67 mm stroke
• ÖHLINS Steel Coil for TTX 22 M for 68 - 76 mm stroke
