ParkTool Quick-Change T-handle w/ Bits QTH-1

Specifications:

Function:

screwdriver

Tool Type:

Bit, special tool

Type:

hex tool, Torx, phillips head screwdriver

Drive:

Hexagon 1/4"

Technical Information:

Material:

steel

Handle Shape:

T-shaped

Features:

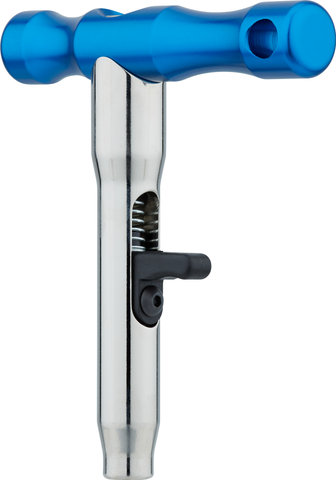

• magnetic bit driver with T-handle

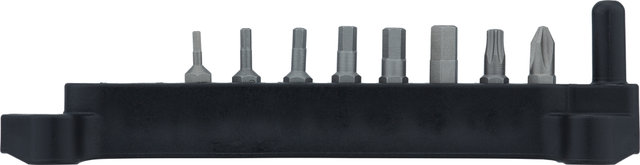

• 8 common bits in magnetic holder
• quickly change bits with one hand

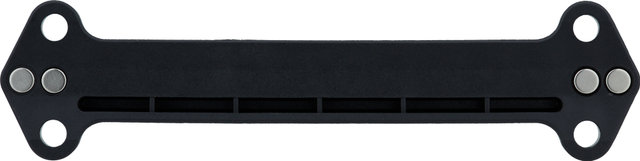

• bit holder can be attached to any magnetic surface, e.g. repair stand
• alternatively, fixed mounting on the wall is possible
• holder has two empty spaces for additional 1/4" bits

Application:

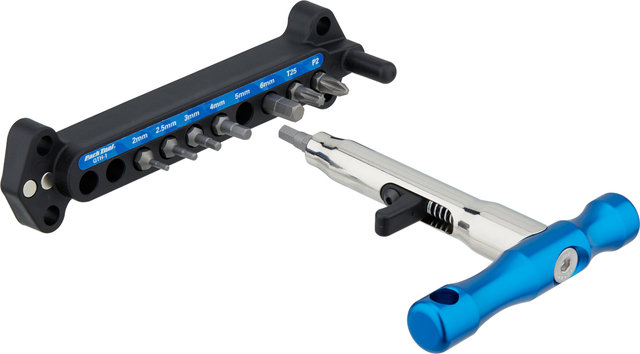

1. To select a bit from the holder, put the end of the driver on the bit until it is picked up by the magnet.
2. If necessary, turn the tool slightly so that the bit is fully seated in the tool.
3. To detach a bit from the tool, guide the bit back into the bit holder so that it makes contact with the magnet.
4. Meanwhile, pull and hold the trigger.
5. Pull the driver away from the bit holder so that the bit remains in the holder, release the trigger.

Note from the manufacturer:

For QTH-1 to work properly, the bits must be inserted into the holder with the drive side down.

Manufacturer Number:

QTH-1

Contents:

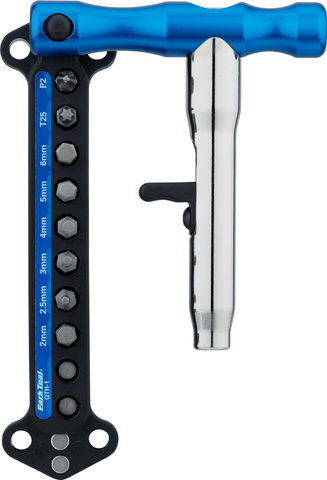

ParkTool QTH-1 Quick-change T-handle Set, consisting of:

• 1 x ParkTool bit driver
• 1 x ParkTool bit holder

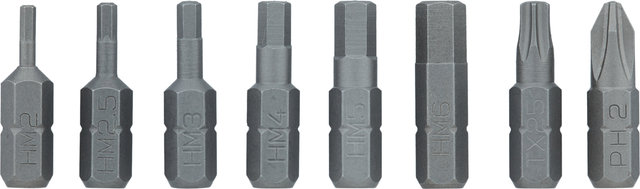

• 1 x hex bit, 2 mm
• 1 x hex bit, 2.5 mm
• 1 x hex bit, 3 mm
• 1 x hex bit, 4 mm
• 1 x hex bit, 5 mm
• 1 x hex bit, 6 mm
• 1 x T25 Torx bit
• 1 x Phillips #2 bit
