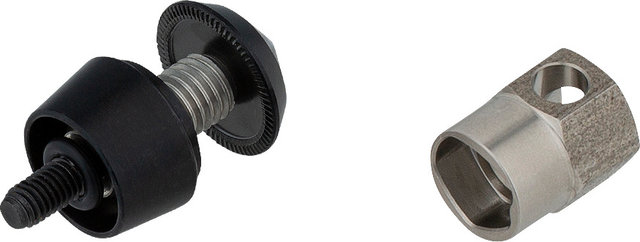

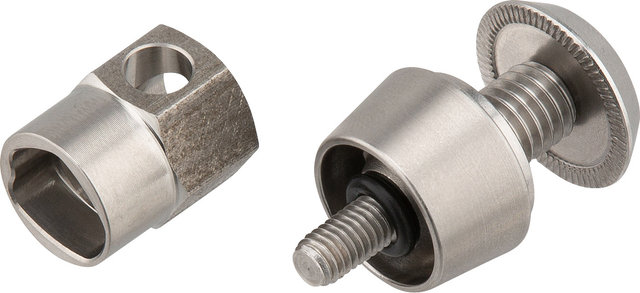

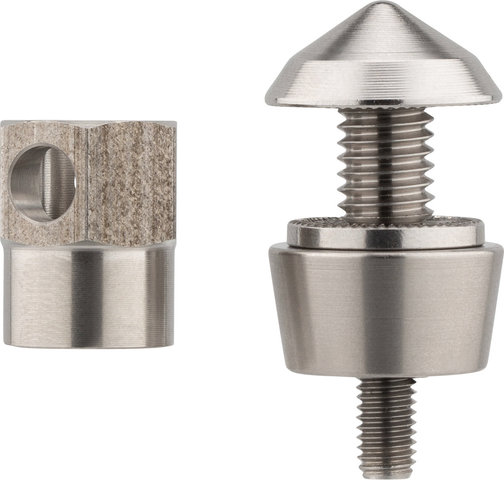

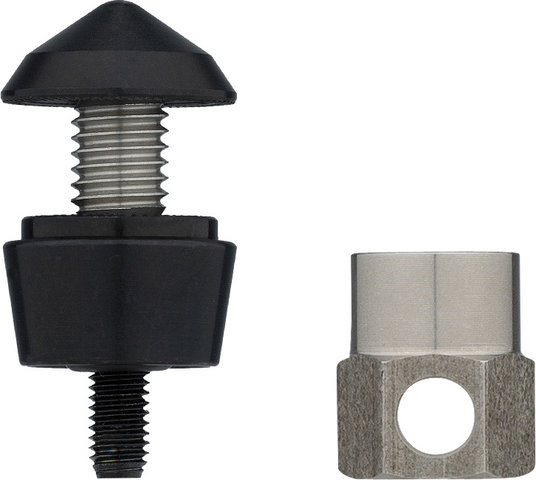

Pitlock Lock Set 08 for Removable Dropouts

Axle with continuous thread and lock plus M8 threaded bushing to secure the unscrewable dropouts. Set 08 for detachable dropouts prevents easy removal of your rear wheel.

Very easy installation: just remove one bolt at the dropout and screw in the screw sleeve. Insert the Pitlock axle from the inside through the bushing, screw on the lock and tighten it with the PIT.

Specifications:

Installation Width:

20 mm

Axle Diameter:

5 mm

Technical Information:

Axle Material:

stainless steel

Axle Length:

30 mm (without head)

Features:

• axle for dropout with an M8 threaded bushing

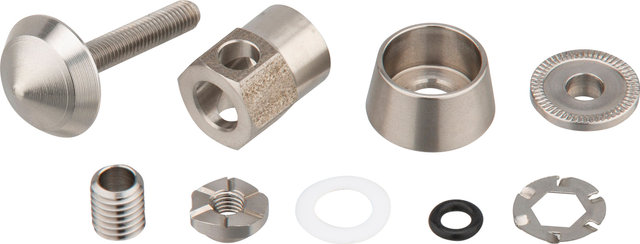

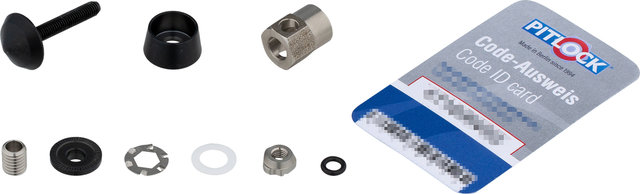

Contents:

• 1 x Pitlock lock for removable dropouts
• 1 x key (PIT)
• 1 x Pitlock code card
