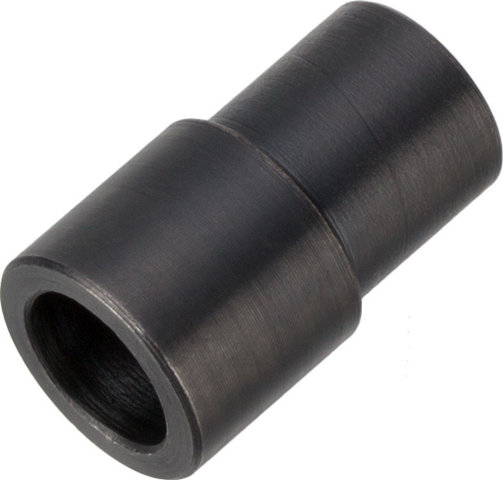

Reset Racing Bushing for Presswerk

Sleeve adapter as an accessory for the Reset Presswerk press tool. In addition, a matching pressure piece counterpart is necessary.

Models:

Type 1:

• Bearing Dimensions (inside x outside x width): 8 x 16 x 5 mm
• Designation: e.g. 688
• Matching Pressure Piece: 8205 (= Type 1)*
• Manufacturer Number: 8197

Type 2:

• Bearing Dimensions (inside x outside x width): 8 x 19 x 6 mm, 10 x 19 x 5 mm, 10 x 19 x 7 mm
• Designation: e.g. 698, 6800, 63800
• Matching Pressure Piece: 8206 (= Type 2)*, 8208 (= Type 4), 8208 (= Type 4),
• Manufacturer Number: 8198

Type 3:

• Bearing Dimensions (inside x outside x width): 8 x 22 x 7 mm, 10 x 22 x 6 mm
• Designation: e.g. 608, 6900
• Matching Pressure Piece: 8207 (= Type 3)*, 8209 (= Type 5)
• Manufacturer Number: 8200

Type 4:

• Bearing Dimensions (inside x outside x width): 10 x 26 x 8 mm, 17 x 26 x 5 mm
• Designation: e.g. 6000, 6803
• Matching Pressure Piece: 8210 (= Type 6), 8217 (= Type 13)
• Manufacturer Number: 8202

Type 5:

• Bearing Dimensions (inside x outside x width): 12 x 21 x 5 mm
• Designation: e.g. 6801
• Matching Pressure Piece: 8211 (= Type 7)
• Manufacturer Number: 8199

Type 6:

• Bearing Dimensions (inside x outside x width): 12 x 24 x 6 mm, 12.7 x 24 x 7/10 mm, 15 x 24 x 5 mm
• Designation: e.g. 6901, 6901 sm max, 6802
• Matching Pressure Piece: 8212 (= Type 8), 8213 (= Type 9), 8215 (= Type 11)
• Manufacturer Number: 8201

Type 7:

• Bearing Dimensions (inside x outside x width): 12 x 28 x 8 mm, 15 x 28 x 7 mm
• Designation: e.g. 6001, 6902
• Matching Pressure Piece: 8214 (= Type 10), 8216 (= Type 12)
• Manufacturer Number: 8203

Type 8:

• Bearing Dimensions (inside x outside x width): 17 x 30 x 7 mm
• Designation: e.g. 6903
• Matching Pressure Piece: 8218 (= Type 14)
• Manufacturer Number: 8204

* The M10 to M8 special spindle and the M8 clamp nut are also required.

Contents:

• 1 x Reset Racing bushing
