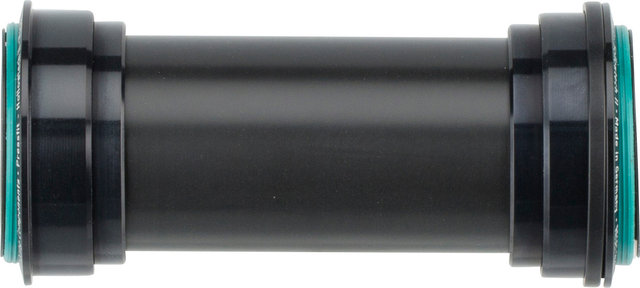

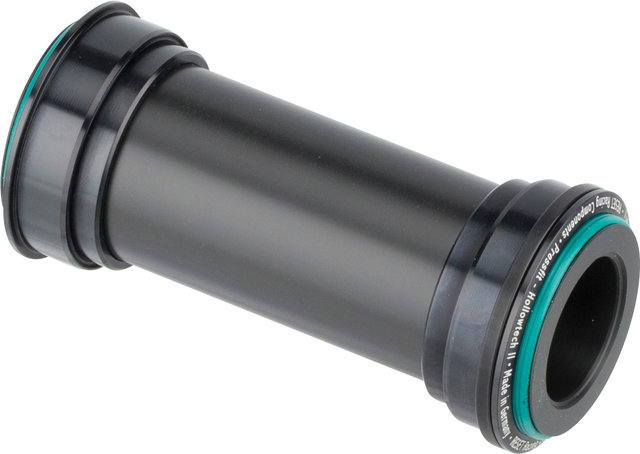

Reset Racing X-Press MTB Hollowtech II Bottom Bracket - 41 x 89.5-92 mm

For large pipe cross sections: the X-Press bottom bracket from Reset Racing

Reset Racing X-Press bottom brackets are light, torsionally stiff and designed for modern frame constructions with large tube cross sections. They are made of high-quality materials and equipped with modern bearing technology and seals that keep out dirt and water. X-Press bottom brackets from Reset can be completely disassembled for maintenance.

Specifications:

Application:

Cross Country, All Mountain, Enduro

Type:

Press Fit BB92

Shell Diameter:

41 mm

Shell Width:

89.5 mm, 92 mm

Axle Diameter:

24 mm (Hollowtech II)

Technical Information:

Bearings:

deep groove ball bearing, steel

Bottom Bracket Cup Material:

aluminium (7075)

Bottom Bracket Centre Tube Material:

composite (POM, NBR)

Seals:

radial shaft seal, O-rings

Compatibility:

• Hollowtech II cranks (e.g. from Shimano, Race Face, FSA, Rotor)
• not compatible with SRAM / Truvativ GXP cranks

Features:

• anodised and laser engraved

Manufacturer Number:

5414

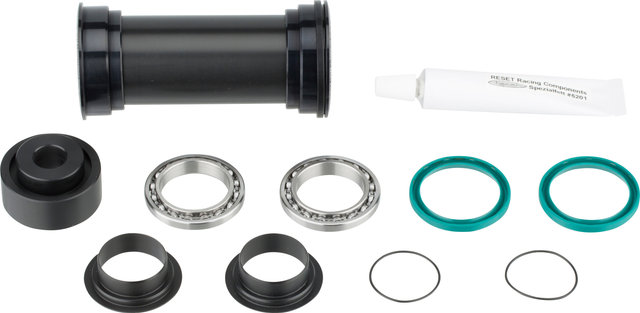

Contents:

• 1 x Reset Racing X-Press MTB bottom bracket cup, left, incl. bearings
• 1 x Reset Racing X-Press MTB bottom bracket cup, right, incl. bearings
• 1 x Reset Racing bottom bracket sleeve for 89.5/92 mm
• 2 x O-ring
• 2 x end caps
• 1 x Reset Racing bearing cup guide
• 1 x spacer
• incl. O-rings
• incl. grease
