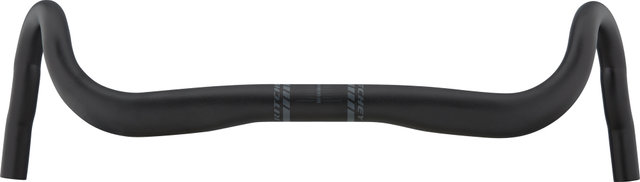

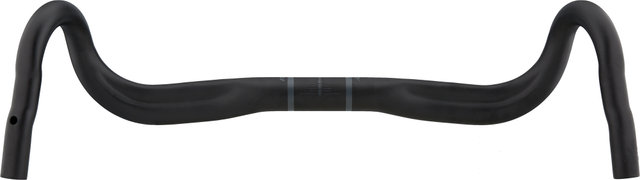

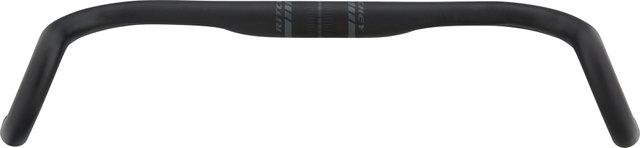

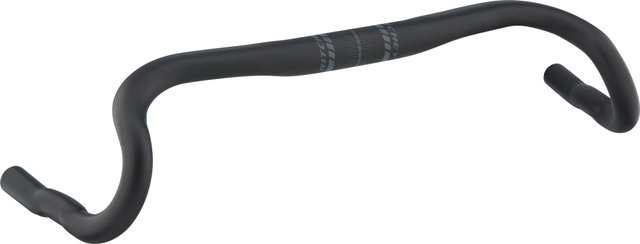

Ritchey Comp VentureMax V2 31.8 Handlebars

The Ritchey Comp VentureMax handlebars with a full 24° flare are suitable in version 2 for internal cable routing on gravel bikes. The handlebars have a wide clamping range with a diameter of 31.8 mm. Therefore, you can also mount aerobars if, for example, you are on the road for a long time. The ergonomic curvature of the lower bar and the low drop afford you a comfortable riding position.

Specifications:

Application:

Gravel

Width:

400 mm, 420 mm, 440 mm, 460 mm (centre-to-centre)

Stem Clamp:

31.8 mm

Technical Information:

Drop:

102 mm

Reach:

75 mm

Backsweep:

4.6°

Flare:

24°

Cable Routing:

internal

Material:

aluminium (6061)

Approved For:

Weight Limit:

110 kg (rider and equipment)

Stem Clamp Width:

100 mm, 120 mm

Features:

• for internal cable routing
• suited for handlebar aerobars

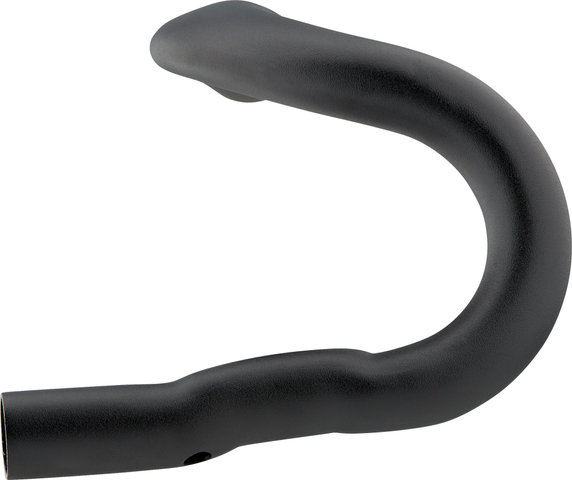

• ergonomic Bio-Bend in the drops
• flattened upper bar for larger hand rest

Models:

40 cm:

Width:

400 mm

Stem Clamp Width:

100 mm

Manufacturer Number:

30335317086

42 cm:

Width:

420 mm (centre-centre)

Stem Clamp Width:

100 mm

Manufacturer Number:

30335317087

44 cm:

Width:

440 mm (centre-centre)

Stem Clamp Width:

100 mm

Manufacturer Number:

30335317088

46 cm:

Width:

460 mm (centre-centre)

Stem Clamp Width:

120 mm

Manufacturer Number:

30335317089

Contents:

• 1 x Ritchey Comp VentureMax V2 31.8 handlebars

• bb black/420 mm: 320 g
