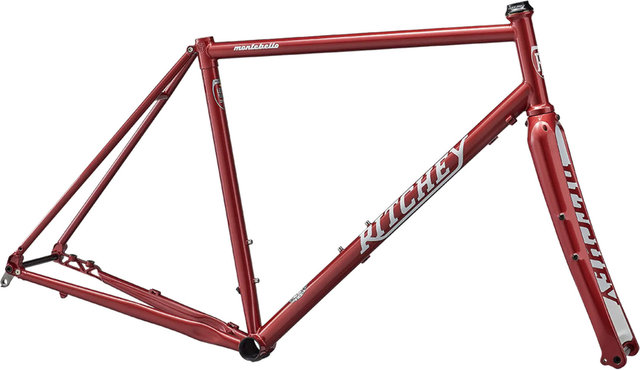

Ritchey Montebello Steel 28" frame kit

Montebello Steel 28" frame kit by Ritchey – Perfect for Road Riding

The Montebello Steel 28" frame kit by Ritchey is designed for road cycling and suits both women and men looking for a reliable and versatile frame. Made from durable steel, it offers a comfortable ride while the carbon fork adds a touch of lightweight performance. The frame supports 28" wheels with a standard 12 x 100 mm front and 12 x 142 mm rear axle, ensuring compatibility with modern setups. You can fit tires up to 40-622 (700 x 40C) both front and rear, giving you the option to take on varied road surfaces with confidence. The frame features a BSA bottom bracket standard and accepts chainrings sized 1x 50T or 2x 39-53T, providing flexibility for your gearing preferences. Disc brakes with flat mount fittings and a maximum rotor size of 160 mm front and rear guarantee strong stopping power. The seatpost diameter is 27.2 mm and the seat clamp uses a bolt for secure adjustment. With a maximum fork length of 388 mm, this frame kit is ready to be built into a solid road bike tailored to your needs.

red | 1 1/8" | XS | 48 mm | 28":

Wheel size:

28"

red | 1 1/8" | S | 48 mm | 28":

Wheel size:

28"

red | 1 1/8" | M | 48 mm | 28":

Wheel size:

28"

red | 1 1/8" | L | 48 mm | 28":

Wheel size:

28"

red | 1 1/8" | XL | 48 mm | 28":

Wheel size:

28"

red | 1 1/8" | XXL | 48 mm | 28":

Wheel size:

28"

red | 1 1/8" | XS | 48 mm | 28":

Steerer Tube:

1 1/8"

Fork Offset:

48 mm

red | 1 1/8" | S | 48 mm | 28":

Steerer Tube:

1 1/8"

Fork Offset:

48 mm

red | 1 1/8" | M | 48 mm | 28":

Steerer Tube:

1 1/8"

Fork Offset:

48 mm

red | 1 1/8" | L | 48 mm | 28":

Steerer Tube:

1 1/8"

Fork Offset:

48 mm

red | 1 1/8" | XL | 48 mm | 28":

Fork Offset:

48 mm

Steerer Tube:

1 1/8"

red | 1 1/8" | XXL | 48 mm | 28":

Fork Offset:

48 mm

Steerer Tube:

1 1/8"

• Versatile Montebello Steel 28" Frame Kit designed for road cycling with disc brakes and compatibility for 1x or 2x chainring setups
• Durable steel frame combined with a lightweight carbon fork for an optimal balance of strength and performance
• Supports wide tires up to 700 x 40C for enhanced comfort and grip on varied road surfaces
• Equipped with flat mount disc brake mounts and accommodates up to 160 mm rotors front and rear for reliable stopping power
• Compatible with 12 x 100 mm front and 12 x 142 mm rear thru-axles and features a 27.2 mm seatpost diameter for modern component fitment

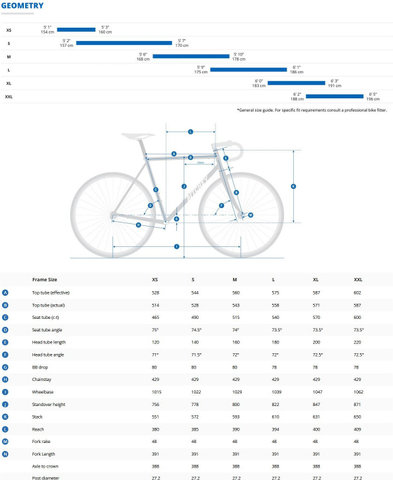

red | 1 1/8" | XS | 48 mm | 28":

Head Tube Angle:

71

Stack:

551 mm

Standover Height:

756 mm

Wheelbase:

1015 mm

Reach:

380 mm

Chainstay Length:

429 mm

Seat Tube Angle:

75

BB Drop:

80 mm

Recommended Rider Height:

154 - 160 cm

Seat Tube Length:

465 mm

Head Tube Length:

120 mm

Effective Top Tube Length:

528 mm

red | 1 1/8" | S | 48 mm | 28":

Head Tube Angle:

71.5

Stack:

572 mm

Standover Height:

778 mm

Wheelbase:

1022 mm

Reach:

385 mm

Chainstay Length:

429 mm

Seat Tube Angle:

74.5

BB Drop:

80 mm

Head Tube Length:

140 mm

Recommended Rider Height:

157 - 170 cm

Seat Tube Length:

490 mm

Effective Top Tube Length:

544 mm

red | 1 1/8" | M | 48 mm | 28":

Head Tube Angle:

72

Stack:

593 mm

Standover Height:

800 mm

Wheelbase:

1029 mm

Reach:

390 mm

Chainstay Length:

429 mm

Seat Tube Angle:

74

BB Drop:

80 mm

Seat Tube Length:

515 mm

Head Tube Length:

160 mm

Recommended Rider Height:

168 - 178 cm

Effective Top Tube Length:

560 mm

red | 1 1/8" | L | 48 mm | 28":

Head Tube Angle:

72

Stack:

610 mm

Standover Height:

822 mm

Wheelbase:

1039 mm

Reach:

394 mm

Chainstay Length:

429 mm

Seat Tube Angle:

73.5

BB Drop:

78 mm

Recommended Rider Height:

175 - 186 cm

Seat Tube Length:

540 mm

Head Tube Length:

180 mm

Effective Top Tube Length:

575 mm

red | 1 1/8" | XL | 48 mm | 28":

Head Tube Angle:

72.5

Stack:

631 mm

Standover Height:

847 mm

Wheelbase:

1047 mm

Reach:

400 mm

Chainstay Length:

429 mm

Seat Tube Angle:

73.5

BB Drop:

78 mm

Recommended Rider Height:

183 - 191 cm

Seat Tube Length:

570 mm

Head Tube Length:

200 mm

Effective Top Tube Length:

587 mm

red | 1 1/8" | XXL | 48 mm | 28":

Head Tube Angle:

72.5

Stack:

650 mm

Standover Height:

871 mm

Wheelbase:

1062 mm

Reach:

409 mm

Chainstay Length:

429 mm

Seat Tube Angle:

73.5

BB Drop:

78 mm

Recommended Rider Height:

188 - 196 cm

Seat Tube Length:

600 mm

Head Tube Length:

220 mm

Effective Top Tube Length:

602 mm

• red | 1 1/8" | XS | 48 mm | 28": 97352837006
• red | 1 1/8" | S | 48 mm | 28": 97352837007
• red | 1 1/8" | M | 48 mm | 28": 97352837008
• red | 1 1/8" | L | 48 mm | 28": 97352837009
• red | 1 1/8" | XL | 48 mm | 28": 97352837010
• red | 1 1/8" | XXL | 48 mm | 28": 97352837011

• 1 x Ritchey Montabello steel frame 28"


• 1 x Ritchey WCS Carbon Brevet fork


• 1 x Ritchey WCS IS42/28.6 - IS42/30 headset
