Ritchey P-29ER Steel 29" frame

P-29ER Steel 29" Frame by Ritchey : Designed for Cross Country MTB Adventures

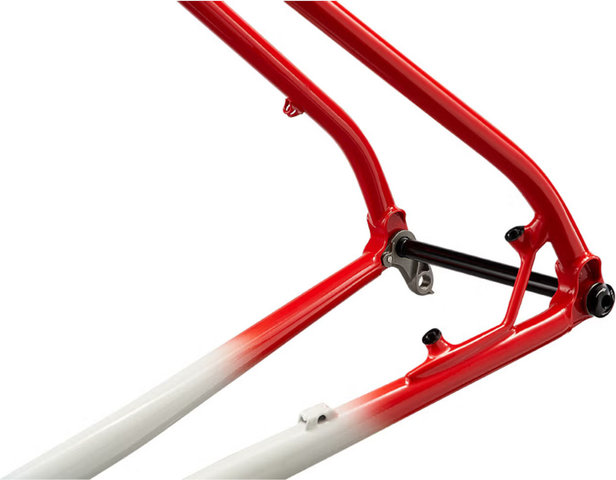

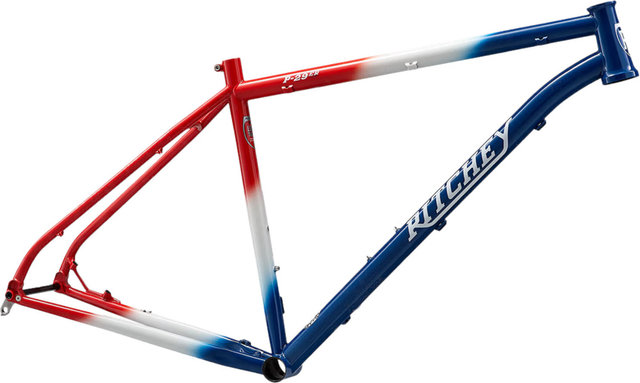

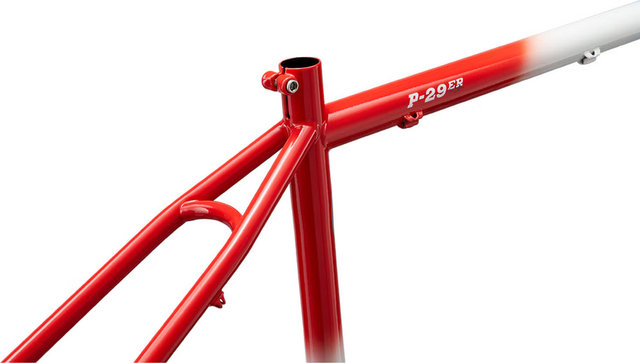

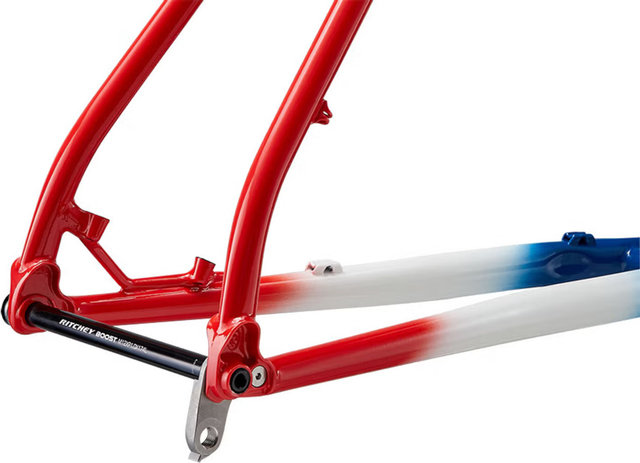

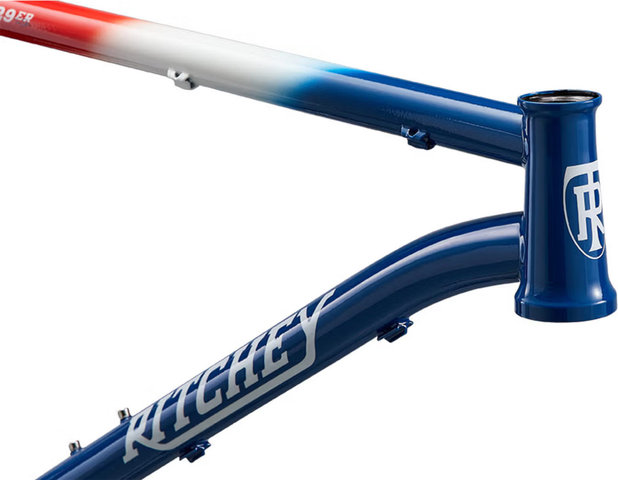

The P-29ER Steel 29" Frame from Ritchey is built for your Cross Country mountain biking rides, combining durability and performance. Crafted from steel, this frame offers a robust foundation while supporting a 29" wheel size for smooth rolling over varied terrain. It features a tapered steerer tube compatible with 1 1/8" to 1.5" setups and a Boost 12 x 148 mm rear wheel standard for enhanced stiffness and control. The frame accommodates a 27.2 mm seatpost and uses a BSA bottom bracket standard, ensuring compatibility with many components. With a maximum rear disc brake size of 180 mm and a direct mount PM6 disc brake mount for 160 mm rotors, you get reliable stopping power. The design supports a single chainring up to 38 teeth, ideal for a streamlined 1x drivetrain setup. Recommended fork travel is 100 mm with a maximum fork length of 483 mm, perfect for responsive handling on technical trails. The bolt-type seat clamp adds to the secure fit and adjustability. This frame is suitable for both women and men looking to tackle their next MTB challenge with confidence.

team edition | 50 mm | S | 29":

Wheel size:

29"

team edition | 50 mm | M | 29":

Wheel size:

29"

team edition | 50 mm | L | 29":

Wheel size:

29"

team edition | 50 mm | XL | 29":

Wheel size:

29"

team edition | 50 mm | S | 29":

Fork Offset:

50 mm

team edition | 50 mm | M | 29":

Fork Offset:

50 mm

team edition | 50 mm | L | 29":

Fork Offset:

50 mm

team edition | 50 mm | XL | 29":

Fork Offset:

50 mm

• Robust steel frame designed for 29" cross country and MTB riding, optimized for 1x drivetrains and Boost 12x148 mm rear wheel standard
• Compatible with tapered 1 1/8" - 1.5" steerer tubes
• Supports up to 180 mm rear disc brakes and 160 mm front disc brakes with direct mount PM6 system for powerful stopping performance
• Designed for 100 mm fork travel and max fork length of 483 mm, perfect for efficient trail handling
• Accommodates wide tires up to 29 x 2.25" for enhanced grip and stability on varied terrain

team edition | 50 mm | S | 29":

Head Tube Angle:

69

Stack:

589 mm

Standover Height:

760 mm

Wheelbase:

1098 mm

Reach:

406 mm

Chainstay Length:

440 mm

Seat Tube Angle:

74

BB Drop:

60 mm

Seat Tube Length:

380 mm

Head Tube Length:

100 mm

Recommended Rider Height:

157 - 170 cm

Effective Top Tube Length:

575 mm

team edition | 50 mm | M | 29":

Head Tube Angle:

69.5

Stack:

595 mm

Standover Height:

787 mm

Wheelbase:

1110 mm

Reach:

421 mm

Chainstay Length:

440 mm

Seat Tube Angle:

74

BB Drop:

60 mm

Seat Tube Length:

431 mm

Head Tube Length:

105 mm

Recommended Rider Height:

168 - 178 cm

Effective Top Tube Length:

592 mm

team edition | 50 mm | L | 29":

Head Tube Angle:

69.5

Stack:

605 mm

Standover Height:

817 mm

Wheelbase:

1131 mm

Reach:

438 mm

Chainstay Length:

440 mm

Seat Tube Angle:

74

BB Drop:

60 mm

Seat Tube Length:

483 mm

Head Tube Length:

115 mm

Recommended Rider Height:

175 - 186 cm

Effective Top Tube Length:

612 mm

team edition | 50 mm | XL | 29":

Head Tube Angle:

69.5

Stack:

619 mm

Standover Height:

847 mm

Wheelbase:

1154 mm

Reach:

456 mm

Chainstay Length:

440 mm

Seat Tube Angle:

74

BB Drop:

60 mm

Recommended Rider Height:

183 - 191 cm

Seat Tube Length:

533 mm

Head Tube Length:

130 mm

Effective Top Tube Length:

634 mm

• team edition | 50 mm | S | 29": 97452007031
• team edition | 50 mm | M | 29": 97452007032
• team edition | 50 mm | L | 29": 97452007033
• team edition | 50 mm | XL | 29": 97452007034

• 1 x Ritchey steel frame P-29ER 29"


• 1 x Ritchey WCS headset IS42/28.6 - IS52/40
