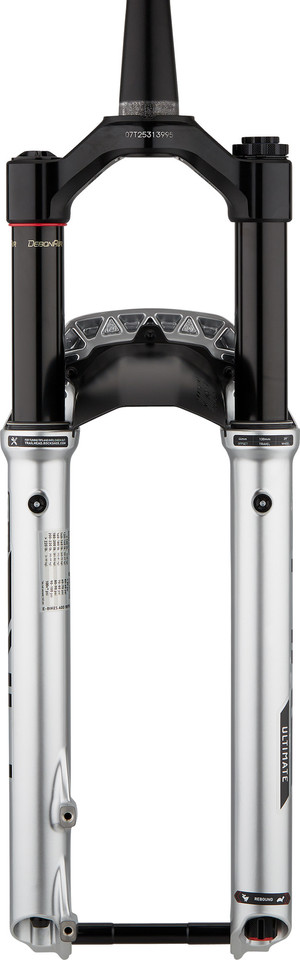

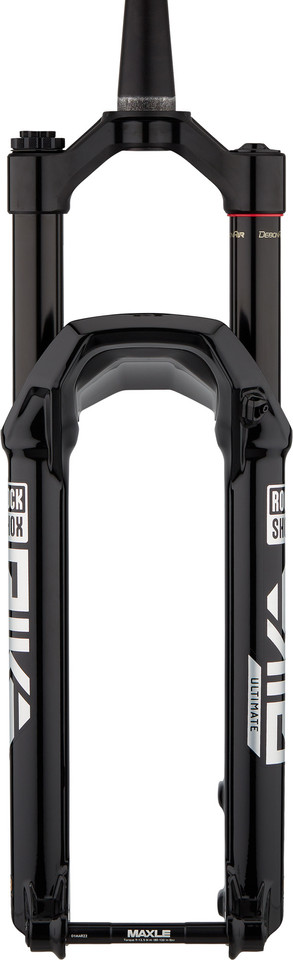

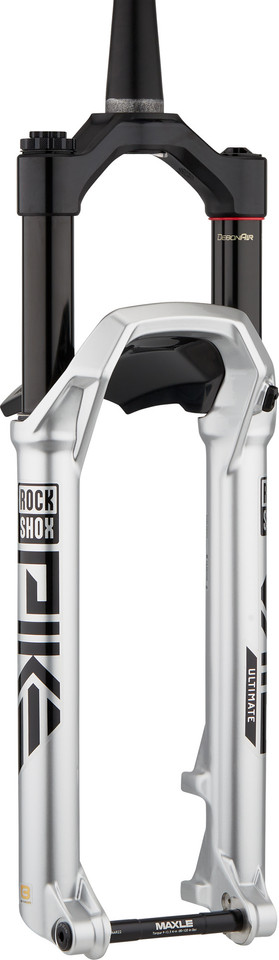

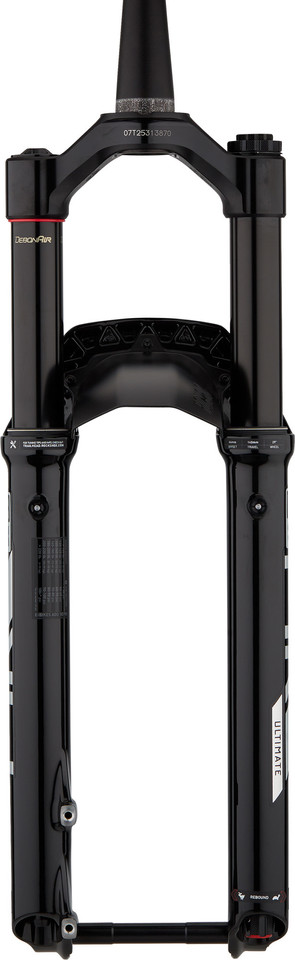

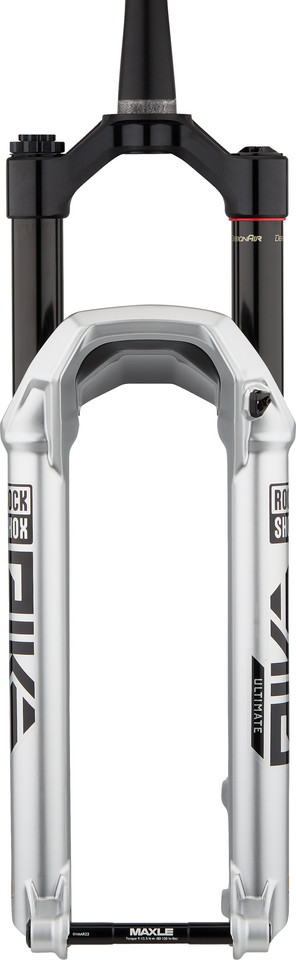

RockShox Pike Ultimate RC2 DebonAir+ Boost 29" Suspension Fork

The RockShox Pike Ultimate RC2 DebonAir+ Boost Suspension Fork for 29" wheels conquers all-mountain trails with you

The RockShox Pike Boost 29" suspension fork for trail bikes comes in the Ultimate configuration with Charger 3 RC2 damper and DebonAir+ air spring, which are supported by ButterCups. The completely independent adjustment of high and low-speed compression damping enables precision tuning and saves you from having to calculate the interplay. The DebonAir+ air spring impresses with excellent response and confidence-inspiring control. Another highlight are the ButterCups, which absorb 20% of those small but incessant vibrations that make life difficult for your arms and hands on long, bumpy trails. The Ultimate bushings are 53% longer than the previous model and have a higher overlap area for low-friction operation. Pressure relief valves allow the air pressure in the immersion tubes to be easily adjusted to the environment.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain

Wheel Size:

29"

Suspension Type:

air

Travel:

120 mm, 130 mm, 140 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM7 (direct mount 180 mm)

Technical Information:

Offset:

44 mm

Steerer Tube Length:

265 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

35 mm

Steerer Tube Material:

Aluminium

Crown Material:

Aluminium

Stanchion Tube Material:

Aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

low-speed, high-speed

Rebound:

low-speed

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 3.1"

Note:

For individual tyres, tyre clearance must be checked with the fork fully compressed and the tyre fully inflated. It should be at least 6 mm all around.

Rotor Size (max.):

220 mm

Features:

• Charger 3 RC2 damping with fully independent adjustment of low and high speed compression through IFP design enables precise tuning
• ButterCups for smooth riding absorb 20% of lighter, high-frequency vibrations and thus prevent fatigue

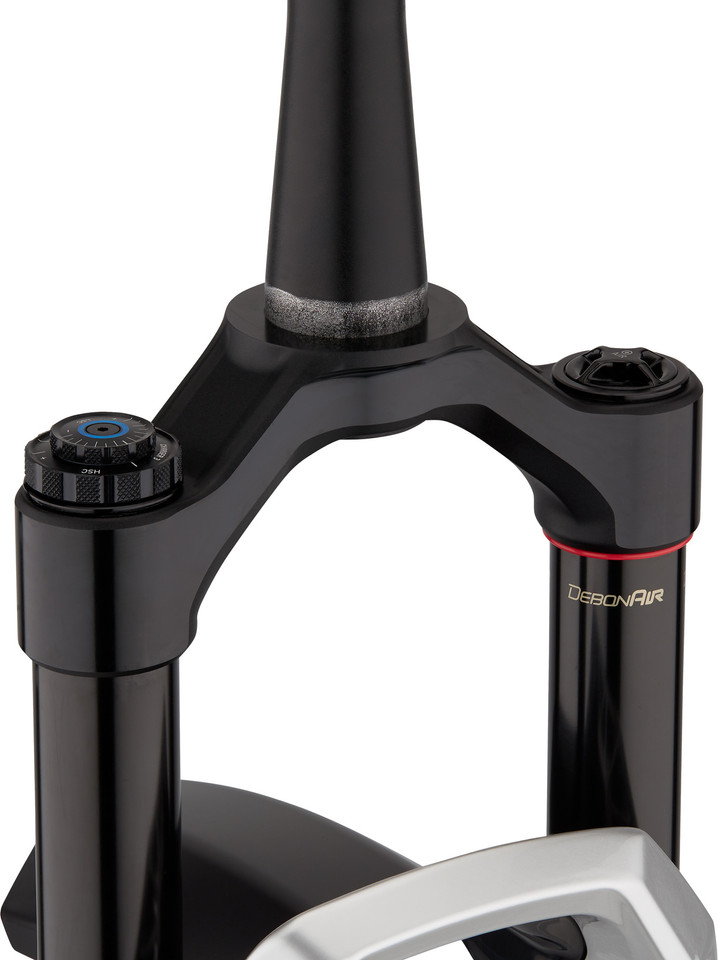

• DebonAir+ air spring with more volume than DebonAir absorbs smaller bumps even better and at the same time stands higher in the suspension travel
• pressure relief valves release excess air pressure in the immersion tubes at the push of a button, adjustment of the air pressure to the environment
• reduced friction due to longer Ultimate bushings with higher overlap than the previous model
• 35 mm stanchion tube diameter for a good ratio of stiffness and low weight
• low-friction SKF wiper seals for high durability and good suspension behaviour
• with Maxima Plush Dynamic Suspension Lube for low friction and good durability
• crown adjust
• torque cap dropouts for increased stiffness
• with screw-on torque cap adapters for simplified use with standard end caps
• fork crown outer diameter: 58 mm

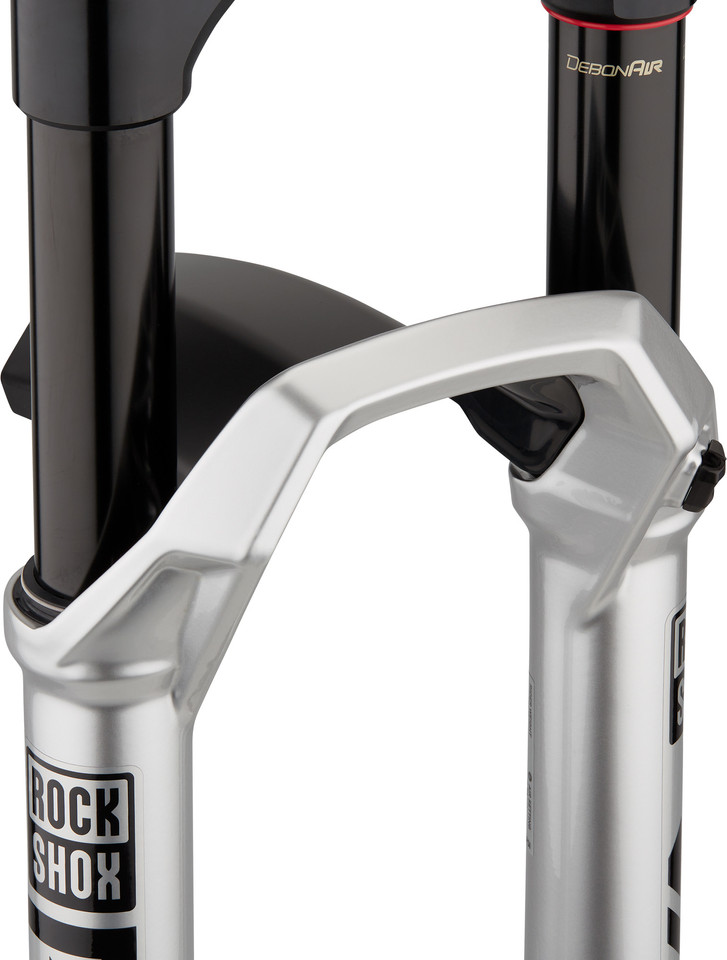

• fork crown light, milled and anodised

Models:

120 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

120 mm

Offset:

44 mm

Axle to Crown:

531 mm

Model ID:

FS-PIKE-ULT-C1

Manufacturer Numbers:

00.4020.697.017 (gloss black), 00.4020.697.014 (gloss silver)

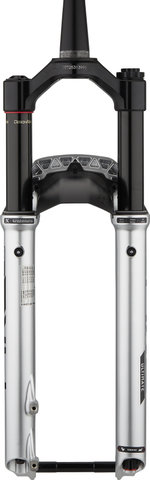

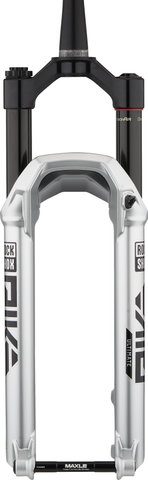

130 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

130 mm

Offset:

44 mm

Axle to Crown:

541 mm

Model ID:

FS-PIKE-ULT-C1

Manufacturer Numbers:

00.4020.697.016 (gloss black), 00.4020.697.013 (gloss silver)

140 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

140 mm

Offset:

44 mm

Axle to Crown:

551 mm

Model ID:

FS-PIKE-ULT-C1

Manufacturer Numbers:

00.4020.697.015 (gloss black), 00.4020.697.012 (gloss silver)

Contents:

• 1 x RockShox Pike Ultimate RC2 DebonAir+ Boost 29" suspension fork

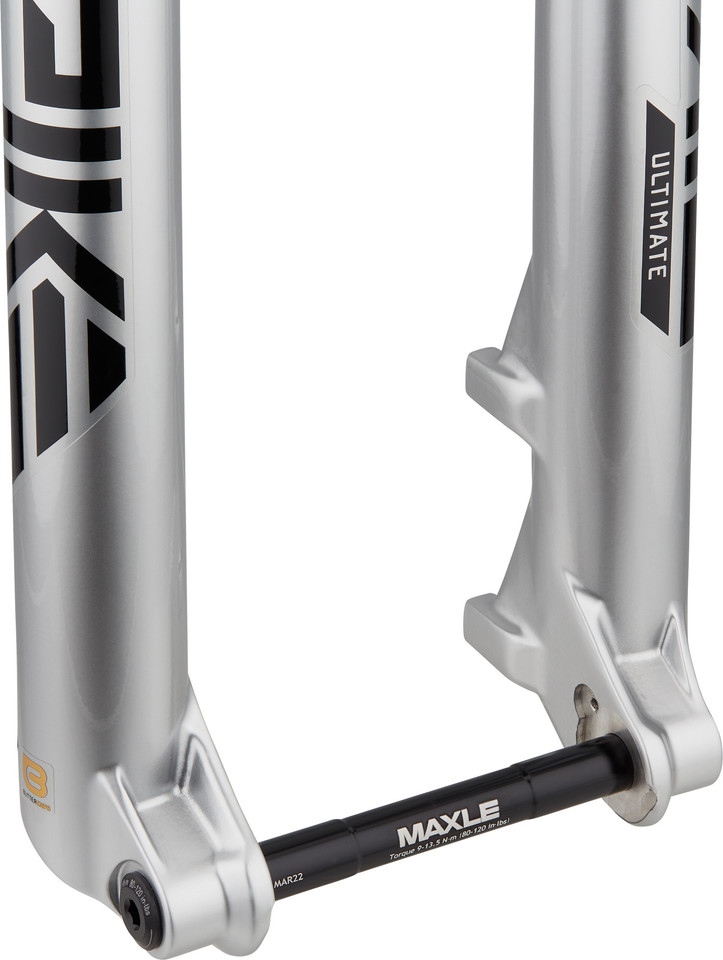

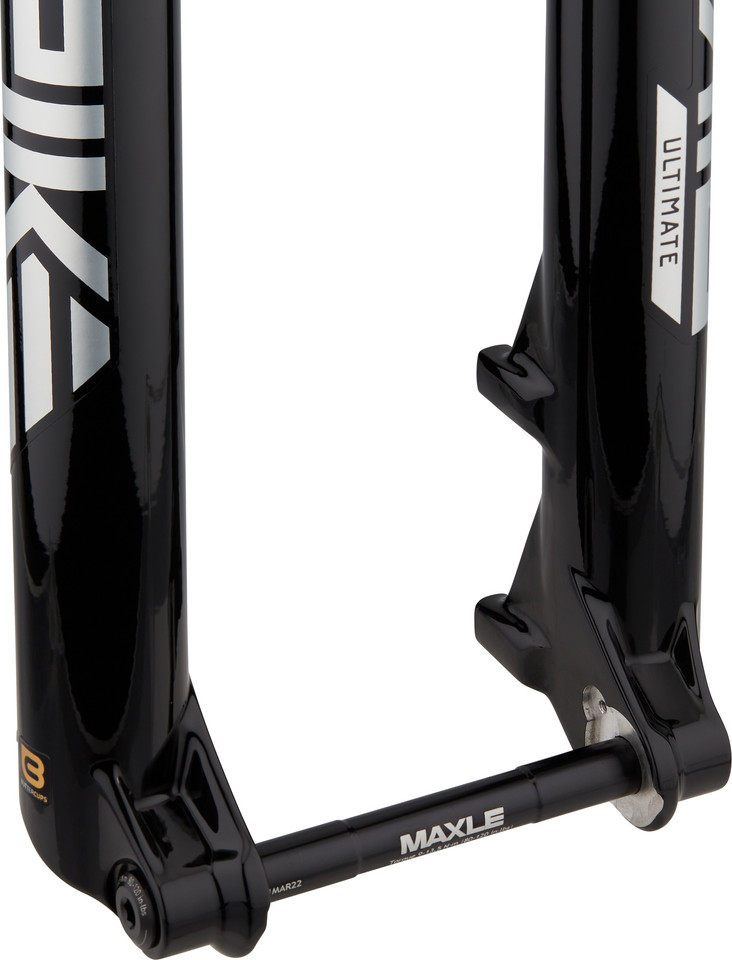

• 1 x RockShox Maxle Stealth thru-axle

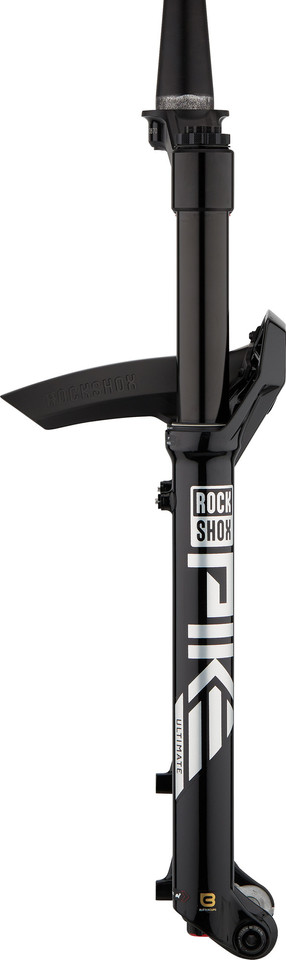

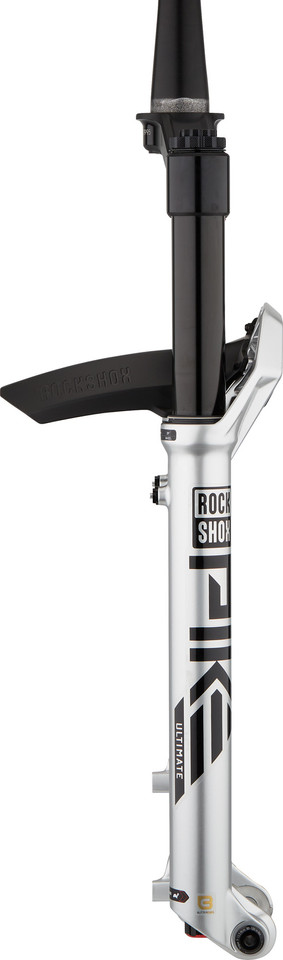

• 1 x RockShox fender

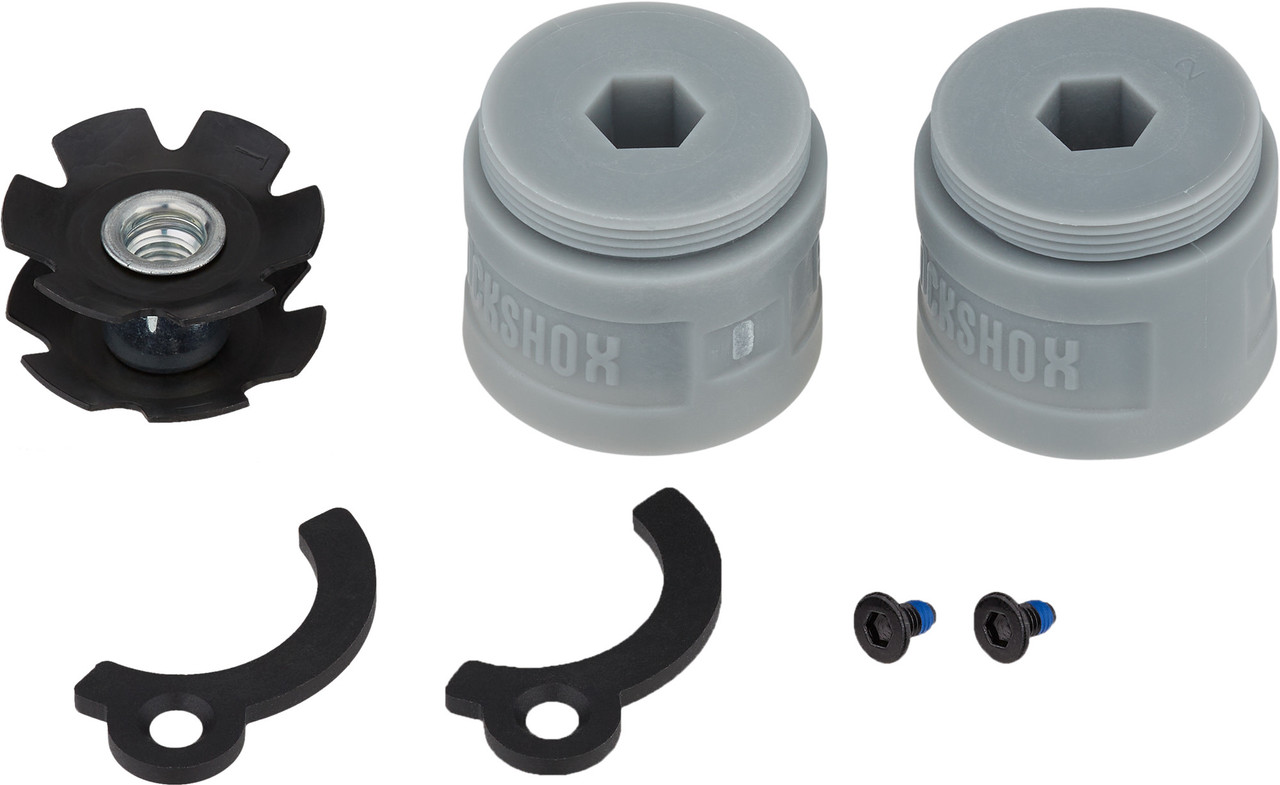

• 2 x RockShox bottomless tokens
• 1 x star nut
• 2 x RockShox end cap adapters
• 2 x bolts
