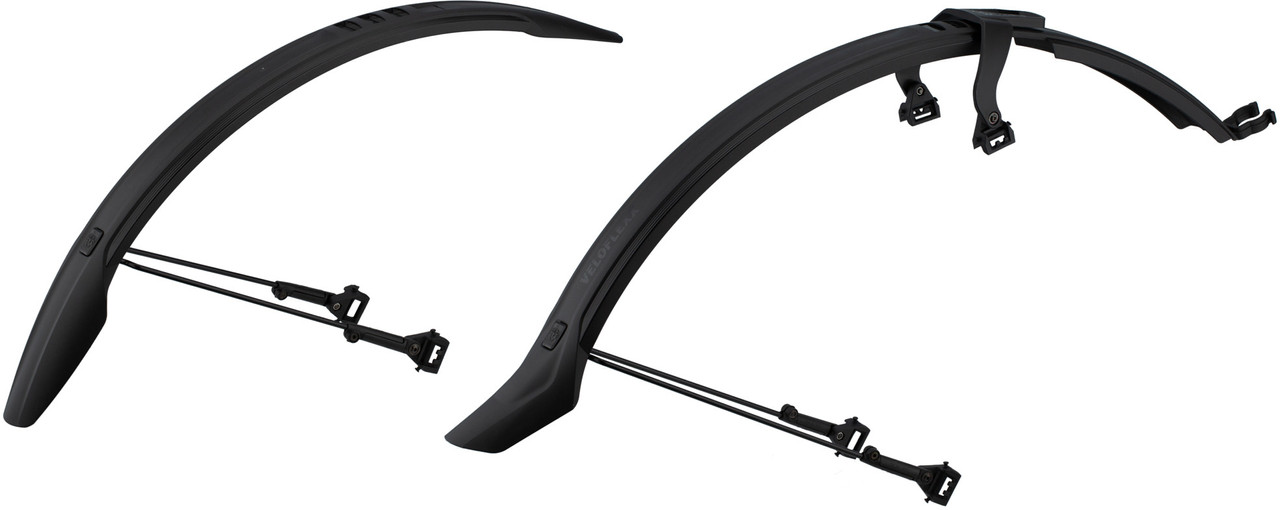

SKS Veloflexx Front & Rear Mudguard Set

Specifications:

Application:

City, Touring, All Mountain

Wheel Size:

26" - 28" , 26" - 27.5" , 29"

Position:

Fork, Frame, Seatpost

Mount:

bolt-on

Width:

55 mm, 65 mm

Front Fender Length:

680 mm, 605 mm, 700 mm

Rear Fender Length:

870 mm, 850 mm, 930 mm

Material:

Composite material

Approved For:

Tyre Size (max.):

28 x 2.1" , 27.5 x 2.35" , 29 x 2.35"

Features:

• mounts via hook & loop fastener and rubber bands without tools
• rear mudguard is attached to the rear stays and the seat tube (max. 35 mm diameter)
• front mudguard is attached to the fork legs
• only compatible with disc brakes
• angles of the frame adapters are adjustable

Models:

55 mm / 28" :

Wheel Size:

26" - 28"

Width:

55 mm

Front Fender Length:

680 mm

Rear Fender Length:

870 mm

Tyre Size (max.):

28 x 2.1"

Manufacturer Number:

11665

65 mm / 26" -27.5" :

Wheel Size:

26" - 27.5"

Width:

65 mm

Front Fender Length:

605 mm

Rear Fender Length:

850 mm

Tyre Size (max.):

27.5 x 2.35"

Manufacturer Number:

11666

65 mm / 29" :

Wheel Size:

29"

Width:

65 mm

Front Fender Length:

700 mm

Rear Fender Length:

930 mm

Tyre Size (max.):

29 x 2.35"

Manufacturer Number:

11667

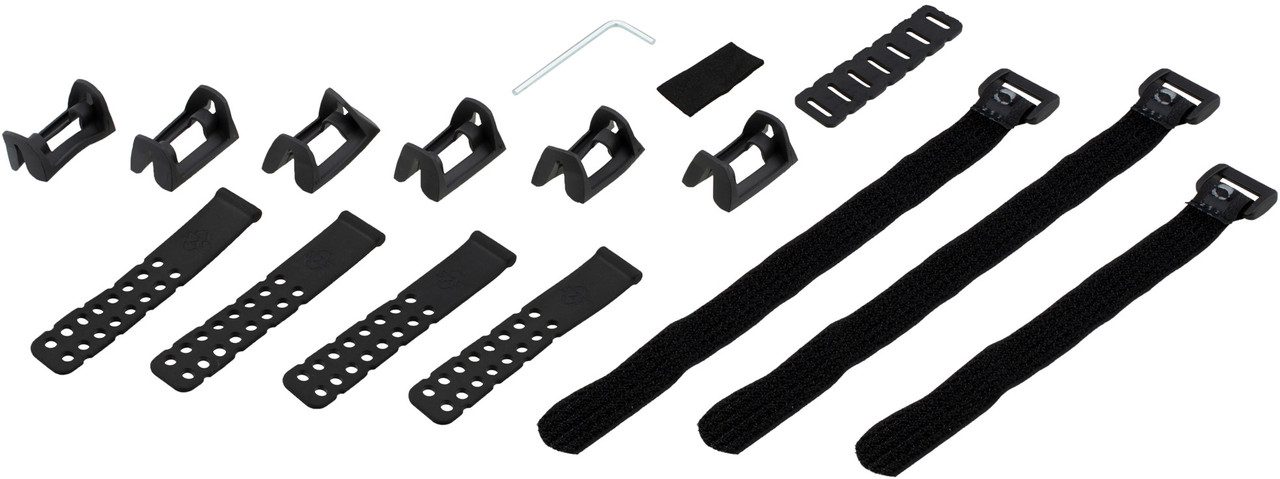

Contents:

• 1 x SKS Veloflex front wheel mudguard
• 1 x SKS Veloflex rear wheel mudguard
• 3 x hook & loop fasteners
• 4 x rubber straps
• 5 x frame protection films
• 6 x rubber inserts
• 1 x hex key
