SRAM Apex 1 Wide XPLR AXS 1x12-speed Groupset

The SRAM Apex 1 groupset with 1x12-speed shifting, Wide and XPLR components and electronic AXS equipment for gravel enthusiasts

This electronic SRAM Apex 1 AXS 1x12-speed groupset with " Wide" chainline and XPLR gradation is recommended for use on gravel bikes. It includes crankset, rear derailleur, disc brakes, cassette and chain. The " Wide" chainline is shifted slightly to the outside, giving you a high degree of tyre clearance. The XPLR cassette with 11 to 44 teeth for Shimano Road freehubs has the right gear for you even in difficult terrain. The hydraulic disc brakes are mounted via flat mount. To keep you in control even on bumpy surfaces, the shift/brake levers and the surface of the rubber grips are textured. Its eTap shifting logic is intuitive: you shift up on one side, down on the other. With AXS, you save yourself the hassle of cable routing the rear derailleur and can use the app to adjust the shifting behaviour to your requirements if you wish.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Series:

Apex

Application:

Gravel

Shifters & Derailleurs:

1x, 12-speed (wireless)

Brakes:

disc, hydraulic (flat mount)

Components:

Crank:

170.0 mm, 172.5 mm, 175.0 mm (40 teeth)

Cassette:

11-44

Rear Derailleur:

medium cage (11-44)

Compatibility:

• cassette compatible with Shimano Road

Features:

• components for an electronic 1x gravel drivetrain
• cassette for Shimano Road freehub
• thought out gear jumps with simultaneously high bandwidth with 11-44 teeth
• optimised for gravel riding (XPLR = Explore)
• rear derailleur with steel-mounted pulleys and a spring clutch
• easy personalisation with SRAM AXS
• simple and intuitive eTap shifting logic
• direct, precise shifting and secure chain hold
• quiet operation thanks to narrow, efficient Flattop™ chain
• shift/brake handles with textured shift paddles and rubber grips
• adjustable grip width
• Wide crankset with a lot of tyre clearance
• Wide chainline: 47.5 mm
• proven DUB technology

Contents:

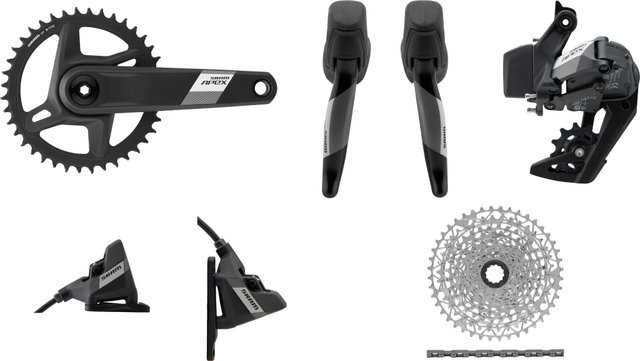

SRAM Apex 1 Wide XPLR AXS 1x12-speed 40 groupset, consisting of:

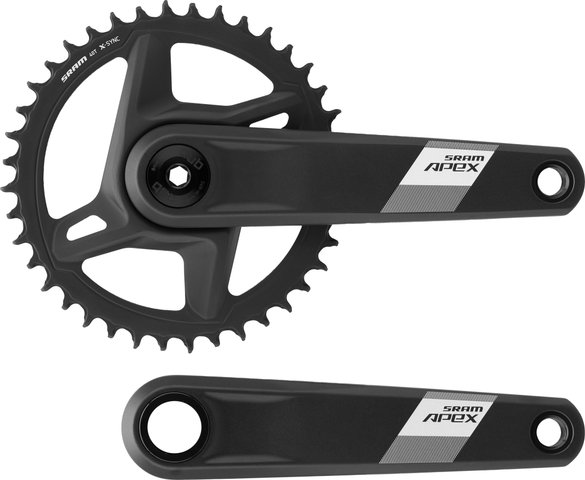

• 1 x SRAM Apex 1 Wide DUB 1x12-speed crankset, 40 teeth

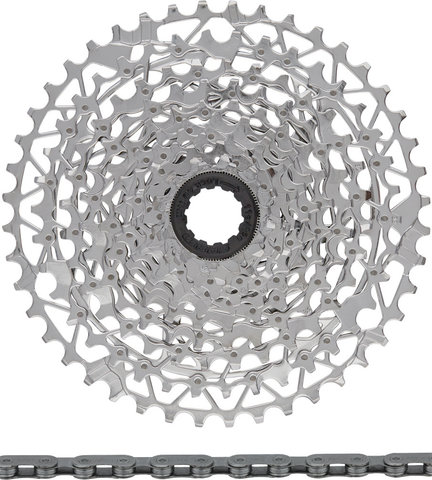

• 1 x SRAM PG-1231 cassette
• 1 x SRAM Apex 12-speed chain
• 1 x SRAM PowerLock master link

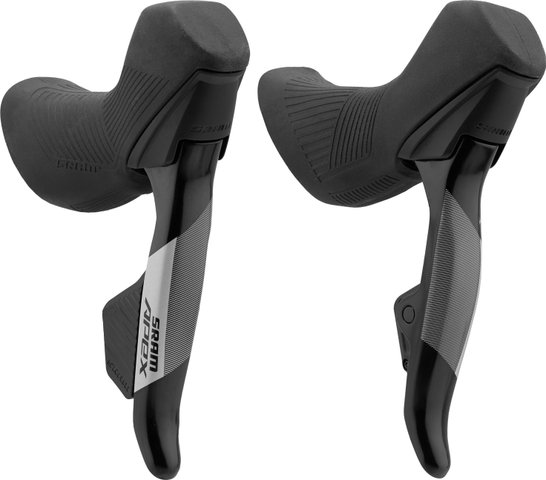

• 1 x pair SRAM Apex eTap AXS HRD shift/brake levers

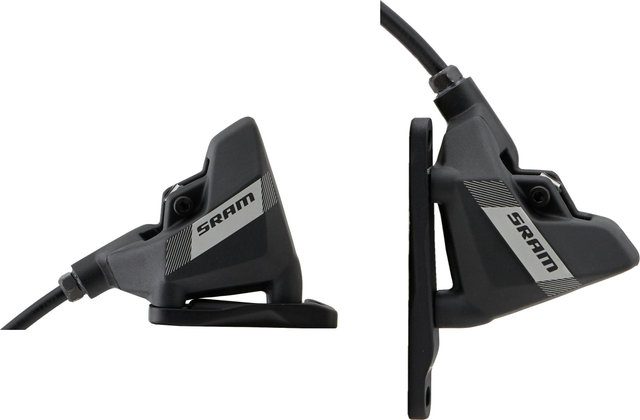

• 1 x pair SRAM Apex eTap AXS disc brakes (flat mount), filled and bled ready for installation
• 2 x pairs SRAM organic brake pads

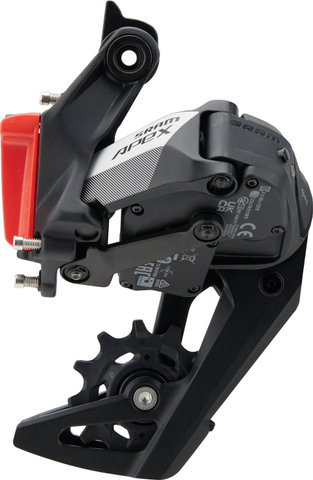

• 1 x SRAM Apex XPLR AXS rear derailleur

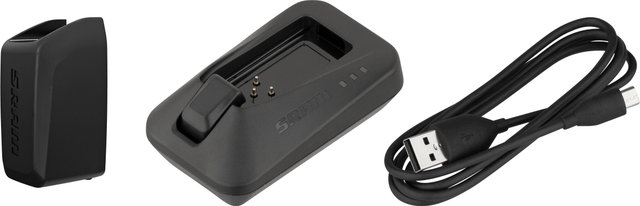

• 1 x SRAM eTap / AXS battery
• 1 x SRAM battery charger
• 2 x SRAM pad spacers
• 1 x SRAM brake hose, 1300 mm (front)
• 1 x SRAM brake hose, 2000 mm (rear)
• 2 x SRAM bleed block
• 1 x SRAM chain gap adjustment gauge
• 1 x SRAM battery cover

Order Together:

• DUB Road Wide bottom bracket
• brake rotors
• disc brake adapters

Optional accessories:
SRAM eTap AXS Wireless Blips Satellite Shifters
