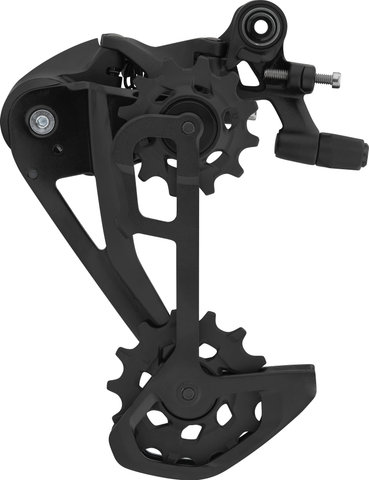

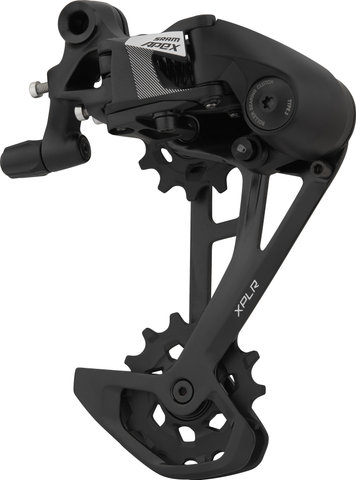

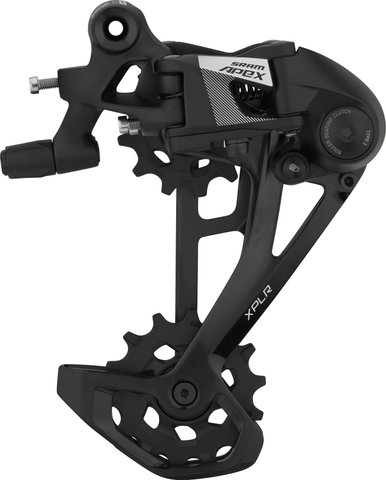

SRAM Apex XPLR 12-speed Rear Derailleur

The Apex XPLR rear derailleur from SRAM for a 1x12-speed mechanical drivetrain

The SRAM Apex rear derailleur from the XPLR gravel series is suitable for a 1x12-speed setup and is controlled mechanically. Thanks to the spring clutch, the chain retains optimum tension and shifts smoothly. The straight X-Horizon design prevents sudden shifting errors. Use the rear derailleur together with an XPLR cassette with up to 44 teeth and a 12-speed shifter from the Apex or Eagle series for drop and flat bar cockpits.

Specifications:

Series:

Apex XPLR

Application:

Gravel

Gearing:

12-speed

Mount:

standard

Cassette Teeth (max.):

44 tooth (mid)

Compatibility:

SRAM Road 12-speed

Compatibility - Chains:

SRAM Road 12-speed

Technical Information:

Derailleur Pulleys:

14-tooth

Outer Cage Material:

aluminium

Inner Cage Material:

aluminium

Other Materials:

steel

Compatibility:

• SRAM XPLR 12-speed cassette with 10-44 teeth
• SRAM XPLR 12-speed cassette with 11-44 teeth
• Apex 1x12-speed mechanical shifters
• Eagle 1x12-speed mechanical shifters
• SRAM Road chains in Flattop design

Features:

• mechanically controlled 12-speed rear derailleur for gravel use (XPLR = Explore)
• secure chain retention even off-road
• derailleur pulley with steel bearings
• chain management with spring clutch
• straight X-Horizon parallelogram design

Technology:

X-Horizon™
The parallelogram design of X-Horizon derailleurs limits movement along the horizontal axis, eliminating ghost shifting and reducing needed shifting force. The large offset of the upper shifting roller ensures a constant chain distance in every gear for faster and more precise shifting.

Manufacturer Number:

00.7518.177.000

Contents:

• 1 x SRAM Apex XPLR 12-speed rear derailleur
