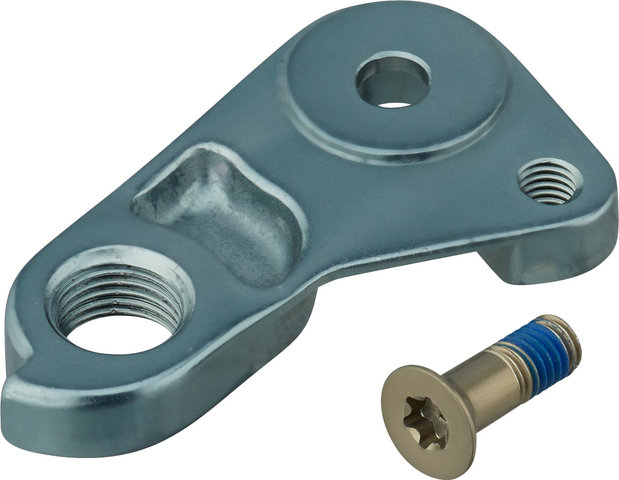

Scott Derailleur Hanger for Genius Aluminium 2015 - 2016

Rear derailleur hanger for Scott Genius frame with aluminium swing arm model year 2015-2016. Depending on the make of the drivetrain, a Direct Mount or a Non-Direct Mount derailleur hanger is fitted as standard.

Specifications:

Over Locknut Dimension:

12 x 142 mm, 10 x 135 mm

Mount:

Direct Mount, Non-Direct Mount

Models:

black / type 1:
Compatibility:

• Scott Genius710/910 2016
• Scott Genius720/920 2016
• Scott Genius730/930 2016
• Scott Genius740/940 2016
• Scott Genius710/910 2015
• Scott Genius720 2015
• Scott Genius730/930 2015
• Scott Genius740 2015

Mount:

Direct Mount

Over Locknut Dimension:

12 x 142 mm

Manufacturer Number:

235288

black / type 2:
Compatibility:

• Scott Genius710/910 2016
• Scott Genius720/920 2016
• Scott Genius730/930 2016
• Scott Genius740/940 2016
• Scott Genius710/910 2015
• Scott Genius720 2015
• Scott Genius730/930 2015
• Scott Genius740 2015

Mount:

non-direct mount

Over Locknut Dimension:

12 x 142 mm

Manufacturer Number:

219577

silver / type 3:
Compatibility:

• Scott Genius750/950 2016
• Scott Genius750/950 2015

Mount:

non-direct mount

Over Locknut Dimension:

10 x 135 mm

Manufacturer Number:

219575

Note:
Shimano Direct Mount:
Standard rear derailleurs from Shimano are connected to the frame/dropout with the B2 Body Plate (small movable mounting arm). Direct mount rear derailleurs no longer have this mount, and are connected directly to the designated frame/dropout. Current 10-/11-speed rear derailleurs from Shimano can be easily converted and mounted by removing the B2 body plate from a direct mount rear derailleur.

Contents:

• 1 x Scott derailleur hanger
