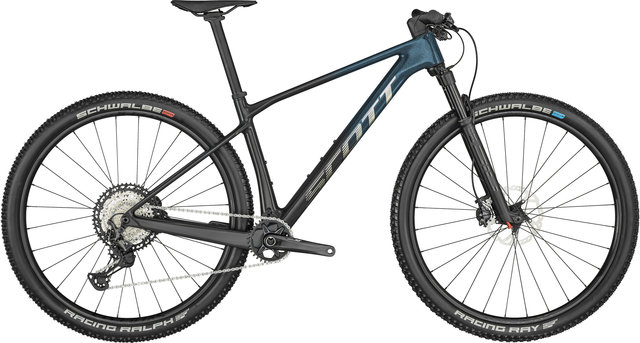

Scott Scale RC Team Carbon 29" Mountain Bike
The Scott Scale RC Team 29" carbon mountain bike for cross-country racing
The Scale RC Team from Scott is a carbon hardtail for cross-country enthusiasts, which comes with a RockShox SID SL suspension fork, 1x12-speed drivetrain and disc brakes from Shimano's XT series. If necessary, adjust the head tube angle by 0.6°. To do this, rotate the headset cups by 180°; it is not necessary to remove any cables from the cockpit. Thanks to the clever hollow design of the dropouts, weight has been saved at this point and you benefit from the clean look of the thru-axle. A clever detail is the flap at the bottom of the down tube, which allows cables in the bottom bracket area to be serviced without having to remove the bottom bracket.
Specifications:
- Application:
- Cross Country
- Wheel Size:
- 29"
- Travel:
- 100 mm
- Sizes:
- M, L, XL
- Frame Material:
- carbon (HMF)
Components:
- Frame:
- Scott Scale Carbon HMF, Advanced Shock & Standing Damping System, internal cable routing, 12 x 148 mm (Boost)
- Fork:
- RockShox SID SL RL Air, tapered, rebound adjust, lockout, 44 mm offset, 15 x 110 mm (Boost), with Maxle Stealth thru-axle
- Stem:
- Syncros XC 1.5, aluminium (7050), 31.8 mm, -12°
- Handlebars:
- Syncros Fraser 1.5 XC, aluminium (7050), triple-butted, flat bar, 8° backsweep
- Grips:
- Syncros Performance XC Lock-On
- Remote System:
- Scott RideLoc 2, 2 modes
- Headset:
- Acros ZS56/28.6 - ZS56/40 MTB, 0.6° head tube angle adjustment
- Seatpost:
- Syncros Duncan 2.0, 31.6 mm, 400 mm
- Saddle:
- Syncros Belcarra R 2.0, steel rails (CrMo)
- Crank:
- Shimano XT FC-M8120-1 Hollowtech II, 32 T, with Shimano SM-BB71-41A bottom bracket, 41 x 92 mm
- Pedals:
- none
- Brakes:
- Shimano XT M8100 Disc, with Shimano SM-RT76 6-bolt brake rotors, 180 mm (front) / 160 mm (rear)
- Shift Lever:
- Shimano XT SL-M8100-IR, Rapidfire Plus
- Rear Derailleur:
- Shimano XT RD-M8100-SGS, Shadow Plus, 12-speed
- Cassette:
- Shimano XT CS-M8100-12, 10-51 T, 12-speed
- Chain:
- Shimano CN-M7100, 12-speed
- Rims:
- Syncros Silverton 2.0 30 mm, Tubeless Ready
- Spokes:
- black, 305 mm
- Front Hub:
- Formula TD-711, 28 holes
- Rear Hub:
- Formula TD-148M, 28 holes, SRAM XD
- Front Tyre:
- Schwalbe Racing Ray Evolution ADDIX SpeedGrip Super Ground, 29 x 2.35" , 67 tpi, TL Easy
- Rear Tyre:
- Schwalbe Racing Ralph Evolution ADDIX SpeedGrip Super Ground, 29 x 2.35" , 67 tpi, TL Easy
Approved For:
- Weight Limit:
- 128 kg total weight
- Rotor Size (max.):
- 180 mm
Features:
- carbon cross-country hardtail with RockShox suspension fork and Shimano components from the XT series
- suspension fork controllable via handlebar remote
- head tube angle adjustable by 0.6° using turnable headset cups
- weight-optimised dropouts with a clean look thanks to hollow construction
- monocoque design, entire frame consists of only three parts welded together
- with flap on the down tube for easy access to cables and hoses without removing the bottom bracket
Geometry:
M:- Recommended Height:
- 170 - 180 cm
- Stack:
- 604.9 mm
- Reach:
- 442.3 mm
- Seat Tube Length:
- 440 mm
- Effective Top Tube Length:
- 600.2 mm
- Head Tube Length:
- 95 mm
- Chainstay Length:
- 425 mm
- Wheelbase:
- 1131.1 mm
- Bottom Bracket Height:
- 313 mm
- BB Drop:
- 62 mm
- Standover Height:
- 781 mm
- Seat Tube Angle:
- 75.4°
- Head Tube Angle:
- 67.9°
- Stem Length:
- 60 mm
- Handlebar Width:
- 740 mm
L:
- Recommended Height:
- 180 - 190 cm
- Stack:
- 618.9 mm
- Reach:
- 463.6 mm
- Seat Tube Length:
- 480 mm
- Effective Top Tube Length:
- 626 mm
- Head Tube Length:
- 110 mm
- Chainstay Length:
- 425 mm
- Wheelbase:
- 1158 mm
- Bottom Bracket Height:
- 313 mm
- BB Drop:
- 62 mm
- Standover Height:
- 800 mm
- Seat Tube Angle:
- 75.3°
- Head Tube Angle:
- 67.9°
- Stem Length:
- 70 mm
- Handlebar Width:
- 740 mm
XL:
- Recommended Height:
- 185 - 200 cm
- Stack:
- 628.1 mm
- Reach:
- 491.2 mm
- Seat Tube Length:
- 530 mm
- Effective Top Tube Length:
- 656.5 mm
- Head Tube Length:
- 120 mm
- Chainstay Length:
- 425 mm
- Wheelbase:
- 1189.4 mm
- Bottom Bracket Height:
- 313 mm
- BB Drop:
- 62 mm
- Standover Height:
- 835.1 mm
- Seat Tube Angle:
- 75.3°
- Head Tube Angle:
- 67.9°
- Stem Length:
- 80 mm
- Handlebar Width:
- 740 mm
Manufacturer Number:
290166Shipping Notice:
The shipment is sent pre-assembled by a forwarding agent.The delivery time is, depending on the workshop workload, 2 - 5 days in addition to the delivery time shown in the online shop.
For individual consultation, please contact our customer service team.
Contents:
- 1 x Scott Scale RC Team Carbon 29" mountain bike
