Shimano 105 STI ST-R7120 2-/12-speed Shift/Brake Lever - black/2-speed

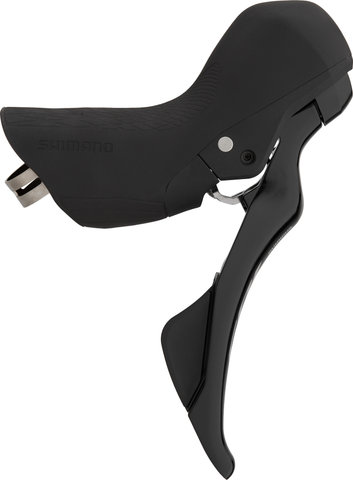

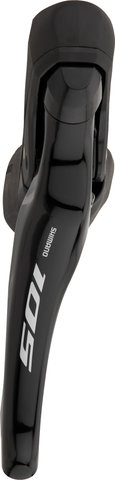

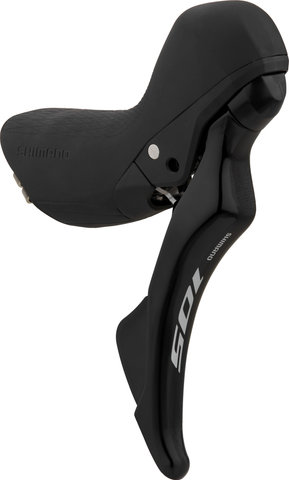

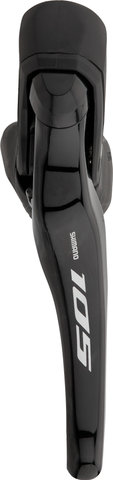

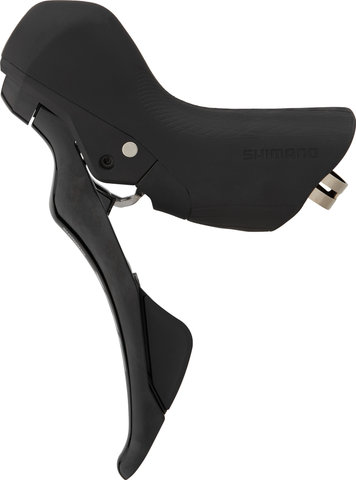

Shimano 105 STI ST-R7120 2-/12-speed Shift/Brake Lever

Item number: 92415

The Shimano 105 ST-R7120 2x12-speed STI for ergonomic shifting and braking


The ST-R7120 from the Shimano 105 R7100 road bike groupset is a shift/brake lever for hydraulic braking and mechanical shifting in the 2x12-speed system. It impresses with its smooth shifting and strong braking performance. Its revised ergonomic design provides excellent grip comfort and accommodates different hand sizes. The distance between the handlebars and the lever has been reduced, which increases brake control and makes shifting easier. The reach of the lever can also be adjusted with the help of a hex key. ST-R7120 combines a plastic lever body with a brake lever made of lightweight aluminium and therefore weighs only about 200 grams more per pair than its electronic counterpart. A corrosion-resistant cable with Optislick coating is included.

Specifications:

Series:
105 R7100
Application:
105
Gearing:
2x, 12-speed
Shifting System:
mechanical
Brake Type:
hydraulic

Technical Information:

Brake Lever Material:
aluminium
Lever Body Material:
composite
Hose:
SM-BH90-JK-SSR (not included)
Actuation:
mineral oil
Mount:
clamp (closed)
Reach Adjust:
bolt
Adjustment Options:
Reach Adjust

Compatibility:

Clamp Diameter:
23.8 - 24.2 mm
Front Derailleur:
FD-R7100, FD-RX820
Crank:
FC-R7100, FC-R9200, FC-R9200-P, FC-R8100, FC-R8100-P, FC-RS520, FC-RX820-2, FC-RX610-2
Rear Derailleur:
RD-R7100, RD-RX820
Cassette:
CS-R7101-12, CS-HG710-12, CS-R8101-12
Chain:
CN-M7100, CN-M8100, CN-M9100, CN-M6100
Brake Caliper:
BR-R7170 (recommended), BR-R9270, BR-R8170, BR-RX820, BR-RX820-LE, BR-RX400
Additional Brake Lever:
BL-RX812

Features:

  • mechanical-hydraulic shift/brake lever (2x or 12-speed) for road bike use
  • revised lever design for more control with different riding styles
  • smooth gear changes and excellent braking performance with optimised ergonomics
  • lever position and lever body design take into account different hand shapes
  • wing-like shape for a shorter lever access curve: better accessibility
  • reach adjustment (13.3 mm) with 2.5 mm hex tool
  • Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
  • only 612 grams per pair
  • funnel venting with M7 funnel (TL-BR002)
  • lacquered brake lever

Technology:

STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).

Models:

2-speed
Mount:
left
Manufacturer Number:
ISTR7120LI

12-speed
Mount:
right
Manufacturer Number:
ISTR7120RBI

Contents:

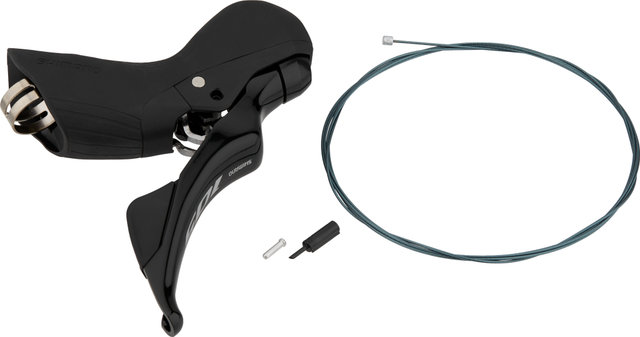

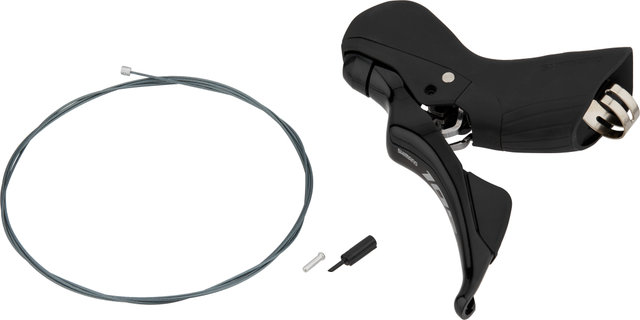

  • 1 x Shimano 105 ST-R7120 shift / brake lever
  • 1 x Shimano shifter cables

Order Together:



  • 100 day return period
  • Online since 1998

Models:

  • black/2-speed, in stock
    117.71€
  • black/12-speed, in stock
    128.96€
