Shimano Anti-Rotation Washers for 5-/ 7-/8-/11-speed Internally Geared Hubs

Item number: 24207
Anti-Rotation Washers for 5-/ 7-/8-/11-speed Internally Geared Hubs - blue/8R
Anti-Rotation Washers for 5-/ 7-/8-/11-speed Internally Geared Hubs - white/6L
Anti-Rotation Washers for 5-/ 7-/8-/11-speed Internally Geared Hubs - yellow/5R
Anti-Rotation Washers for 5-/ 7-/8-/11-speed Internally Geared Hubs - yellow/5R
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.91 / 5.00

Shimano Anti-Rotation Washers for 5-/ 7-/8-/11-speed internally geared hubs for different dropouts


Shimano anti-rotation washers for internally geared hubs are required to install 5-, 7-, 8- and 11-speed internally geared hubs and serve as anti-rotation protection. There are different versions depending on the frame dropouts (horizontal, semi-horizontal, vertical) and mounting position (left, right). The different colours help to differentiate the washers.

Guidelines for Replacing E-bike Components:


Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Models:


There are 5 types of dropouts: horizontal 0°, semi-horizontal with 20° or 38° opening angle and vertical with 90° or 60° opening angle. For each model, " Use" indicates the type of dropout where the washer is required.

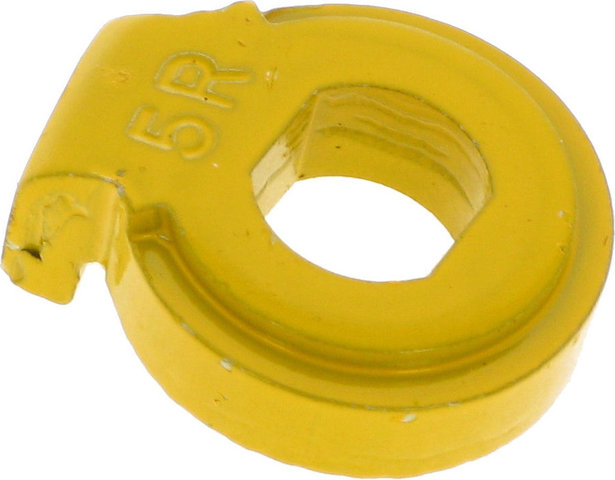

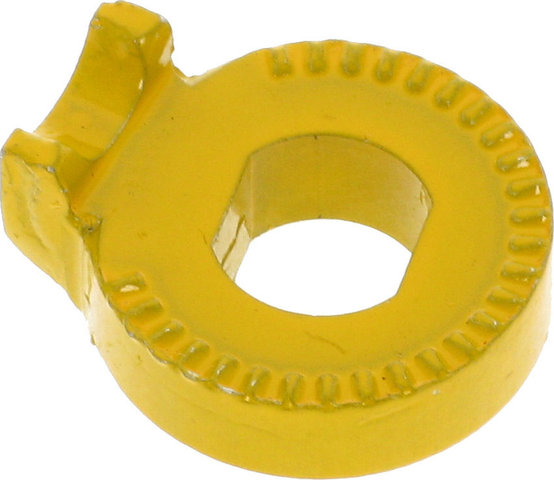

5R / yellow:
Use: horizontal 0°, semi-horizontal 20°
Position: right
Compatibility: SG-8R20, SG-4R40, SG-5R30, SG-5R30-BT, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001
Manufacturer Number: Y-33Z20500

5L / brown:
Use: horizontal 0°, semi-horizontal 20°
Position: left
Compatibility: SG-8R20, SG-4R40, SG-5R30, SG-5R30-BT, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001
Manufacturer Number: Y-33M39510

6R / silver:
Use: horizontal 0°
Position: right
Compatibility: SG-8R20, SG-4R40, SG-5R30, SG-5R30-BT, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001
Manufacturer Number: Y-33M39600

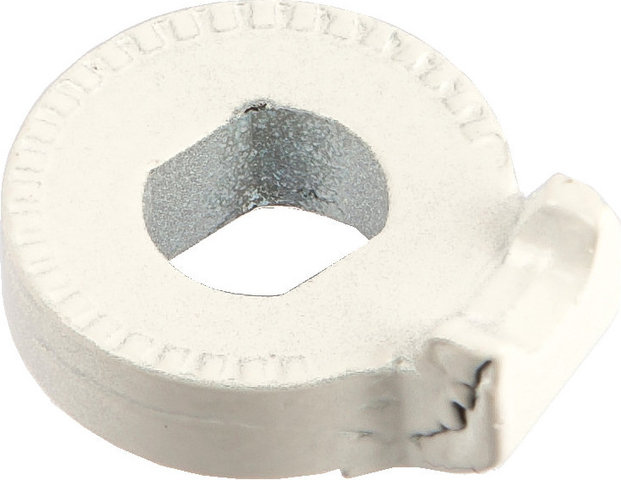

6L / white:
Use: horizontal 0°
Position: left
Compatibility: SG-8R20, SG-4R40, SG-5R30, SG-5R30-BT, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001
Manufacturer Number: Y-33M39610

7R / black:
Use: semi-horizontal 20°, semi-horizontal 38°
Position: right
Compatibility: SG-8R20, SG-4R40, SG-5R30, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001
Manufacturer Number: Y-33M39700

7L / grey:
Use: semi-horizontal 20°, semi-horizontal 38°
Position: left
Compatibility: SG-8R20, SG-4R40, SG-5R30, SG-C6060, SG-C6011, SG-C6001, SG-C6061, SG-C7000-5, SG-C7002-5CD, SG-S7001-8, SG-C3001
Manufacturer Number: Y-33M39710

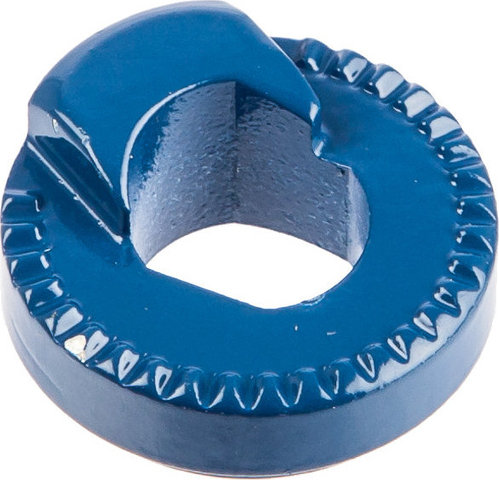

8R / blue:
Use: vertical 90°, vertical 60°
Position: right
Compatibility: SG-8R20, SG-5R30, SG-C6011, SG-C6001, SG-C7000-5, SG-C7002-5CD, SG-S7051-8, SG-S7051-11, SG-C6061, SG-S7001-8, SG-S7001-11
Manufacturer Number: Y-34R85010

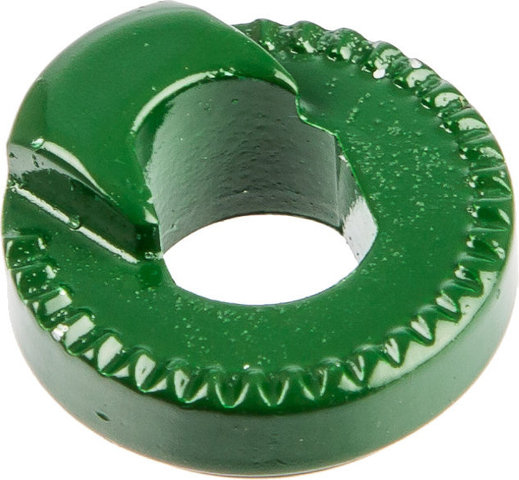

8L / green:
Use: vertical 90°, vertical 60°
Position: left
Compatibility: SG-8R20, SG-5R30, SG-C6011, SG-C6001, SG-C7000-5, SG-C7002-5CD, SG-S7051-8, SG-S7051-11, SG-C6061, SG-S7001-8, SG-S7001-11
Manufacturer Number: Y-34R85000

Contents:


- 1 x Shimano anti-rotation washer


Models:

  • blue/8R, in stock
    4.19€
  • brown/5L, in stock
    1.67€
  • yellow/5R, in stock
    1.67€
  • grey/7L, in stock
    1.67€
  • green/8L, in stock
    4.19€
  • black/7R, in stock
    1.67€
  • silver/6R, in stock
    1.67€
  • white/6L, in stock
    1.67€
