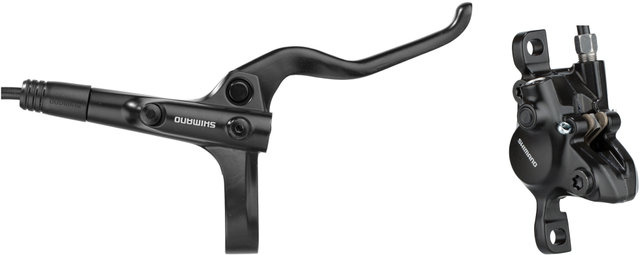

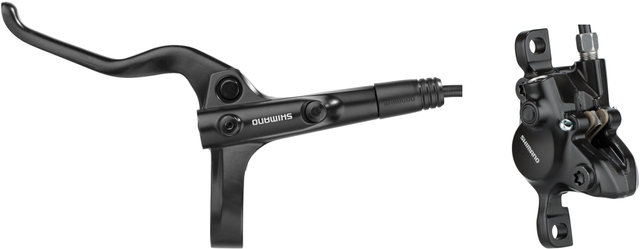

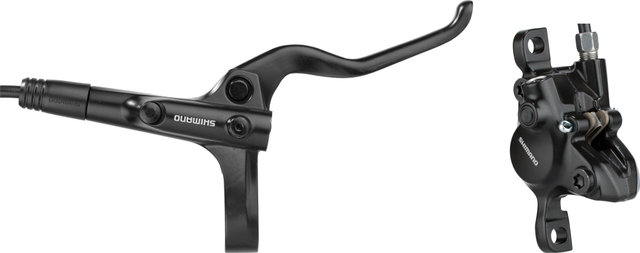

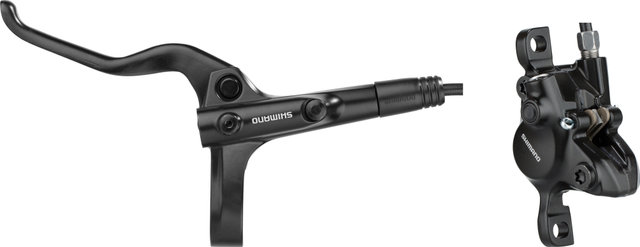

Shimano BR-MT200 + BL-MT201 Disc Brake

Shimano BR-MT200 + BL-MT201 disc brake - reliable, quiet braking performance

The Shimano BR-MT200 + BL-MT201 disc brake produces a braking performance adapted to the needs of MTB beginners. However, it is also suitable for use on touring or city bikes. The two 2 resin piston brake calipers work reliably and quietly, and can be easily bled via One-Way Bleeding. The encoder side has two 3-finger brake levers whose grip width can be adjusted with a tool. This means that even smaller hands can find a comfortable setting for the brake handles.

Specifications:

Application:

Cross Country, City & Touring

Type:

hydraulic, 2 pistons

Actuation:

mineral oil

Hose:

SM-BH59-JK-SS

Hose Length (Front/Rear):

1000 mm/1700 mm

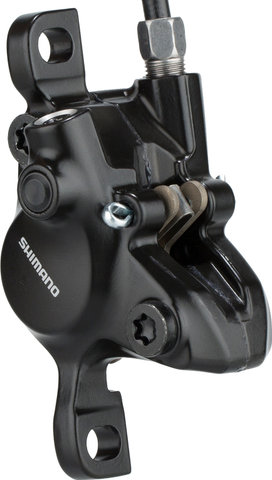

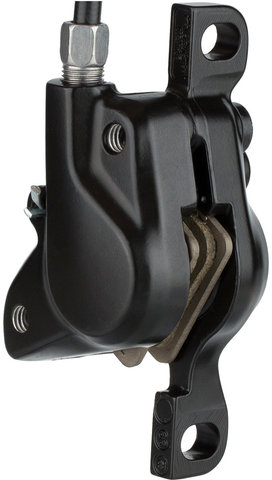

Technical Information - Caliper:

Caliper Mount:

post mount

Pads:

resin

Design:

2-piece

Calliper Material:

aluminium

Piston Material:

resin

Hose Connection:

straight

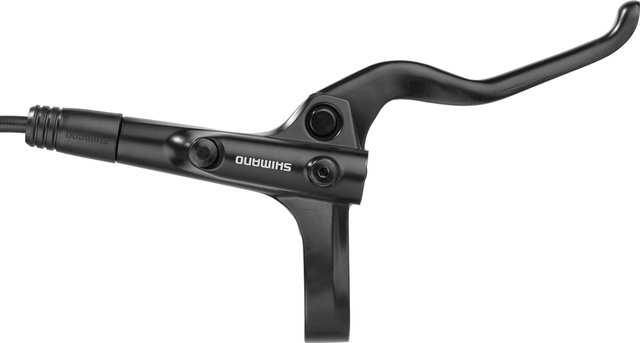

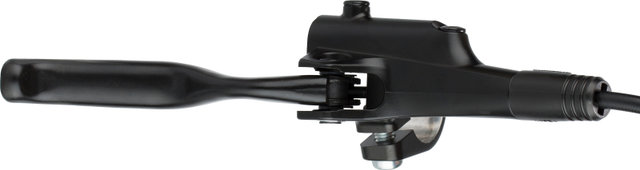

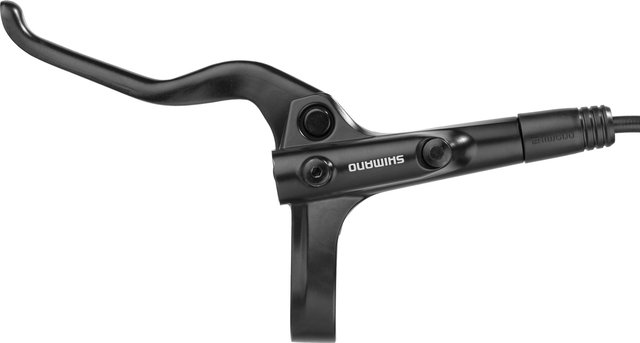

Technical Information - Lever:

Lever Length:

3-finger

Adjustment Options:

reach adjust (with tools)

Mount:

clamp (closed)

Design:

right (side-specific), left (side-specific)

Brake Lever Material:

aluminium

Brake Lever Housing Material:

aluminium

Hose Connection:

straight

Compatibility:

Mounting Position:

• front brake caliper: brake lever left
• rear brake caliper: brake lever right

Brake Rotor:

160 mm, 180 mm (recommended: SM-RT10, SM-RT26)

Pads:

organic; with wide pad shape; standard brake pads (no Ice-Tech)

Features:

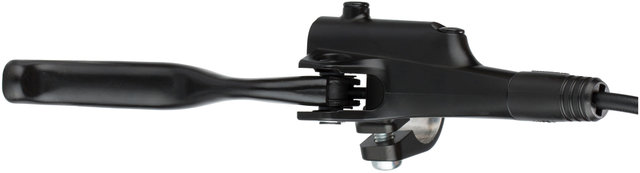

Brake Lever:

• versatile design suitable for a wide range of bike types
• braking power adapted to MTB beginners
• small hands can easily reach lever
• funnel venting with M5 funnel
• anodised lever, painted body
• steel clamp bolt

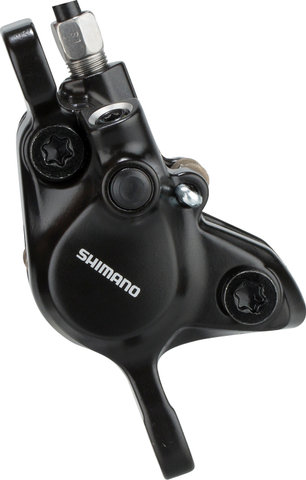

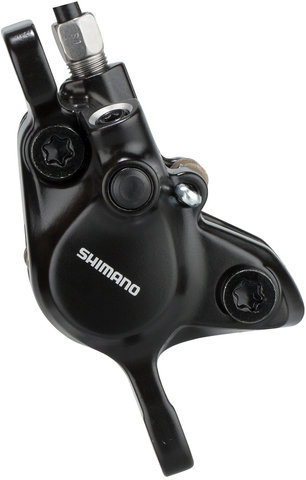

Brake Caliper:

• versatile design suitable for a wide range of bike types
• braking power adapted to MTB beginners
• reliable, quieter braking performance
• easy, fast and clean installation
• reduced rattling noises of the brake hoses
• 2 pistons made of synthetic resin
• painted
• steel bolts (5 mm)

Technology:

One-Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Numbers:

Front:

E-MT201KLFPRA100

Rear:

E-MT201KRRXRA170

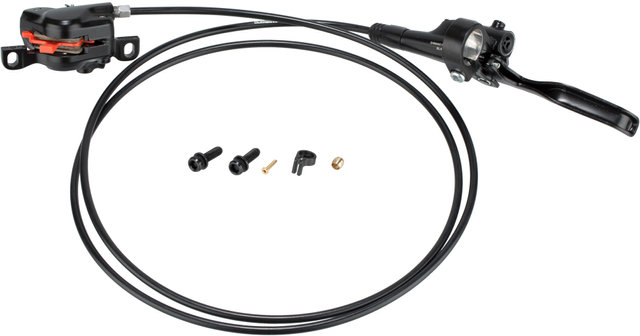

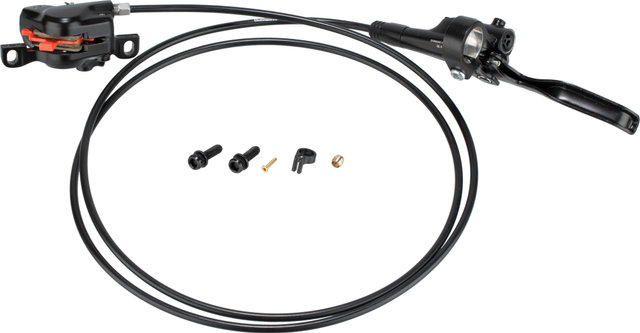

Contents:

• 1 x Shimano BR-MT200 + BL-MT201 disc brake, front or rear
• 1 x Shimano SM-BH59-JK-SS brake hose, 1000 mm (front) or 1700 mm (rear)
• 1 x pair Shimano brake pads
• 1 x inserts
• 1 x olives
• 2 x calliper bolts
• 1 x snap ring
• ready to mount (filled & bled)

Order Together:

• Disc Brake Adapter
• TL-BH61 tool for insert installation
