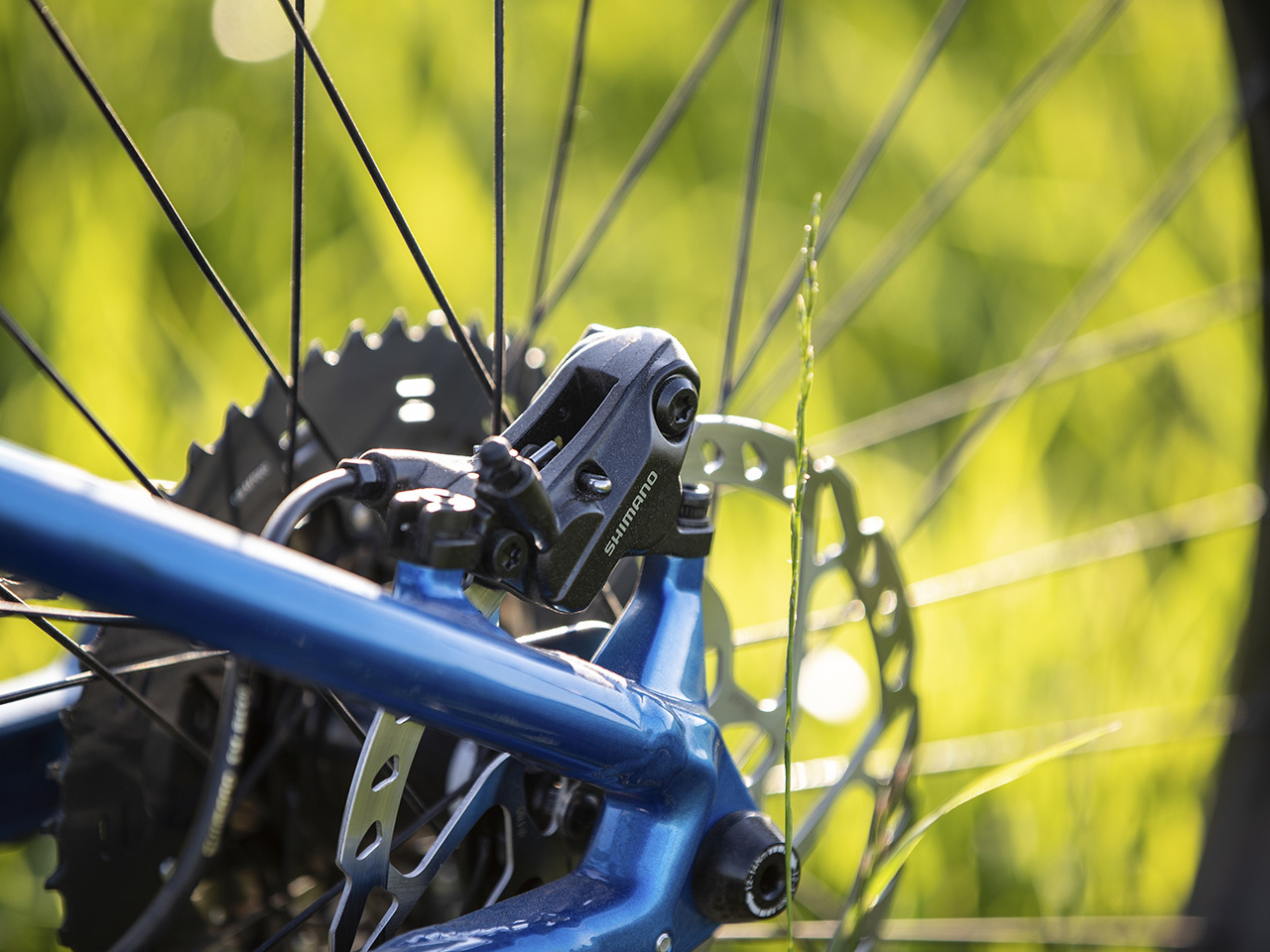

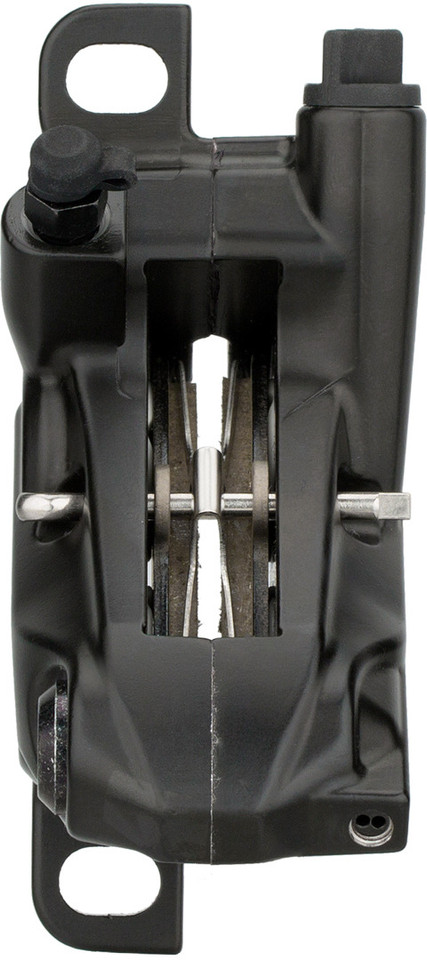

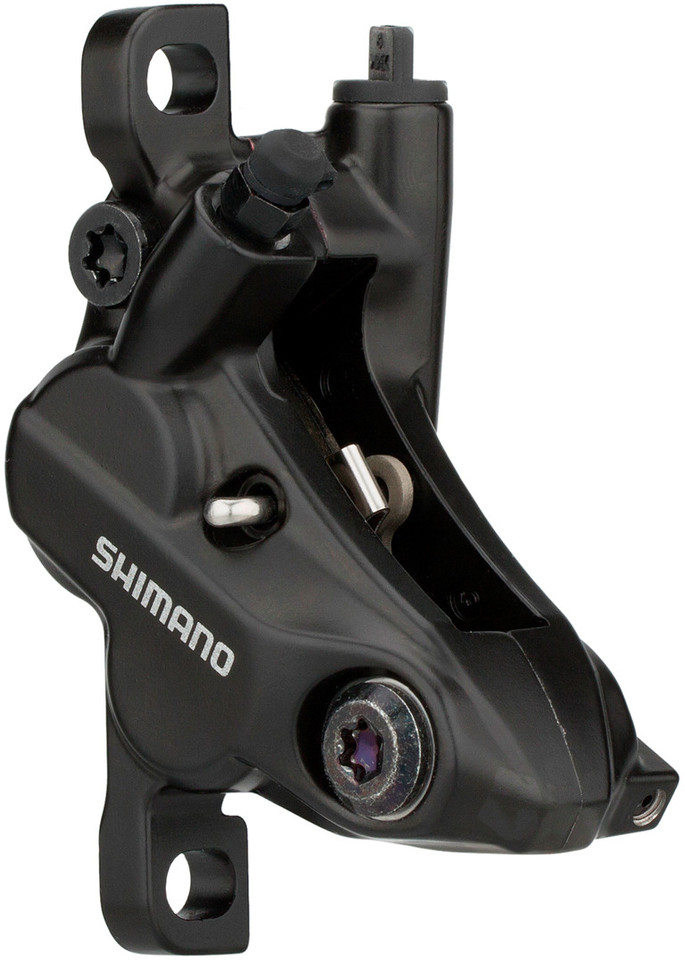

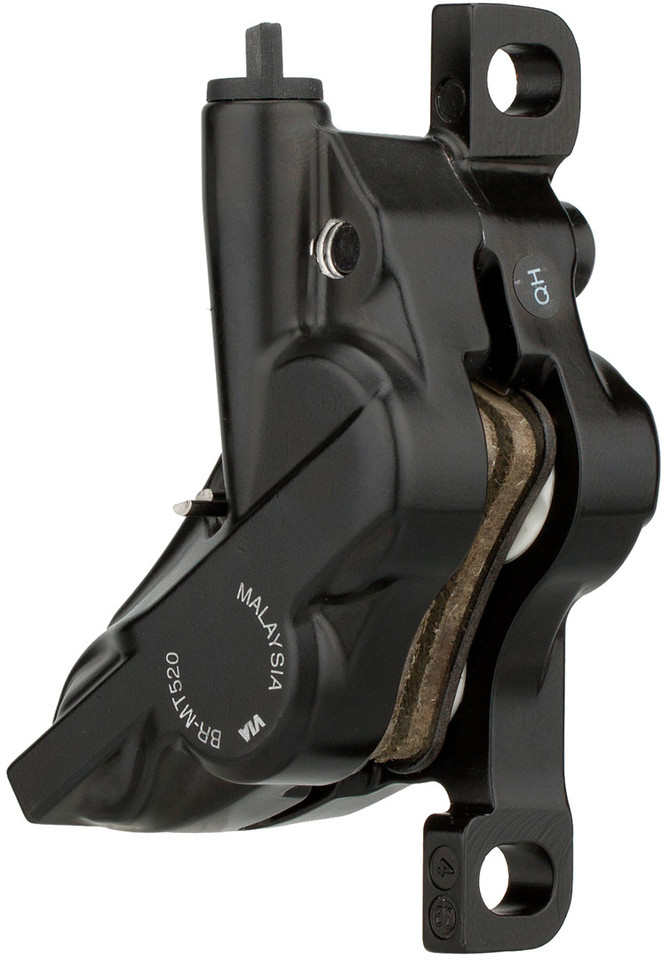

Shimano BR-MT520 brake calliper - groupless 4-piston brake

The Shimano BR-MT520 brake calliper has four ceramic pistons that provide strong braking power on the trail. Its reliability increases the riding pleasure and promotes the rider's self-confidence. In addition, this groupless brake calliper can be easily maintained with One-Way Bleeding. BR-MT520 is made of painted aluminium, can be mounted front or rear and is supplied with organic brake pads and steel bolts.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro

Type:

hydraulic, 4 pistons

Actuation:

mineral oil

Hose:

SM-BH90-SS (not included)

Technical Information:

Mount:

post mount

Pads:

resin

Design:

2-piece

Calliper Material:

Aluminium

Piston Material:

Ceramic

Hose Connection:

straight

Compatibility:

Mounting Position:

front or rear wheel

Brake Rotor:

140 mm, 160 mm, 180 mm, 203 mm, 220 mm (recommended: BL-MT501

E-Bike:

STEPS E8080, E7000

Features:

• effective braking performance ensures reliable handling and more fun riding
• opposite ceramic pistons with two piston diameters offer a wider contact area
• rapid initial contact of the pad and controlled modulation of the braking force
• pad and piston thermally insulated
• approved for use with transport and cargo bikes
• painted
• steel bolts (5 mm)
• Shimano logo

Technology:

One Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Number:

E-BRMT520MPRXL

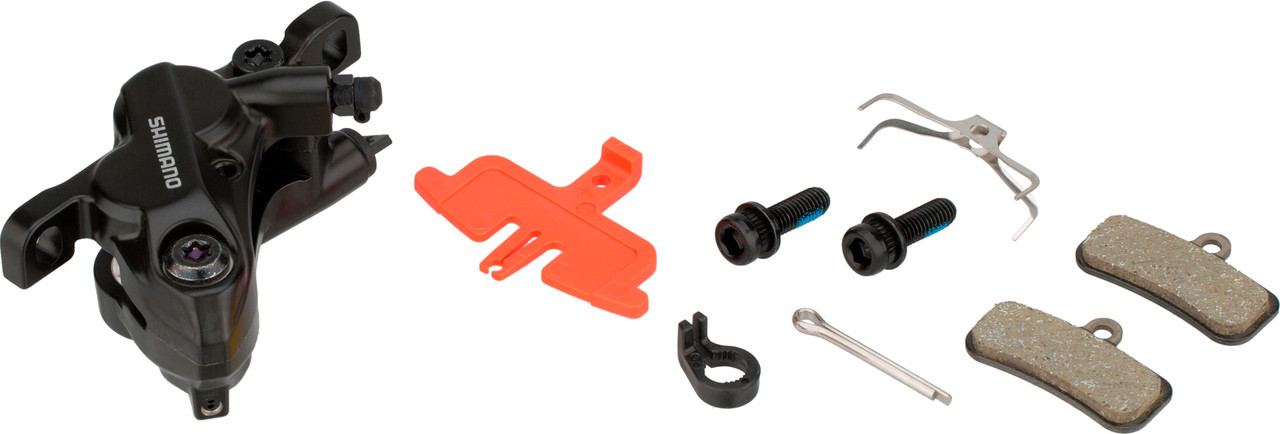

Contents:

• 1 x Shimano BR-MT520 brake calliper
• 1 x pair Shimano brake pads with spring and split pin
• 2 x calliper bolts
• 1 x snap ring

Order Together:

• Adapter for PM non-direct mount and IS mount

Optional Accessories:

• D02S Metal Pads
