Shimano CS-S500 Sprocket for Alfine

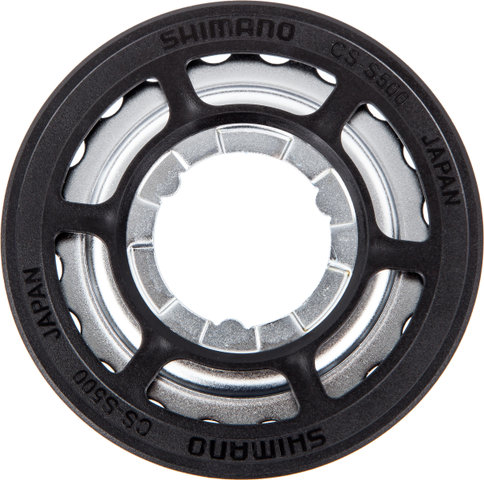

Shimano CS-S500 sprocket for Alfine - with integrated chain guard

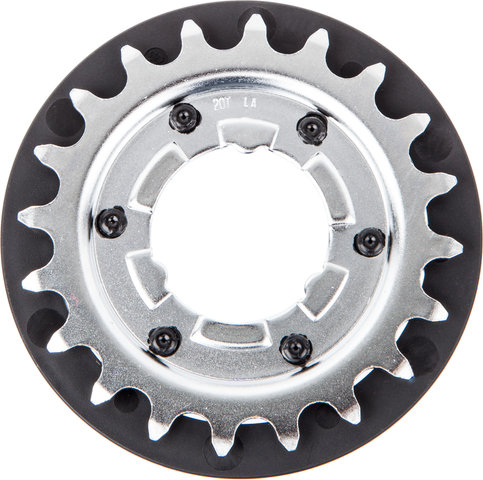

The Shimano CS-S500 sprocket is an accessory for Alfine 8-speed and 11-speed internally geared hubs when used in combination with vertical dropouts, the CT-S500 chain tensioner and the FC-S501 crank with double chain guard. It can also be used on certain e-bike drivetrains with internally geared hubs. The sprocket is available with 18 and 20 teeth and comes with a special chain guard ring. It is made of steel and is 2 mm thick. Its optimised tooth profile prevents the chain from falling off.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

City & Touring

Tooth Count:

18, 20

Sprocket Material:

steel

Technical Information:

Thickness:

2 mm

Compatibility:

Alfine 11-speed / 8-speed:

Type:

disc brake, V-Brake

Dropouts:

vertical, with derailleur hanger

Chain Tensioner:

CT-S500

Crank:

Alfine FC-S501 crankset with double chain guard

Chain:

HG 9-speed extra narrow (CN-E6070, CN-HG93, CN-HG53)

Nexus 8-speed / 7-speed:

Type:

disc brakes

Dropouts:

vertical, with derailleur hanger

Chain Tensioner:

CT-S500

Crank:

Alfine FC-S501 crankset with double chain guard

Chain:

HG 9-speed extra narrow (CN-E6070, CN-HG93, CN-HG53)

Nexus 8-speed / 7-speed / 3-speed:

Type:

roll brake, V-Brake

Dropouts:

vertical, with derailleur hanger

Chain Tensioner:

CT-S500 (except 3-speed)

Crank:

Alfine FC-S501 crankset with double chain guard (no chain guard on the right)

Chain:

HG 9-speed extra narrow (CN-E6070, CN-HG93, CN-HG53)

Nexus 3D:

Type:

disc brake, V-Brake

Dropouts:

vertical, with derailleur hanger

Chain Tensioner:

CT-S500

Crank:

Alfine FC-S501 crankset with double chain guard

Chain:

HG 9-speed extra narrow (CN-E6070, CN-HG93, CN-HG53)

E6100 / E6180:
Gearing:

• Di2 internally geared hub, 11-speed, 8-speed
• mechanical internally geared hub Alfine 11-speed, 8-speed
• mechanical internally geared hub Nexus 8-speed

Chainring:

SM-CRE61

Chain guard:

double

Chain Tensioner:

CT-S500

Chain:

9-speed

E6000:
Gearing:

• Di2 internally geared hub, 11-speed, 8-speed
• mechanical internally geared hub Alfine 11-speed, 8-speed
• mechanical internally geared hub Nexus 8-speed

Chainring:

SM-CRE60

Chain guard:

double

Chain Tensioner:

CT-S500

Chain:

9-speed

E5000 / E5080:
Gearing:

• Di2 internally geared hub, 11-speed, 8-speed
• mechanical internally geared hub Alfine 11-speed, 8-speed
• mechanical internally geared hub Nexus 8-speed

Chainring:

SM-CRE50

Chain guard:

double

Chain Tensioner:

CT-S500

Chain:

9-speed

Features:

• special single sprocket technology with chain guard
• optimised tooth profile prevents the chain from falling off
• chromed

Manufacturer Numbers:

18 tooth:

I-CSS50018

20 tooth:

I-CSS50020

Contents:

• 1 x Shimano CS-S500 sprocket w/ chain guard
