Shimano Dura-Ace Carbon PD-R9100E1 Clipless Pedals

Shimano Dura-Ace PD-R9100E1 Clipless Pedals - With 4 mm longer axle

The Shimano Dura-Ace PD-R9100E1 pedals have a 4 mm longer axle than the PD-R9100 and thus create a greater distance to the crank. In terms of weight and stiffness, they are in no way inferior to the sister model thanks to the carbon body. The SPD-SL clip-in mechanism can be combined with different cleats to vary freedom of movement.

Specifications:

Application:

Road, Triathlon & Time Trial

Type:

clipless pedals

Pedal System:

SPD-SL

Cleat Mount:

3-bolt

Technical Information:

Body Material:

carbon

Axle Material:

steel (nickel-CrMo)

Height:

14.6 mm

Float:

2° (6° or 0° optional)

Release Angle:

35°

Recommended Cleats:

SM-SH10, SM-SH11, SM-SH12

Pedal Centre to Crank Arm Distance:

56 mm

Features:

• series: Dura-Ace R9100
• optimised ratio of weight to stiffness
• injection moulded pedal body made of carbon composite material
• extra wide footprint for stability and power transmission
• greater bearing spacing for better load distribution
• one-sided binding mechanism
• sealed mechanism
• tension adjust
• cover made of special polished stainless steel
• hollow cleat bolts
• CFRP finish
• optional SM-PD63 reflectors
• 4 mm longer axle than PD-R9100

Manufacturer Number:

I-PDR9100E1

Contents:

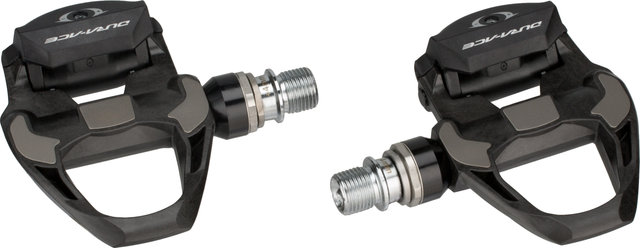

• 1 x pair Shimano Dura-Ace PD-R9100E1 clipless pedals

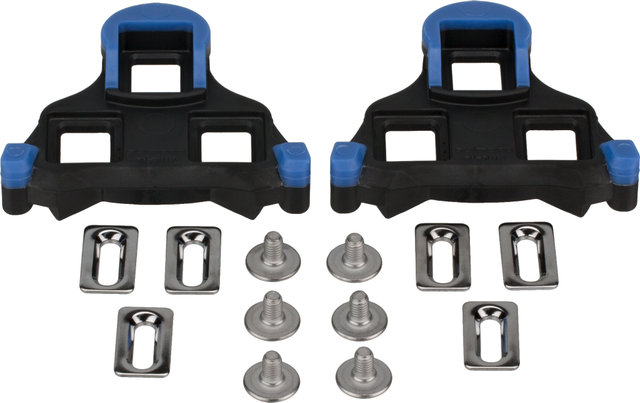

• 1 x pair Shimano SM-SH12 pedal cleats

• carbon: 228 g
