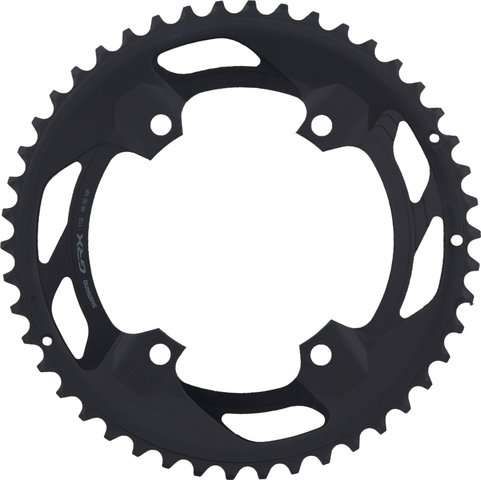

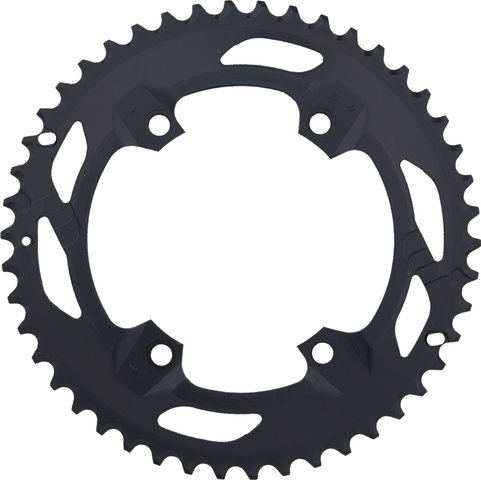

Shimano GRX FC-RX600-11 11-speed Chainring

The Shimano GRX 11-speed Chainring for FC-RX600-11 Cranks

This Shimano 11-speed chainring is a spare part for the GRX FC-RX600-11 2-speed gravel crank. It is made of aluminium and has an asymmetrical 4-arm bolt circle diameter of 110 mm for the large chainring and 80 mm for the small chainring. The off-centre chainring bolt holes on the large chainring are characteristic. The 30-tooth version is also compatible with the GRX FC-RX600-10 2x10-speed crank.

Specifications:

Application:

Gravel, Cyclocross, City & Touring

Mount:

110/80 mm bolt circle diameter, 4-arm asymmetrical

Teeth:

30 t, 46 t

Gearing:

2x11-speed, 2x10-speed (30 Z only)

Technical Information:

Combinations:

30-46 t

Material:

aluminium

Compatibility:

• GRX FC-RX600-11
• 30 t also compatible with the FC-RX600-10

Features:

• anodised
• large chainring: off-centre bolt holes

Models:

30 tooth:

Type:

NF

Manufacturer Number:

Y-0K630000

46 tooth:

Type:

NF

Manufacturer Number:

Y-0K698010

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano GRX FC-RX600-11 chainring
