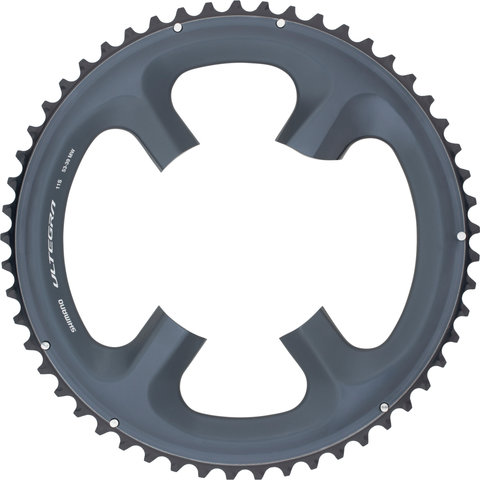

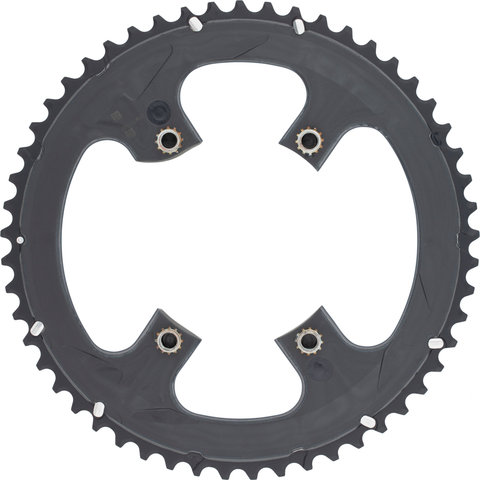

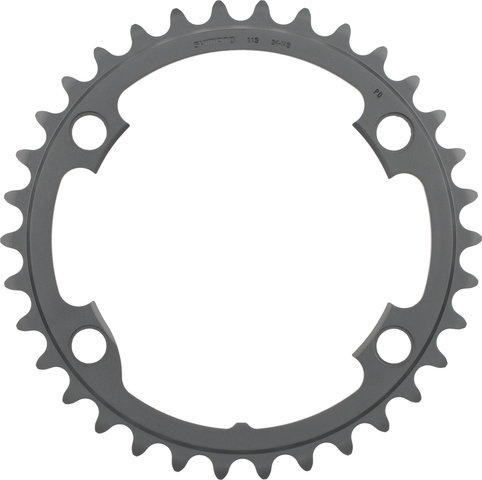

Shimano Ultegra FC-R8000 11-speed Chainring

The Shimano Ultegra 11-speed chainring for the FC-R8000 crankset

The Shimano Ultegra FC-R8000 11-speed chainring contributes together with the other drivetrain components to a smooth and fast shifting process. It is asymmetrical, has a bolt circle diameter of 110 mm and is made of aluminium or an aluminium-carbon composite. The large chainrings (except 46 t) are hollow (Hollowglide technology) to save weight.

Specifications:

Application: Road, Cyclocross
Mount: 110 mm pitch circle, 4-arm asymmetrical
Teeth: 34 t, 36 t, 39 t, 46 t, 50 t, 52 t, 53 t
Gearing: 2x11-speed

Technical Information:

Combinations: 34-50 t, 36-46 t, 36-52 t, 39-53 t
Material: aluminium (34 t to 46 t), aluminium/carbon (CFRP, 50 t to 53 t)

Compatibility:

- Ultegra FC-R8000

Features:

- anodised

Technology:

Hollowglide
The large chainrings of Dura Ace and Ultegra have a hollow profile. This not only reduces weight, but also increases stiffness. The shifting process is faster and even more precise.

Models:

34 tooth:
- Type: MS
- Manufacturer Part Number: Y-1W834000

36 tooth:
- Type: MT
- Manufacturer Part Number: Y-1W836000

39 tooth:
- Type: MW
- Manufacturer Part Number: Y-1W839000

46 tooth:
- Type: MT
- Manufacturer Part Number: Y-1W898010

50 tooth:
- Type: MS
- Manufacturer Part Number: Y-1W898020

52 tooth:
- Type: MT
- Manufacturer Part Number: Y-1W898030

53 tooth:
- Type: MW
- Manufacturer Part Number: Y-1W898040

Note to Type Designation:

The type designations (with one or two letters) indicate that the chainrings can be combined with each other. Since the large rings have specially shaped teeth and shifting aids that make it easier for the chain to climb, full shifting performance is only guaranteed with matching small rings - and vice versa. A chainring of type XY should therefore only be ridden with a chainring of type XY. The same applies to all other types.

Contents:

- 1 x Shimano Ultegra FC-R8000 chainring
