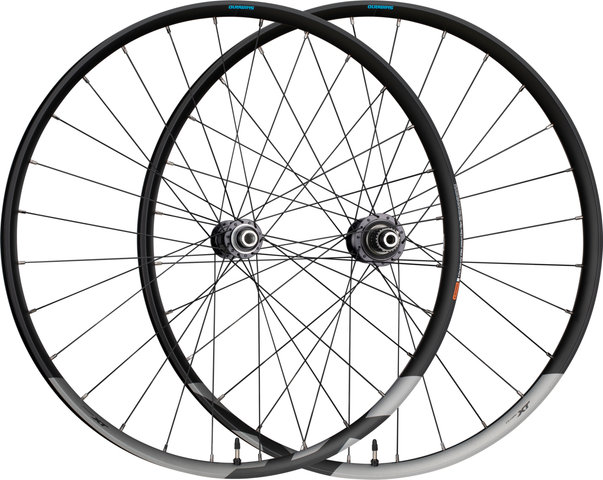

Shimano WH-M8120-TL-B XT Center Lock Disc 27.5" Wheelset

The WH-M8120 XT wheelset by Shimano - meets the highest demands

The Shimano XT WH-M8120 27.5" wheelset is specially designed for enduro and trail riding. It has a tubeless-compatible rim with a comfortable 30 mm inner width that will stand up to the toughest trails. The wheels are spoked with 28 J-bend spokes, which ensures robustness without increasing the weight too much.

Specifications:

Application:

Enduro, All Mountain

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc (Boost)

Wheel Standard:

Boost

Tubeless System:

TL/UST

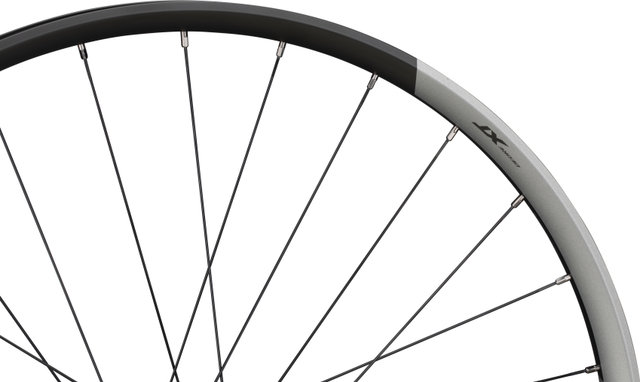

Technical Information - Rim:

Type:

offset

Rim Flange:

with hook

Dimensions (ETRTO):

30-584

Inner Width:

30 mm

Outer Width:

34.7 mm

Depth:

19.8 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Aluminium

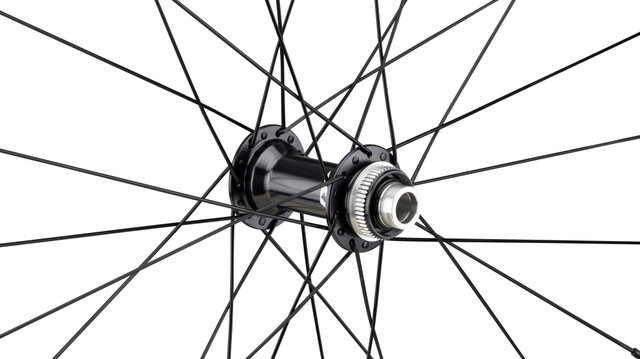

Technical Information - Front Hub:

Over Locknut Dimension:

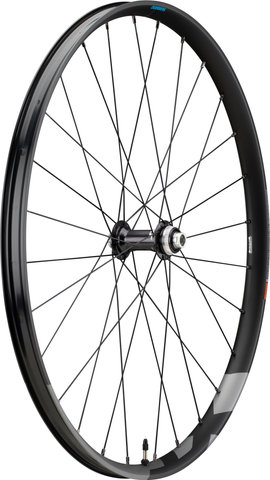

15 x 110 mm thru-axle

Bearings:

cup & cone

Body Material:

Aluminium

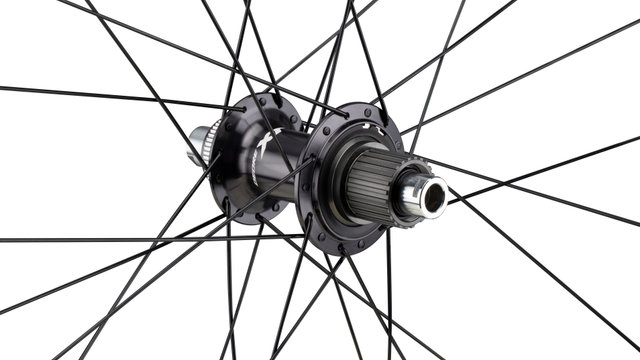

Technical Information - Rear Hub:

Over Locknut Dimension:

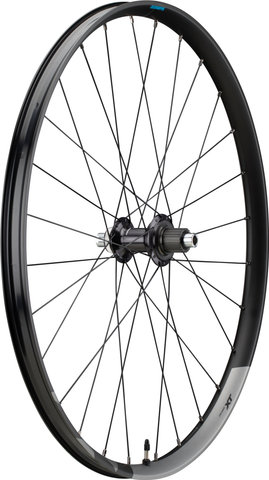

12 x 148 mm thru-axle

Bearings:

cup & cone

Body Material:

Aluminium

Freehub Body Material:

Aluminium

Freehub Body:

Direct Engagement (Ratchet), Quick Engagement (max. 9°)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

J-bend / double butted (2.0-1.8-2.0)

Spoke Size:

274 mm (front), 269.5 mm/267 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Material:

Aluminium

Features:

• series: Deore XT M8100
• reliable cornering thanks to 15 mm E-Thru at the front and 12 mm at the rear
• 15 % more torsional stiffness and 25 % more transverse tensile strength than 9 mm quick releases
• faster acceleration for more riding pleasure
• smaller spline diameter for 10 T sprocket: Micro Spline
• easy setup and reliable trail performance
• no dish
• welded rim joint
• CBN precision machined bearings (front stainless steel ball bearings with grease cover, rear polished)
• labyrinth and contact seals
• aluminium axles
• anodised rim and hub body
• use tubeless rim tape (included)

Technology:

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

Micro Spline
Micro Spline is an innovative tooth profile on MTB freehub bodies from Shimano. All Shimano 12-speed MTB cassettes with a 10-speed sprocket are equipped with Micro Spline freehub toothing. The significantly higher and finer toothing enables a stiffer connection between the cassette and the hub body. The resulting increased contact area ensures reliable power transmission, minimises wear and prevents deformation of the freehub and sprocket.

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black

Models:

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

E-WHM8120LFEBD7X + E-WHM8120LREBD7

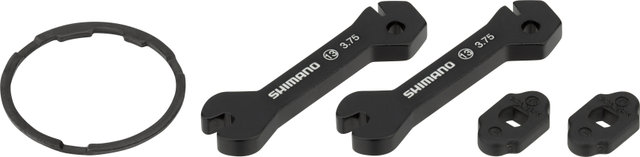

Contents:

• 1 x Shimano XT WH-M8120 27.5" wheelset (front & rear)
• 2 x tubeless rim valves (installed)
• 2 x rim tape rolls (applied)
• 2 x valve core removers
