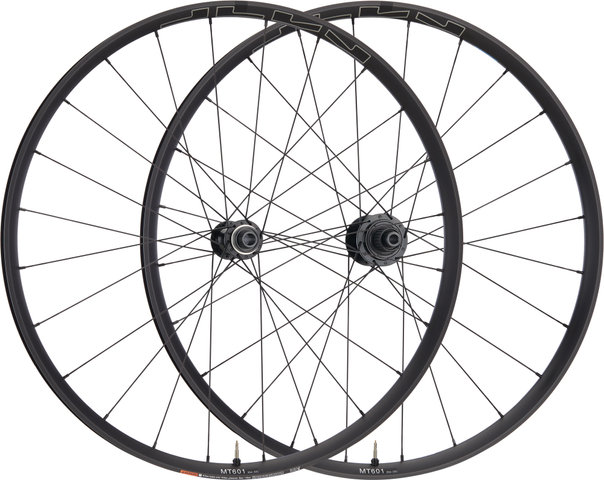

Shimano WH-MT601-TL-B Center Lock Disc 29" Wheelset

The WH-MT601-TL-B Wheelset by Shimano - Robust trail performance in 29"

With the WH-MT601 from Shimano, you get affordable all-mountain wheels in 29" , which are compatible with 110 mm over locknut dimension at the front and 148 mm at the rear and can be run tubeless. They offer robust performance and very good handling on the trail. The rims are made of aluminium and have a jaw width of 25 mm, so 2.4" wide tyres are no problem. The centre features Center Lock hubs with reliable cartridge bearings, which convince with an optimal ratio of stiffness and weight according to the Shimano E-Thru thru-axle system. A micro-spline freehub made of steel is used on the rear wheel, which accepts 12-speed cassettes with 10-tooth sprockets. The wheelset was spoked with 24 stainless steel cranked spokes each front and rear.

Specifications:

Application:

All Mountain

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Wheel Standard:

Boost

Tubeless System:

TL/UST

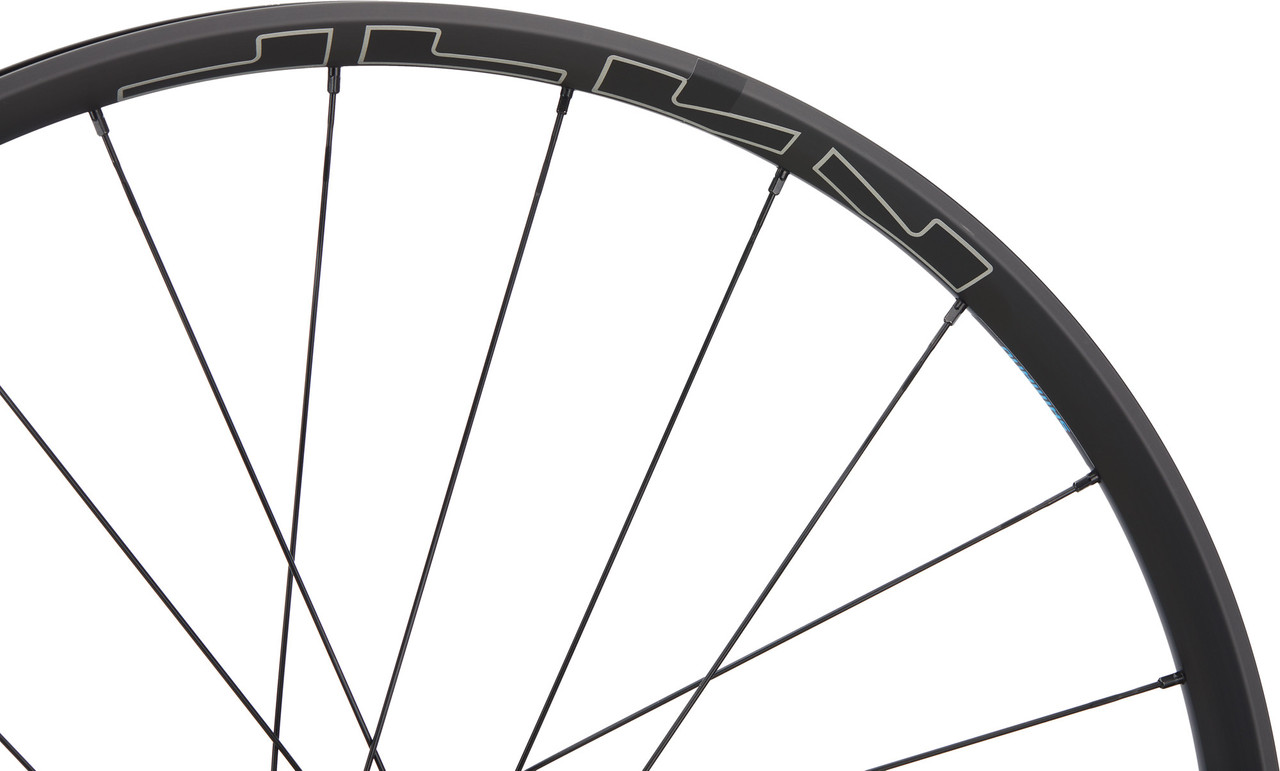

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

29.7 mm

Depth:

20.8 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Aluminium

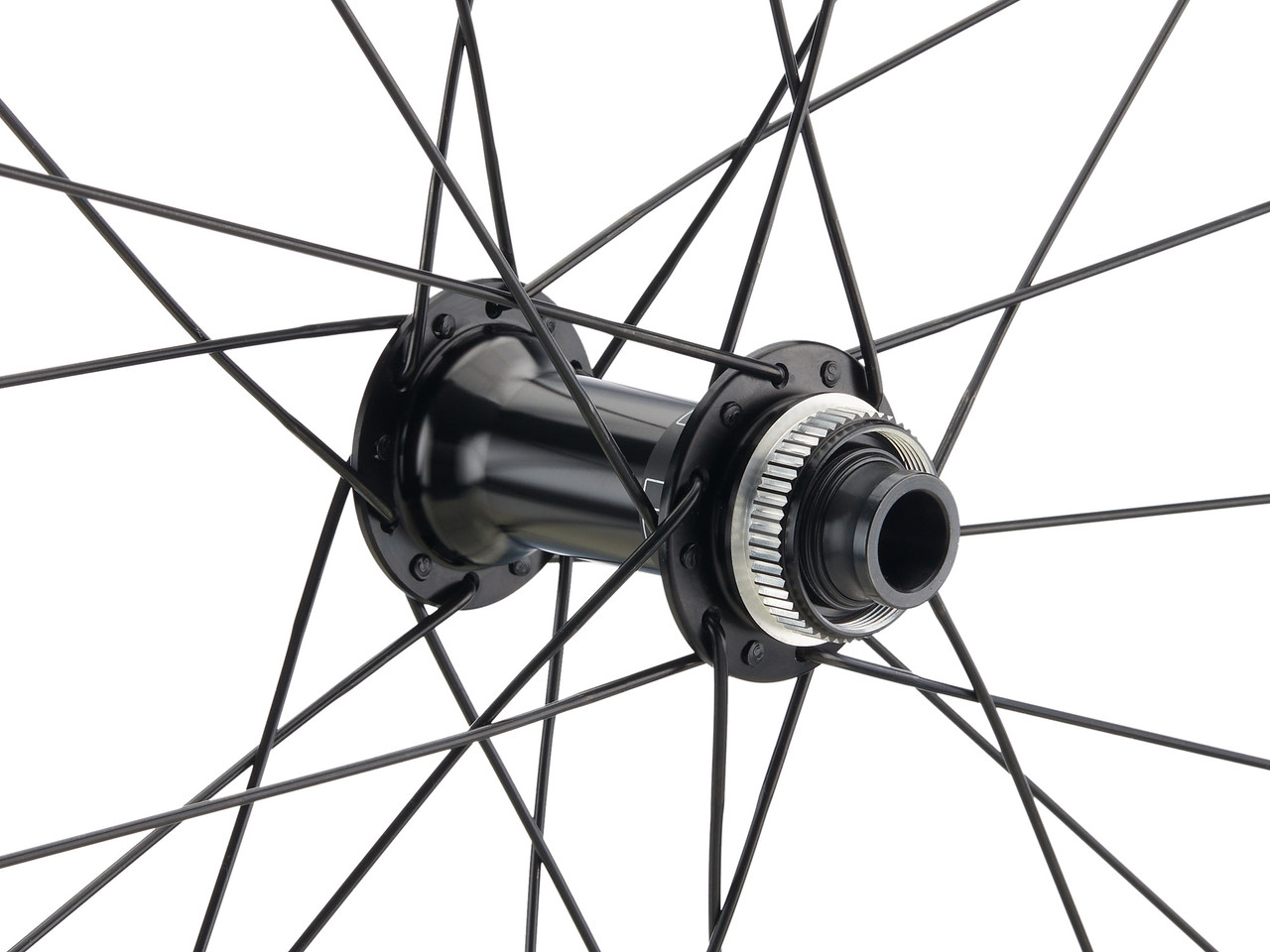

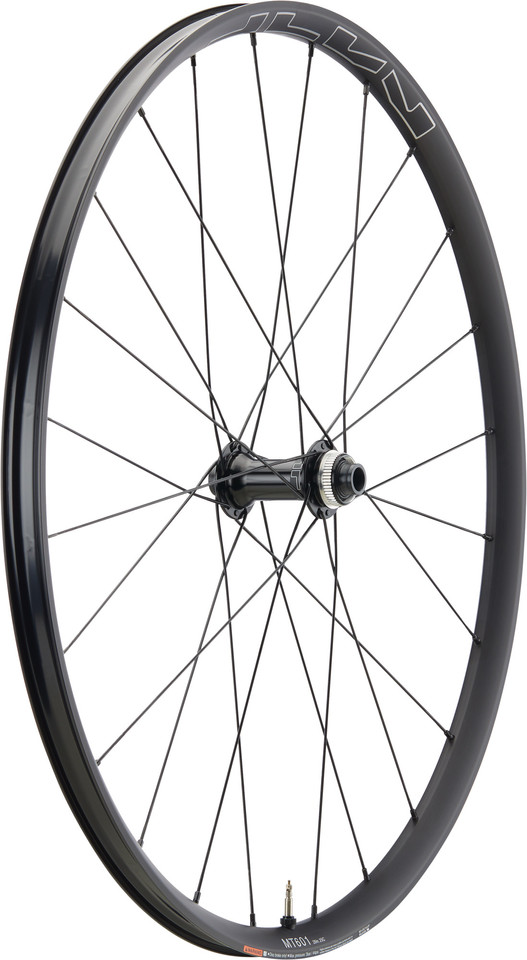

Technical Information - Front Hub:

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

cartridge

Body Material:

Aluminium

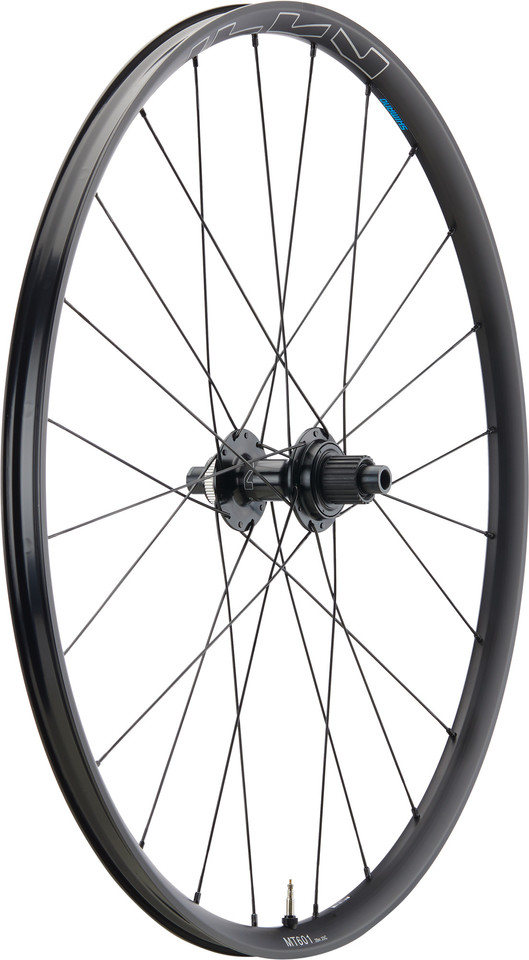

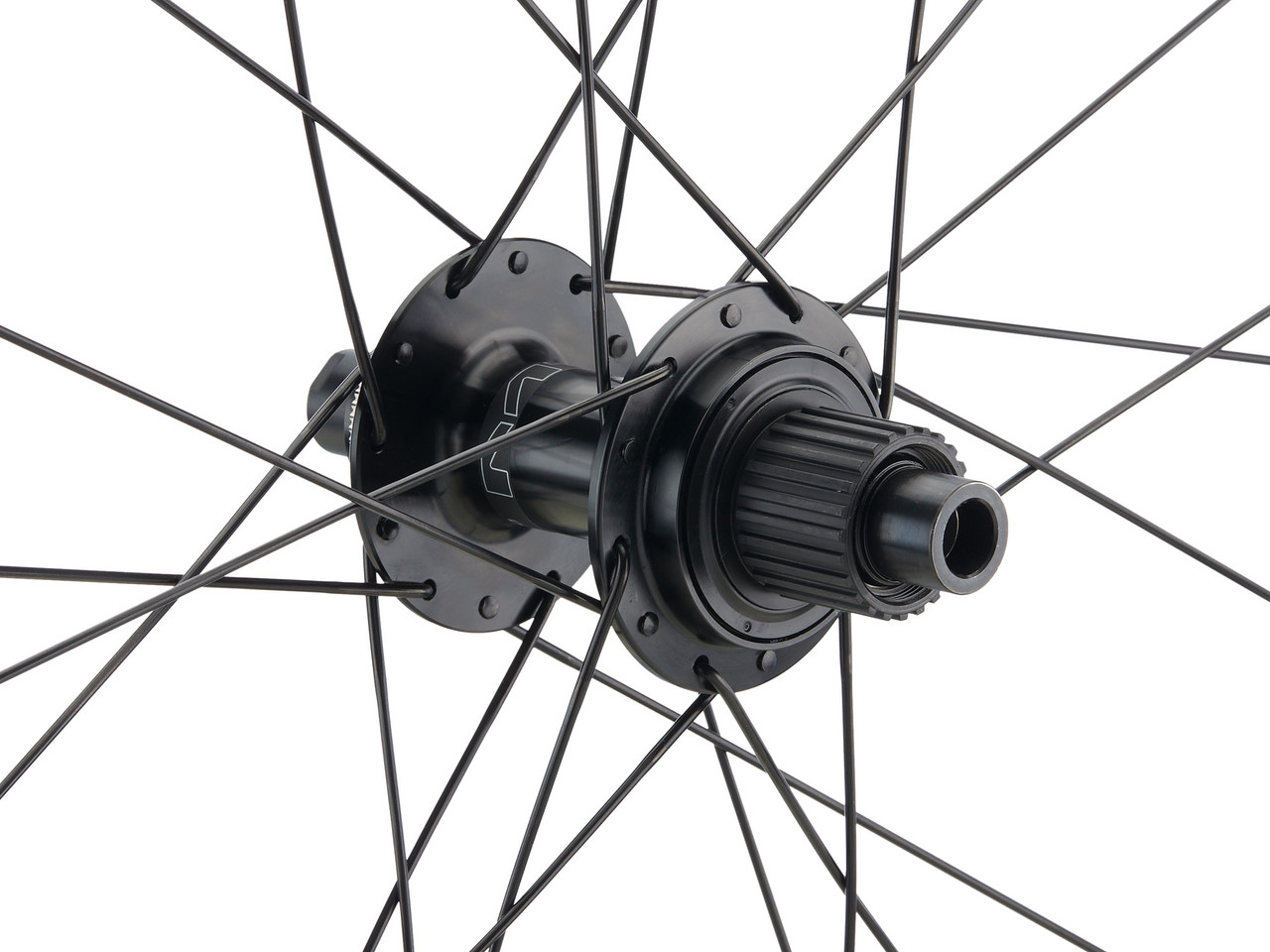

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

cartridge

Body Material:

Aluminium

Freehub Body Material:

steel

Freehub Body:

Pawls (Quick Engagement: 36 engagement points, 360°)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

double butted (2.3) / J-Bend

Spoke Size:

290 mm (front) / 286.5 mm (rear)

Spoke Material:

stainless steel

Nipple Material:

brass

Approved For:

Recommended Tyre Width:

29" x 2.0" - 2.4"

Features:

• robust performance on any trail
• fast acceleration for more riding fun
• Boost: improved cornering and higher traction on climbs, higher wheel stiffness
• freehub for smallest cassette sprocket with 10 t
• sleeved rim joint
• aluminium axles
• labyrinth and contact seals
• painted rims and hubs
• use with rim tape (25-622, included)

Technology:

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

E-WHMT601LFEBD9B (front) + E-WHMT601LREBD9B (rear)

Contents:

• 1 x Shimano WH-MT601-TL-B 29" wheelset (front & rear)
• 2 x tubeless rim tape (mounted)
