Shimano WH-RS171-CL Center Lock Disc 27.5" Wheelset

Shimano WH-RS171-CL 27.5" wheelset - one more option for Gravel rides

Unlike its predecessor WH-RS170, the Shimano WH-RS171-CL wheelset is now also available as a 650B version, i.e. with 27.5" . Its wide rim inside dimension of 19 mm makes it particularly interesting for off-road use. Of course, the WH-RS171 wheels feature the contemporary 12 mm thru-axle system front and rear as well as the Shimano quality technologies that have been tried and tested for years.

Specifications:

Application:

Gravel, Cyclocross, Road

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc

Tubeless System:

none

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

19-584

Inner Width:

19 mm

Outer Width:

24.6 mm

Depth:

19 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

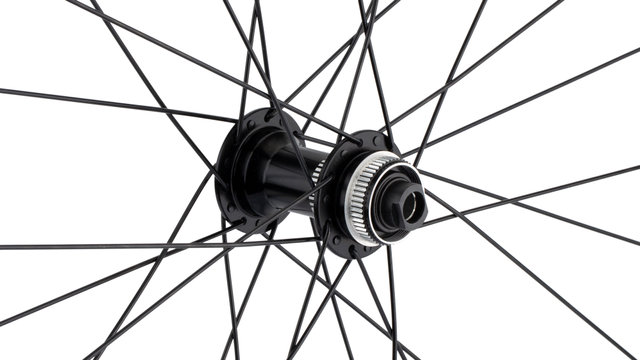

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

cup & cone

Body Material:

aluminium

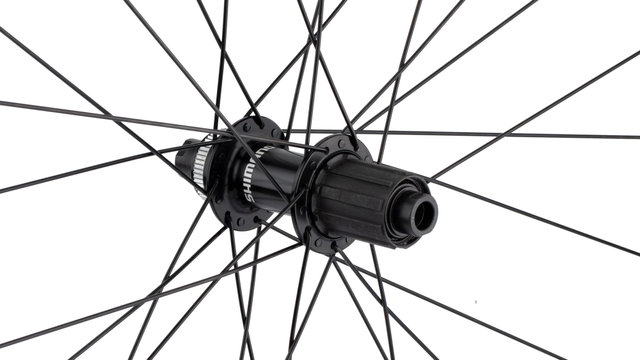

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

pawls

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

J-bend / round

Spoke Size:

271 mm (front), 271 mm/269 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Size:

2 mm (diameter)

Nipple Material:

brass

Approved For:

Recommended Tyre Width:

28-584 - 42-584

Features:

• 19c rim profile for better performance with wider tyres
• stiff 12 mm axle system front and rear
• proven Shimano quality and technologies
• sleeved rim joint
• CBN precision machined bearings, polished, with contact seal
• freehub body has contact seal
• grease retention function
• anodised and painted rim, anodised hub body
• aluminium hub axles
• use rim tape (included)

Technology:

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.

E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: silver

Models:

27.5" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Number:

E-WHRS171FED65B + E-WHRS171RED65B

Contents:

• 1 x Shimano WH-RS171-CL-650B wheelset (front & rear)
• 2 x rolls of rim tape
