Shimano XT HB-M8000 Center Lock Disc front Hub for Quick Releases

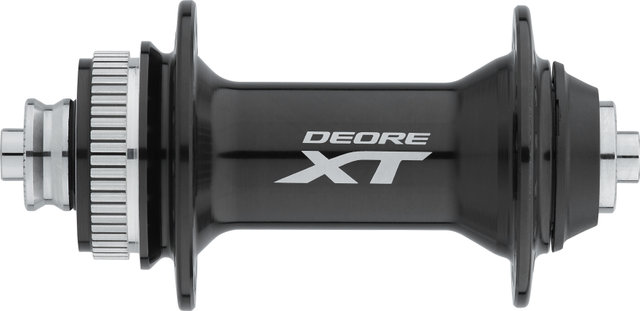

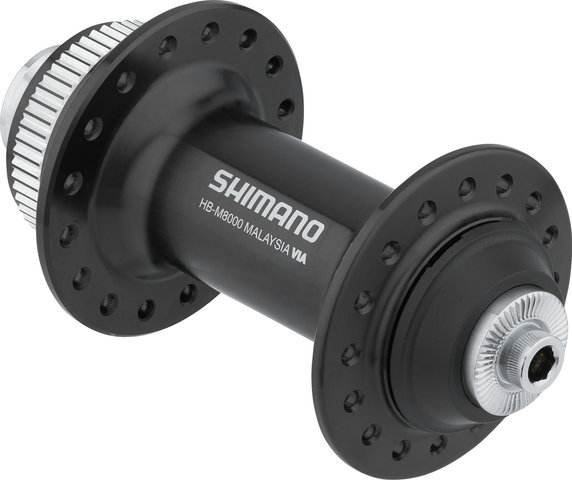

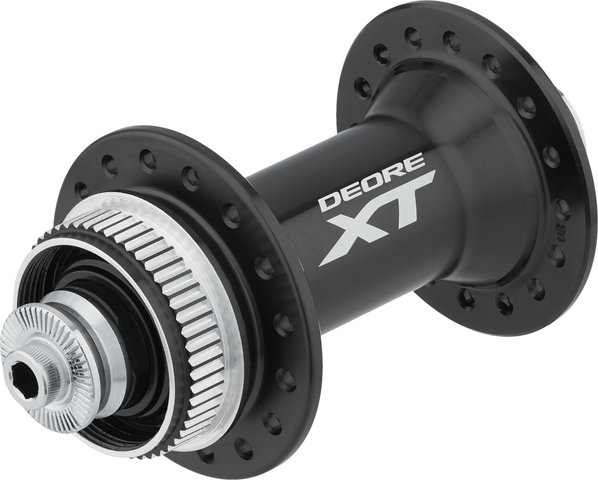

The XT HB-M8000 Front Hub by Shimano - Reliable quick-release hub

The Shimano XT HB-M8000 is the perfect front hub if you ride your XT M8000 groupset on a bike with a quick release. It is compatible with over locknut dimensions of 9 x 100 mm. HB-M8000 is characterised by reliable performance and durability. Body, axle and quick release lever are made of lightweight aluminium.

Specifications:

Series:

Deore XT M8000

Application:

Cross Country, All Mountain

Brake Type:

Center Lock Disc

Technical Information:

Body Material:

aluminium

Bearings:

cup & cone

Seals:

labyrinth + contact

Features:

• 108 mm axle length, 14 mm axle diameter
• flange diameter 52.8 mm left, 51.4 mm right
• 6.0 mm offset
• CBN precision machined bearings
• aluminium axles
• anodised hub shell
• durable and suitable for all weather conditions, reliable performance and lower weight
• weight-saving design
• internal grease sleeve

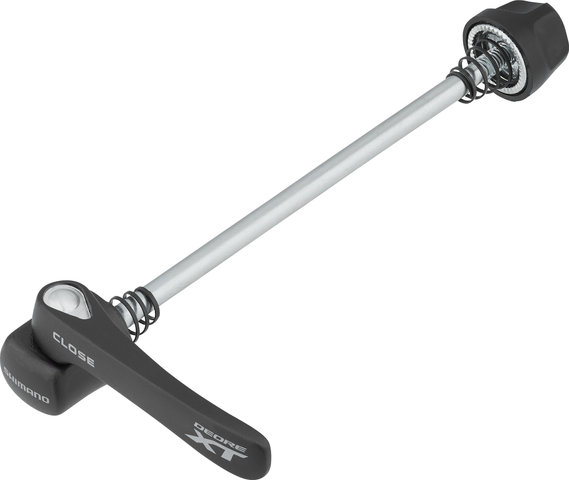

• quick release lever made of aluminium
• quick release length 133 mm

Models:

32 hole:

Over Locknut Dimension:

9 x 100 mm quick release

Spoke Hole Count:

32 hole

Flange Distance (L/R):

60.2 mm (24.1 mm/36.1 mm)

Partial Bolt Circle Diameter (L/R):

44 mm/41 mm

Manufacturer Number:

E-HBM8000B

36 hole:

Over Locknut Dimension:

9 x 100 mm quick release

Spoke Hole Count:

36 hole

Flange Distance (L/R):

60.2 mm (24.1 mm/36.1 mm)

Partial Bolt Circle Diameter (L/R):

44 mm/41 mm

Manufacturer Number:

E-HBM8000A

Contents:

• 1 x Shimano XT HB-M8000 front hub
• 1 x Shimano quick release
