Shimano XTR FC-M9020-3 11-speed Chainring

The Shimano XTR 11-speed Chainring for the FC-M9020-3 crank

This Shimano chainring is compatible with the XTR FC-M9020 11-speed crank and can be combined to form the 22-30-40 gradation. It has an asymmetrical hole pattern and a bbolt circle diameter of 96 or 64 mm. The hollow 3D structure (Hollowglide) ensures an optimal ratio of stiffness and weight.

Specifications:

Application:

All Mountain, Enduro

Mount:

96/64 mm bolt circle diameter, 4-arm asymmetrical

Teeth:

22 t, 30 t, 40 t

Gearing:

3x11-speed

Technical Information:

Combinations:

22-30-40 T

Material:

aluminium (22 t), titanium/carbon (CFRP, 30 t), aluminium/carbon (CFRP, 40 t)

Compatibility:

• XTR FC-M9020

Features:

• hollow-formed (Hollowglide)
• large chainring anodised, medium and small chainrings plated

Models:

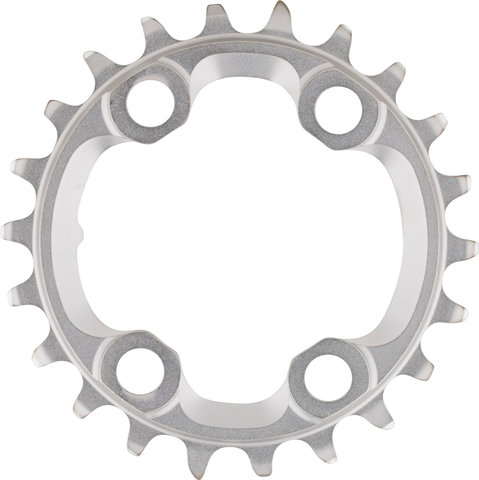

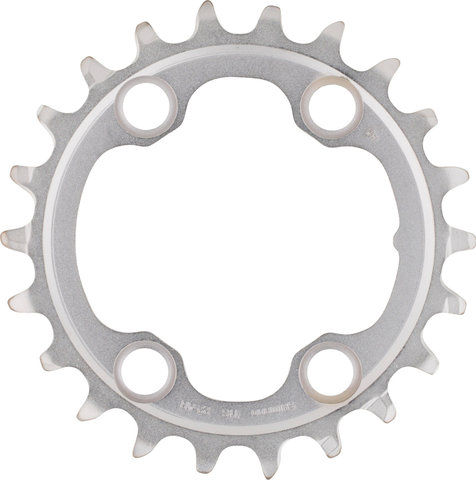

22 tooth:

Type:

AR

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1PW22000

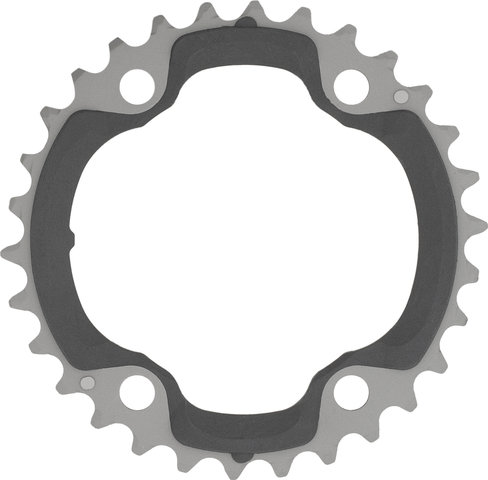

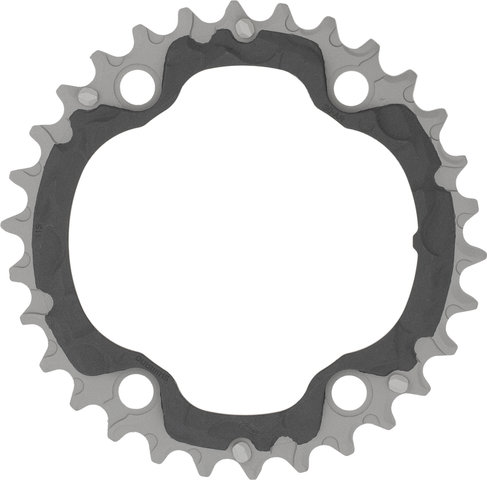

30 tooth:

Type:

AR

Bolt Circle Diameter:

96 mm

Manufacturer Number:

Y-1PW98050

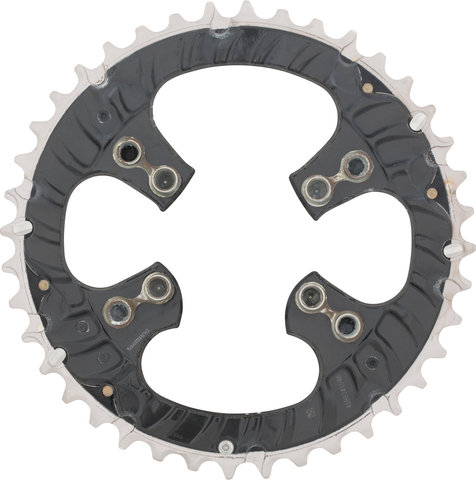

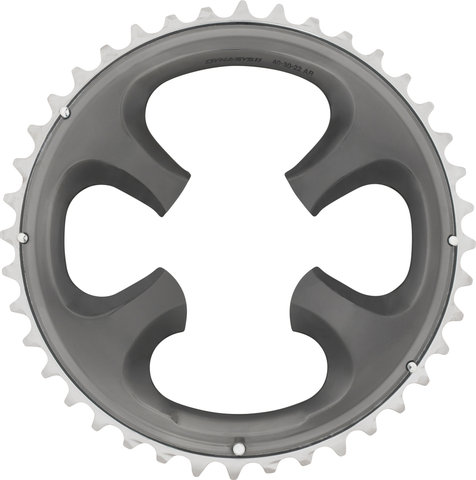

40 tooth:

Type:

AR

Bolt Circle Diameter:

96 mm

Manufacturer Number:

Y-1PW98060

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano XTR FC-M9020 chainring
