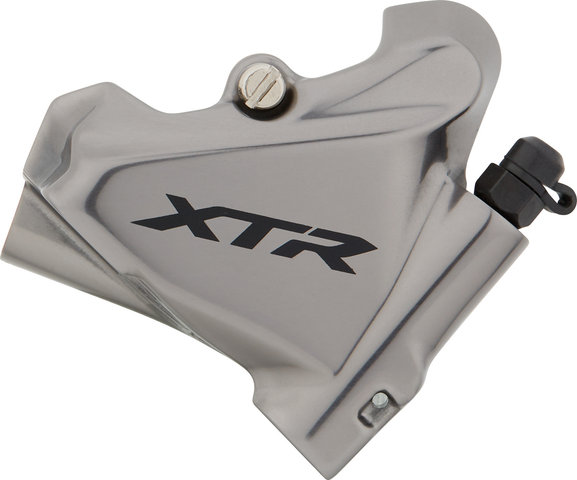

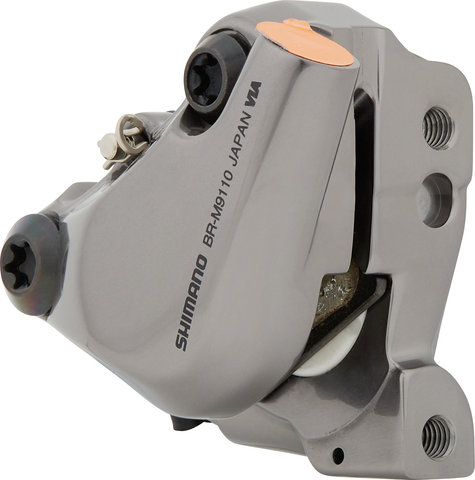

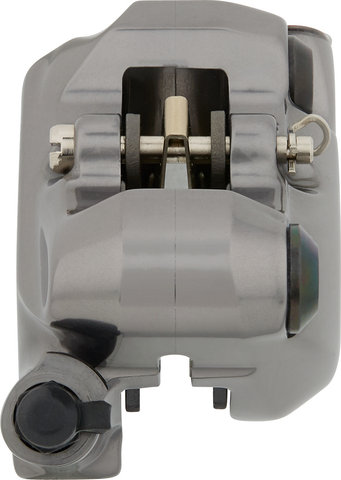

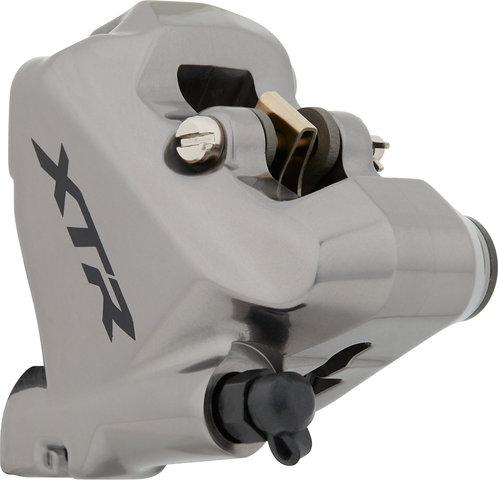

Shimano XTR XC BR-M9110 Brake Caliper w/ Resin Pads

The XTR BR-M9110 Brake Caliper by Shimano - Flat-mount model for racers

The BR-M9110 is a caliper from Shimano's high-end XTR series, which is attached to the rear of the frame via Flat Mount and is compatible with 140 and 160 mm brake rotors. Front wheel use is not possible. As a very light 2-piston model, it is aimed at cross-country racers, especially as it comes with resin pads with a titanium backing plate. The flat mount standard is proven technology known from the road bike sector, and has the advantage of a compact design that blends in pleasantly with the bike's appearance. The braking performance is in no way inferior to that of the BR-M9100 postmount caliper. The BR-M9110 is made of anodised aluminium and has a straight line connection; the pistons are made of heat-resistant ceramic. It can also be combined with Ice-Tech pads for even better heat dissipation. The One-Way Bleeding technology facilitates the bleeding process.

Specifications:

Series:

XTR M9100

Application:

Cross Country

Type:

hydraulic, 2 pistons

Actuation:

mineral oil

Hose:

SM-BH90-SS (not included)

Technical Information:

Caliper Mount:

flat mount

Pads:

resin

Design:

2-piece

Calliper Material:

Aluminium

Piston Material:

Ceramic

Hose Connection:

straight

Compatibility:

Mounting Position:

rear wheel only

Brake Rotor:

140 mm, 160 mm (recommended: RT-MT900)

Pads:

organic and sintered; with narrow pad shape; standard and Ice Tech brake pads

Recommended Brake Lever:

BL-M9100

Features:

• compact flat mount design
• reliable braking performance under all conditions with very low weight
• same braking power as XTR 2-piston model for Post Mount mounting
• same frame requirements as flat mount for road bike
• 2 ceramic pistons
• anodised
• steel bolts (4 mm)

Technology:

One Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Number:

I-BRM9110RDRX

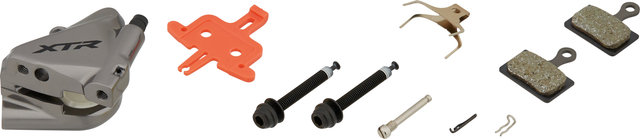

Contents:

• 1 x Shimano XTR BR-M9110 brake calliper
• 1 x pair Shimano brake pads with spring
• 2 x caliper bolts for 25 mm frame diameters
• 1 x pad retaining bolts

Order Together:

• FM-to-FM brake adapter SM-MA-R160 D/D for 160 mm brake rotor on 140 mm FM frame

Optional Accessories:

• K04Ti Metal Pads
• Type C bolts for 20 and 30 mm frame diameter
