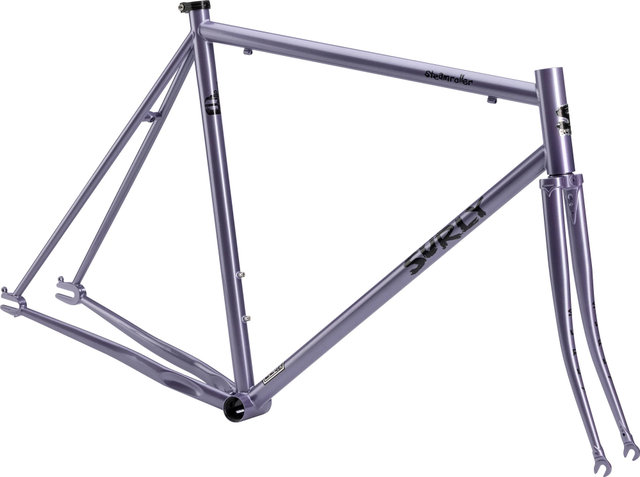

Surly Steamroller 28" frame Kit

anxious lavender | 38 mm | S | 28" | 1 1/8":

Wheel size:

28"

anxious lavender | 38 mm | M | 28" | 1 1/8":

Wheel size:

28"

anxious lavender | 38 mm | L | 28" | 1 1/8":

Wheel size:

28"

anxious lavender | 38 mm | XL | 28" | 1 1/8":

Wheel size:

28"

anxious lavender | 38 mm | XXL | 28" | 1 1/8":

Wheel size:

28"

anxious lavender | 38 mm | S | 28" | 1 1/8":

Fork Offset:

38 mm

Steerer Tube:

1 1/8"

anxious lavender | 38 mm | M | 28" | 1 1/8":

Fork Offset:

38 mm

Steerer Tube:

1 1/8"

anxious lavender | 38 mm | L | 28" | 1 1/8":

Fork Offset:

38 mm

Steerer Tube:

1 1/8"

anxious lavender | 38 mm | XL | 28" | 1 1/8":

Fork Offset:

38 mm

Steerer Tube:

1 1/8"

anxious lavender | 38 mm | XXL | 28" | 1 1/8":

Fork Offset:

38 mm

Steerer Tube:

1 1/8"

• Ideal for city and road cycling, the Steamroller 28" Frame Kit offers a versatile foundation for custom bike builds.
• Crafted from durable steel, both frame and fork ensure a resilient and comfortable ride on urban streets.
• Accommodates up to 700 x 38C tire size for both front and rear, perfect for navigating through cityscapes and open roads alike.
• Compatible with a 1-speed 50t chainring and features a BSA bottom bracket standard, catering to a streamlined and efficient drivetrain setup.
• Designed with a 27.2 mm seatpost diameter and a bolt seat clamp type for easy adjustments and secure seating.

anxious lavender | 38 mm | S | 28" | 1 1/8":

Head Tube Angle:

72.5

Stack:

504 mm

Standover Height:

748 mm

Wheelbase:

956 mm

Reach:

388 mm

Chainstay Length:

398 mm

Seat Tube Angle:

74.5

BB Drop:

70 mm

Frame Size:

49 cm

Seat Tube Length:

490 mm

Bottom Bracket Height:

271 mm

Head Tube Length:

83 mm

Effective Top Tube Length:

529 mm

anxious lavender | 38 mm | M | 28" | 1 1/8":

Head Tube Angle:

73

Stack:

531 mm

Standover Height:

780 mm

Wheelbase:

966 mm

Reach:

394 mm

Chainstay Length:

398 mm

Seat Tube Angle:

74

BB Drop:

70 mm

Seat Tube Length:

530 mm

Bottom Bracket Height:

271 mm

Frame Size:

53 cm

Head Tube Length:

109 mm

Effective Top Tube Length:

547 mm

anxious lavender | 38 mm | L | 28" | 1 1/8":

Head Tube Angle:

73.5

Stack:

558 mm

Standover Height:

807 mm

Wheelbase:

978 mm

Reach:

402 mm

Chainstay Length:

398 mm

Seat Tube Angle:

73.5

BB Drop:

70 mm

Frame Size:

56 cm

Seat Tube Length:

560 mm

Head Tube Length:

136 mm

Bottom Bracket Height:

271 mm

Effective Top Tube Length:

568 mm

anxious lavender | 38 mm | XL | 28" | 1 1/8":

Frame Size:

59 cm

Seat Tube Length:

590 mm

Head Tube Angle:

74

Stack:

586 mm

Head Tube Length:

163 mm

Standover Height:

835 mm

Wheelbase:

987 mm

Reach:

408 mm

Chainstay Length:

398 mm

Seat Tube Angle:

73

BB Drop:

70 mm

Bottom Bracket Height:

271 mm

Effective Top Tube Length:

587 mm

anxious lavender | 38 mm | XXL | 28" | 1 1/8":

Head Tube Angle:

74

Stack:

618 mm

Standover Height:

865 mm

Wheelbase:

1009 mm

Reach:

420 mm

Chainstay Length:

398 mm

Seat Tube Angle:

73

BB Drop:

70 mm

Frame Size:

62 cm

Seat Tube Length:

620 mm

Head Tube Length:

196 mm

Bottom Bracket Height:

271 mm

Effective Top Tube Length:

608 mm

• anxious lavender | 38 mm | S | 28" | 1 1/8": FM6920
• anxious lavender | 38 mm | M | 28" | 1 1/8": FM6921
• anxious lavender | 38 mm | L | 28" | 1 1/8": FM6922
• anxious lavender | 38 mm | XL | 28" | 1 1/8": FM6923
• anxious lavender | 38 mm | XXL | 28" | 1 1/8": FM6924

•


  1 × Surly Steamroller frameset
