Syntace X-12 Derailleur Hanger
Item number: 24465
Product Description

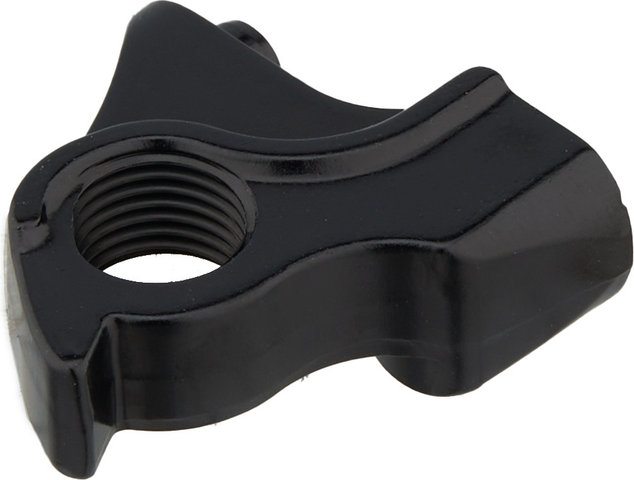

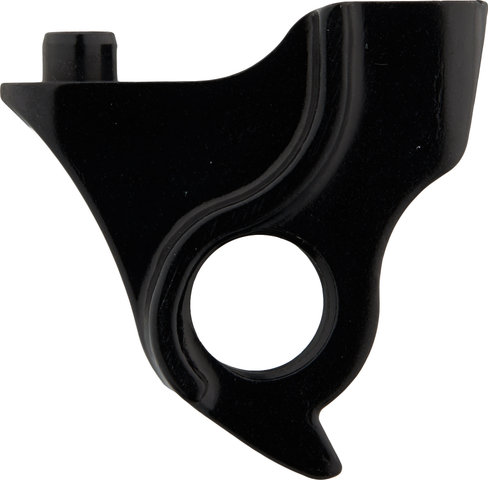

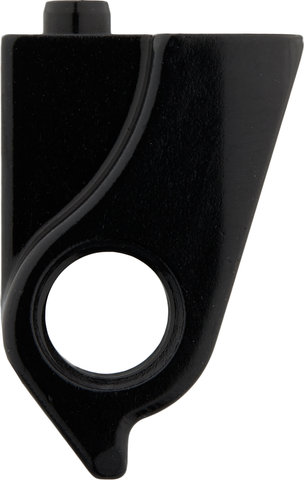

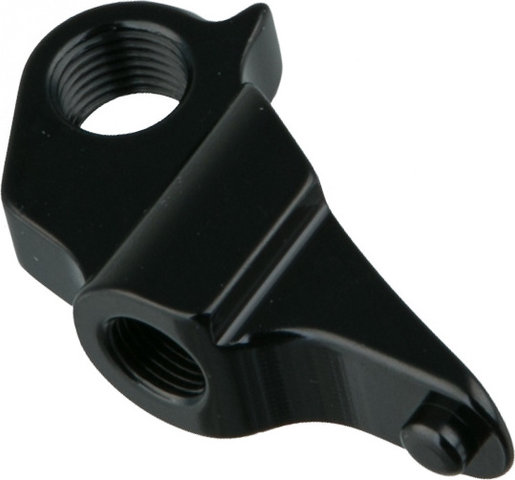

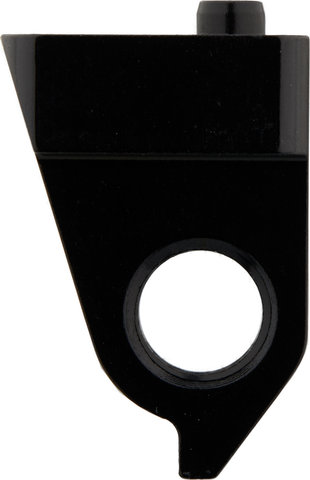

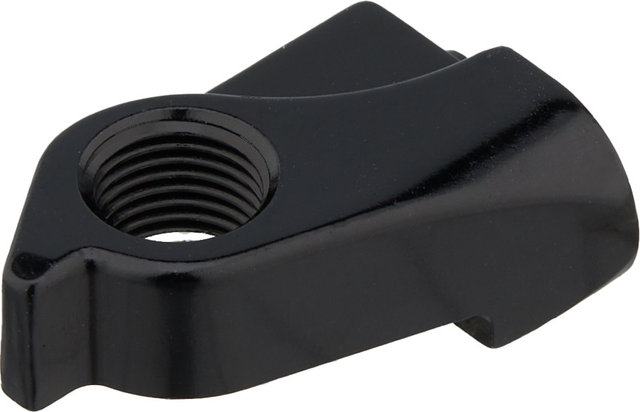

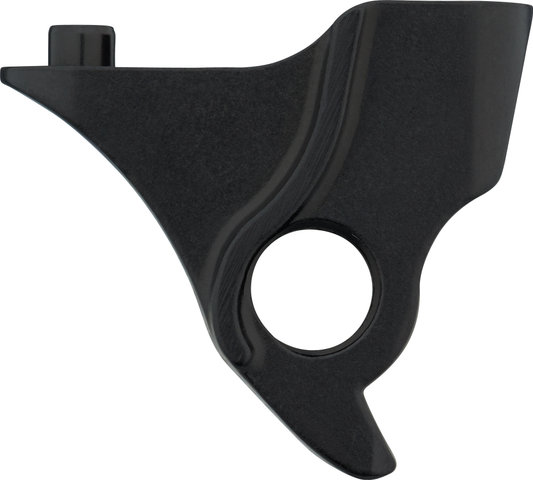

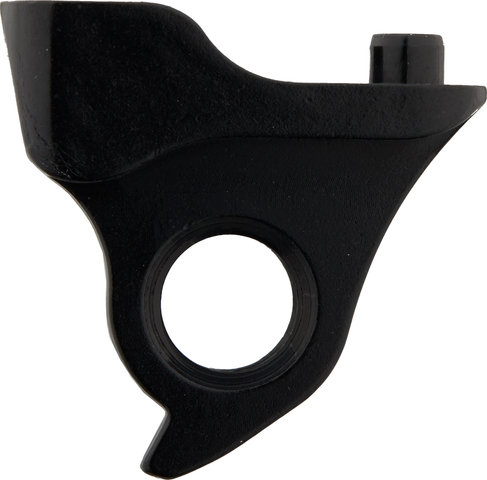

Syntace X-12 derailleur hanger for Liteville frames.
Standard rear derailleurs from Shimano are connected to the frame/dropout with the B2 Body Plate (small movable mounting arm). Direct mount rear derailleurs, on the other hand, no longer have this receptacle and are connected directly to the designated frame/dropouts. Current 10-/11-speed rear derailleurs from Shimano can be easily converted and mounted by removing the B2 body plate from a direct mount rear derailleur.
Type 2:
Type 3:
Note:
Shimano Direct Mount:Standard rear derailleurs from Shimano are connected to the frame/dropout with the B2 Body Plate (small movable mounting arm). Direct mount rear derailleurs, on the other hand, no longer have this receptacle and are connected directly to the designated frame/dropouts. Current 10-/11-speed rear derailleurs from Shimano can be easily converted and mounted by removing the B2 body plate from a direct mount rear derailleur.
Compatibility:
Type 1:- Liteville 301 MK8 - Mk11 series 1 (Mk11-1)
- Liteville 601 Mk1 - Mk2
- Liteville 901 Mk1 - Mk2
Type 2:
- Liteville 301 as of Mk11 series 2 (Mk11-2 - cut out for dropper posts in the seat tube) up to Mk13
- Liteville 601 Mk3
- Liteville H-3 Mk1
- Liteville 101 Mk1

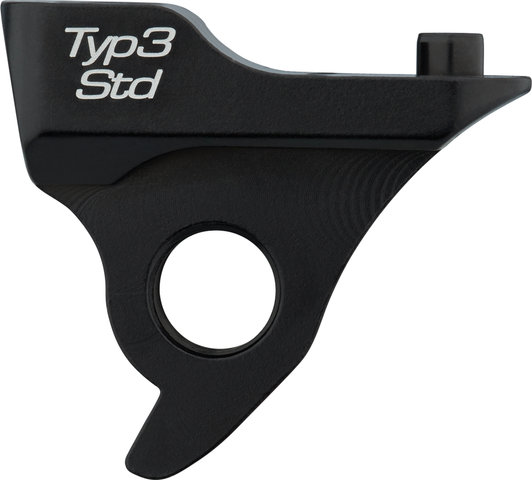

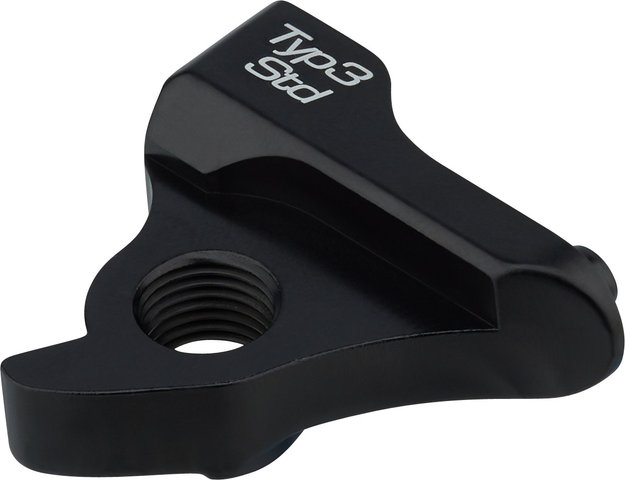

Type 3:
- Liteville 901 Mk3
- Liteville 601 Mk4
- Liteville 301 Mk14 - Mk 15
- Liteville H-3 Mk2
Manufacturer Numbers:
- Type 1 standard:
- 105669
- Type 1 Direct Mount:
- 117082
- Type 2 standard:
- 116825
- Type 2 Direct Mount:
- 116832
- Type 3 standard:
- 128118
- Type 3 Direct Mount:
- 128101
Contents:
- 1 x Syntace X-12 derailleur hanger
Manufacturer:
Syntace GmbH
Stefan-Flötzl-Straße 6
83342 Tacherting
Germany
