Thomson Elite Seatpost

The reference model for seats: the Elite seatpost by Thomson

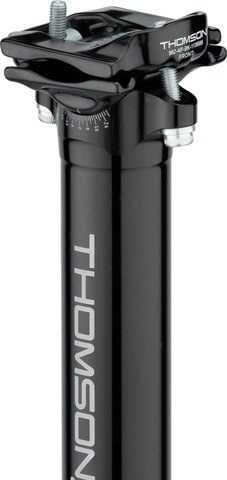

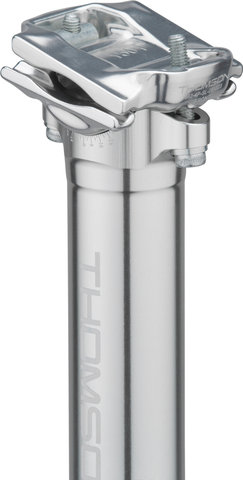

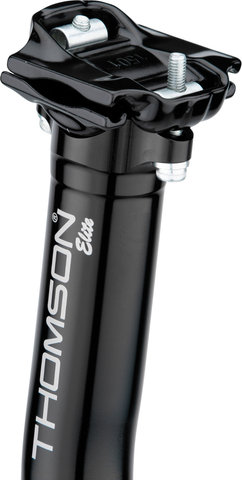

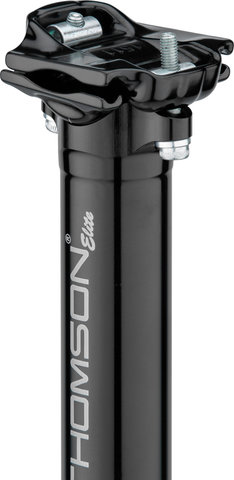

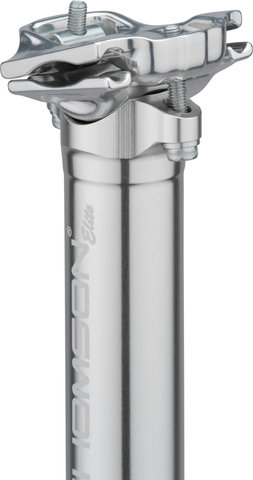

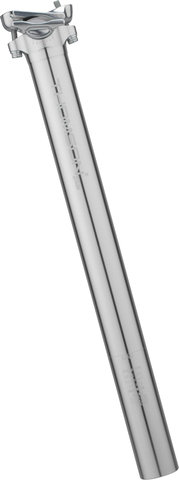

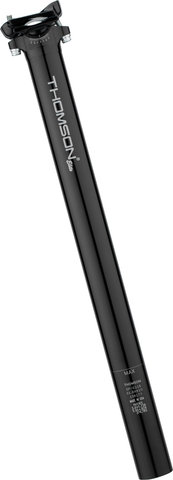

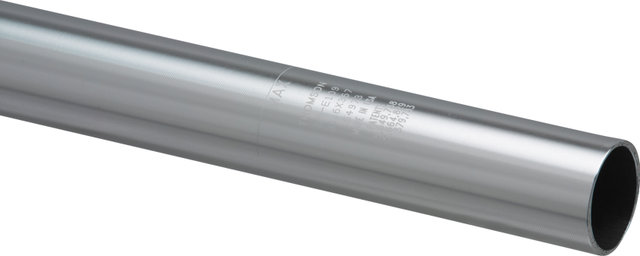

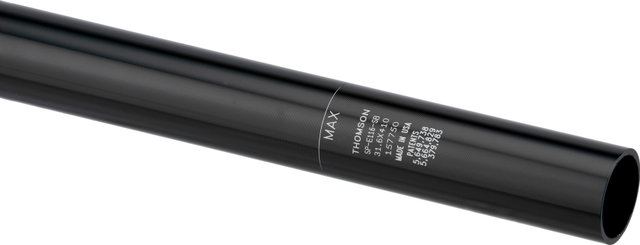

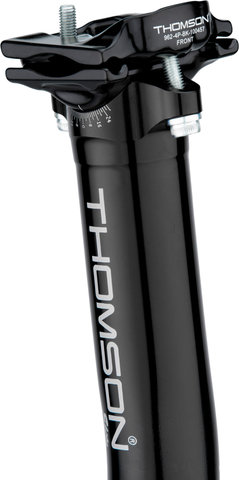

Thomson's Elite is the reference in seatposts and is often used for comparison when testing other seatposts. Thomson's Elite is the measure of all things in terms of precision, adjustability, weight and above all stability. Made from one piece of 7000 aircraft grade aluminium, the Elite impresses with a seamless shaft that integrates the precision milled head. The 41mm wide saddle seat is forged and prevents bending and buckling of the saddle rails at high load peaks.

Specifications:

Application:

All Mountain, City, Road, Touring & Trekking

Diameter:

25.4 mm, 26.8 mm, 27.0 mm, 27.2 mm, 30.9 mm, 31.6 mm

Length:

250 mm, 330 mm, 367 mm, 410 mm

Setback:

0 mm, 16 mm

Technical Information:

Clamp:

2-bolt

Compatible Saddle Rails:

7 x 7 mm (standard)

Material:

aluminium

Models:

25.4 mm / 330 mm / SB 0 mm:

Diameter:

25.4 mm

Length:

330 mm

Setback:

0 mm

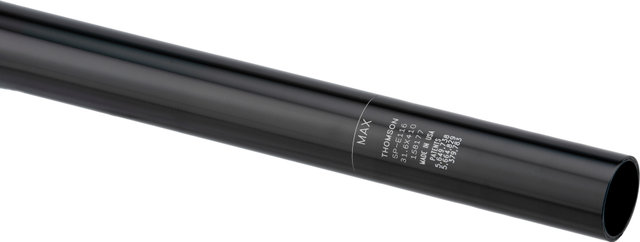

Insertion Depth (min.):

63.5 mm

Manufacturer Number:

SP-E150

26.8 mm / 330 mm / SB 0 mm:

Diameter:

26.8 mm

Length:

330 mm

Setback:

0 mm

Insertion Depth (min.):

63.5 mm

Manufacturer Number:

SP-E105

26.8 mm / 330 mm / SB 16 mm:

Diameter:

26.8 mm

Length:

330 mm

Setback:

16 mm

Insertion Depth (max.):

204.6 mm

Insertion Depth (min.):

63.5 mm

Manufacturer Number:

SP-E105SB

27.0 mm / 330 mm / SB 0 mm:

Diameter:

27.0 mm

Length:

330 mm

Setback:

0 mm

Insertion Depth (min.):

63.5 mm

Manufacturer Number:

SP-E103

27.0 mm / 410 mm / SB 0 mm:

Diameter:

27.0 mm

Length:

410 mm

Setback:

0 mm

Insertion Depth (min.):

76.2 mm

Manufacturer Number:

SP-E114

27.2 mm / 250 mm / SB 0 mm:

Diameter:

27.2 mm

Length:

250 mm

Setback:

0 mm

Insertion Depth (min.):

63.5 mm

Manufacturer Number:

SP-E102

27.2 mm / 250 mm / SB 16 mm:

Diameter:

27.2 mm

Length:

250 mm

Setback:

16 mm

Insertion Depth (max.):

151.6 mm

Insertion Depth (min.):

63.5 mm

Manufacturer Number:

SP-E102SB

27.2 mm / 330 mm / SB 0 mm:

Diameter:

27.2 mm

Length:

330 mm

Setback:

0 mm

Insertion Depth (min.):

63.5 mm

Manufacturer Number:

SP-E101

27.2 mm / 330 mm / SB 16 mm:

Diameter:

27.2 mm

Length:

330 mm

Setback:

16 mm

Insertion Depth (max.):

204.6 mm

Insertion Depth (min.):

63.5 mm

Manufacturer Number:

SP-E101SB

27.2 mm / 410 mm / SB 0 mm:

Diameter:

27.2 mm

Length:

410 mm

Setback:

0 mm

Insertion Depth (min.):

76.2 mm

Manufacturer Number:

SP-E113

27.2 mm / 410 mm / SB 16 mm:

Diameter:

27.2 mm

Length:

410 mm

Setback:

16 mm

Insertion Depth (max.):

298.2 mm

Insertion Depth (min.):

75 mm

Manufacturer Number:

SP-E113SB

30.9 mm / 367 mm / SB 0 mm:

Diameter:

30.9 mm

Length:

367 mm

Setback:

0 mm

Insertion Depth (max.):
Insertion Depth (min.):

Manufacturer Number:

SP-E128

30.9 mm / 367 mm / SB 16 mm:

Diameter:

30.9 mm

Length:

367 mm

Setback:

16 mm

Insertion Depth (min.):

100 mm

Manufacturer Number:

SP-E128SB

30.9 mm / 410 mm / SB 0 mm:

Diameter:

30.9 mm

Length:

410 mm

Setback:

0 mm

Insertion Depth (min.):

100 mm

Manufacturer Number:

SP-E127

30.9 mm / 410 mm / SB 16 mm:

Diameter:

30.9 mm

Length:

410 mm

Setback:

16 mm

Insertion Depth (max.):

298.2 mm

Insertion Depth (min.):

100 mm

Manufacturer Number:

SP-E127SB

31.6 mm / 367 mm / SB 0 mm:

Diameter:

31.6 mm

Length:

367 mm

Setback:

0 mm

Insertion Depth (min.):

100 mm

Manufacturer Number:

SP-E109

31.6 mm / 367 mm / SB 16 mm:

Diameter:

31.6 mm

Length:

367 mm

Setback:

16 mm

Insertion Depth (max.):

254.7 mm

Insertion Depth (min.):

100 mm

Manufacturer Number:

SP-E109SB

31.6 mm / 410 mm / SB 0 mm:

Diameter:

31.6 mm

Length:

410 mm

Setback:

0 mm

Insertion Depth (min.):

100 mm

Manufacturer Number:

SP-E116

31.6 mm / 410 mm / SB 16 mm:

Diameter:

31.6 mm

Length:

410 mm

Setback:

16 mm

Insertion Depth (max.):

254.7 mm

Insertion Depth (min.):

100 mm

Manufacturer Number:

SP-E116-SB

Contents:

• 1 x Thomson Elite seatpost

• black/27.2 mm / 250 mm / SB 0 mm: 201 g
• black/27.2 mm / 330 mm / SB 0 mm: 241 g
• black/27.2 mm / 330 mm / SB 16 mm: 241 g
• black/30.9 mm / 367 mm / SB 0 mm: 243 g
• black/31.6 mm / 367 mm / SB 0 mm: 223 g
• black/27.2 mm / 410 mm / SB 0 mm: 289 g
• black/30.9 mm / 410 mm / SB 0 mm: 263 g
• black/27.2 mm / 410 mm / SB 16 mm: 289 g
• black/30.9 mm / 410 mm / SB 16 mm: 263 g
