Unior Bike Tools Crank Tool Set 1626A for Power Torque & Ultra Torque

Unior Bike Tools Crank Tool Set 1626A for Power and Ultra Torque cranks from Campagnolo

The Unior Bike Tools 1626A Crank Tool Set offers you all the tools you need to disassemble Campagnolo and Fulcrum cranks. It is suitable for Ultra Torque aluminium cranks as well as for Power Torque and Racing Torque carbon cranks, as it contains various protective discs. After removing the crank bolt, insert the metal plug extension of the tool into the crank and turn the spindle of the bearing tool using a 19 mm open-end wrench. The set can also be used to disassemble and assemble bottom brackets. A special extension and an assembly tool are included for this purpose.

Specifications:

Function:

Disassembly of cranks, disassembly and assembly of bottom brackets

Tool Type:

Special tool, crank removal tool

Drive:

19 mm open-end wrench

Compatibility:

Campagnolo Ultra Torque (aluminium), Campagnolo Power Torque (carbon), Fulcrum Racing Torque (carbon)

Technical Information:

Material:

steel

Features:

• set with all necessary tools for assembling and disassembling the crank or bottom bracket of Campagnolo and Fulcrum cranks
• suitable for Ultra Torque and Power Torque

Application:

• to remove Ultra Torque cranks, insert a thin protective disc between the crank and the bottom bracket shell
• remove the bolt and insert the metal extension plug into the crank
• with the bearing tool, turn the spindle clockwise using a 19 mm wrench
• use the thicker protective disc to dismantle Power Torque / Racing Torque cranks
• to disassemble the bottom bracket, use the bearing assembly tool in combination with the bearing removal extension
• to install the bottom bracket in the crank, use the bearing assembly tool in combination with a hammer (not included)

Manufacturer Number:

623207

Contents:

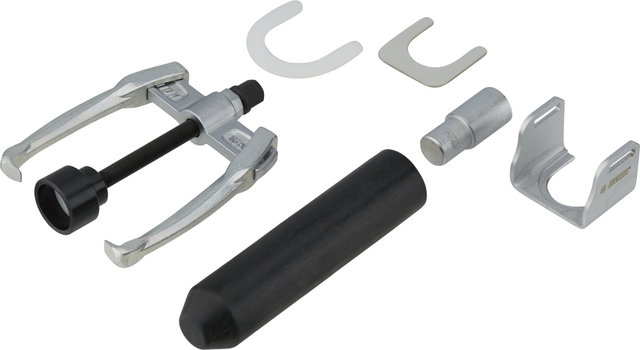

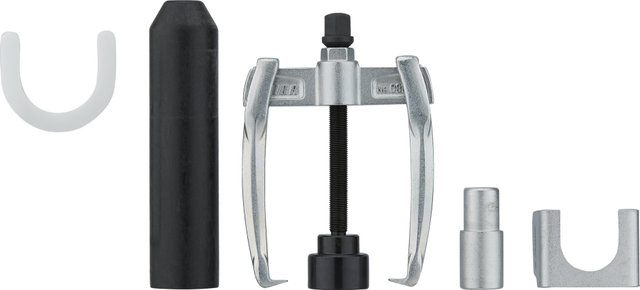

Unior Bike Tools 1626A Crank Tool Set, consisting of:

• 1 x bearing assembly tool
• 1 x metal extension plug
• 1 x bearing removal extension
• 1 x bearing assembly tool
• 1 x protective disc, thin
• 1 x protective disc, thick
