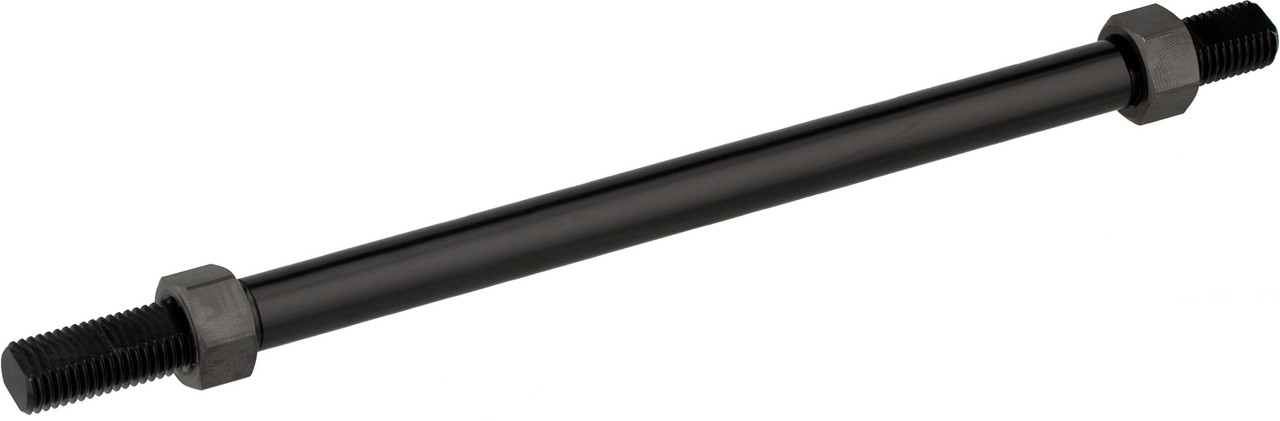

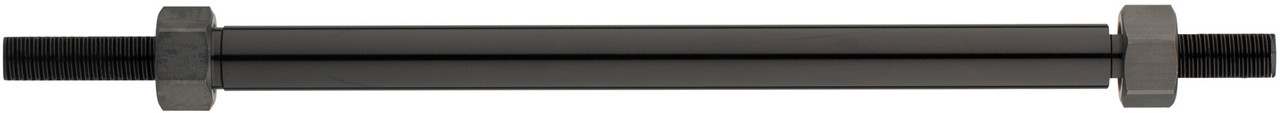

Weber ALU universal 12 mm Thru-Axle

Replacement stub axle made of aluminium, 12 mm diameter, with various thread pitches for attaching the Weber E / EL / ES or CE coupling.
With wider hubs, such as 27.5 Plus and Boost Standard, it is not possible to fit a CE coupling for the Montoporter.

Specifications:

Over Locknut Dimension: 142 - 148 mm
Axle Diameter: 12 mm

Technical Information:

Use: rear 12 x 142 - 148 mm
Type: thru-axle
Axle Material: aluminium
Axle Length: 230 mm
Nominal Diameter: M12
Thread Pitch: 1.0 mm / 1.5 mm / 1.75 mm

Compatibility:

- suitable for mounting the E- / EL- / ES-coupling (hub width 142 - 148 mm); no further accessories required
- apt when using the Hitch CE (only for 142 mm hub widths, not for 27.5" ); a second special polygon for the thru-axle is required
- the monoporter requires a wider tow bar
- Bulls dropouts often require an additional screw clamp

Models:

12 x 142/148 mm / 1.0 mm:
- Axle Diameter: 12 mm
- Over Locknut Dimension: 142 - 148 mm
- Thread pitch: 1.0 mm
- Manufacturer Part Number: KU.03.360.00

12 x 142/148 mm / 1.5 mm:
- Axle Diameter: 12 mm
- Over Locknut Dimension: 142 - 148 mm
- Thread pitch: 1.5 mm
- Manufacturer Part Number: KU.03.380.00

12 x 142/148 mm / 1.75 mm:
- Axle Diameter: 12 mm
- Over Locknut Dimension: 142 - 148 mm
- Thread pitch: 1.75 mm
- Manufacturer Part Number: KU.03.390.00

Contents:

- 1 x Weber 12 mm thru-axle
- 2 x M12 nuts
- 1 x special polygon
- 2 x serrated washer
- 1 x cone
- 1 x facing plate, 27.5 mm diameter
- 2 x spacers 20 mm diameter
- 1 x spacer, 17 mm diameter, 6 mm length
- 1 x spacer, 17 mm diameter, 4 mm length
- 1 x open-end ring wrench, 17 mm
