White Industries ENO Eccentric Rear Hub

The ENO Eccentric rear hub is the ideal solution for converting your frame with vertical dropouts to singlespeed operation. Due to the special design of the hub, the chain tension can be adjusted via eccentrics, thus eliminating the need for a chain tensioner. In contrast to the special design of the hub, the rest of the features are the same as with all White Industries products: quality at the highest level as well as long durability.

Specifications:

Series:

ENO

Application:

Road

Over Locknut Dimension:

10 x 130 mm screw axle, 10 x 135 mm screw axle

Spoke Hole Count:

32 hole

Brake Type:

rim brake

Freehub:

screw-on cassette

Gearing:

1-speed

Sprocket Mount:

threads (1.37" x 24 tpi), mount for White Industries fixed gear sprocket

Technical Information:

Body Material:

aluminium (6061)

Bearings:

2 x 6902-2RS cartridge

Flange Distance (L/R):

65 mm (32.5 mm/32.5 mm)

Partial Bolt Circle Diameter (L/R):

48 mm/48 mm

Features:

• eccentric for adjusting the chain tension
• enables frames with vertical dropouts to be converted to singlespeed without chain tensioner
• toothing for White Industries Fixed Gear sprockets on one side and thread for standard sprockets on the other side of the hub
• designed and manufactured in Petaluma, California (USA)

Manufacturer Numbers:

black / 10 x 130mm / 32 hole:

HUBENO32E130BK

silver / 10 x 130mm / 32 hole:

HUBENO32E130

black / 10 x 135mm / 32 hole:

HUBENO32E135BK

silver / 10 x 135mm / 32 hole:

HUBENO32E135

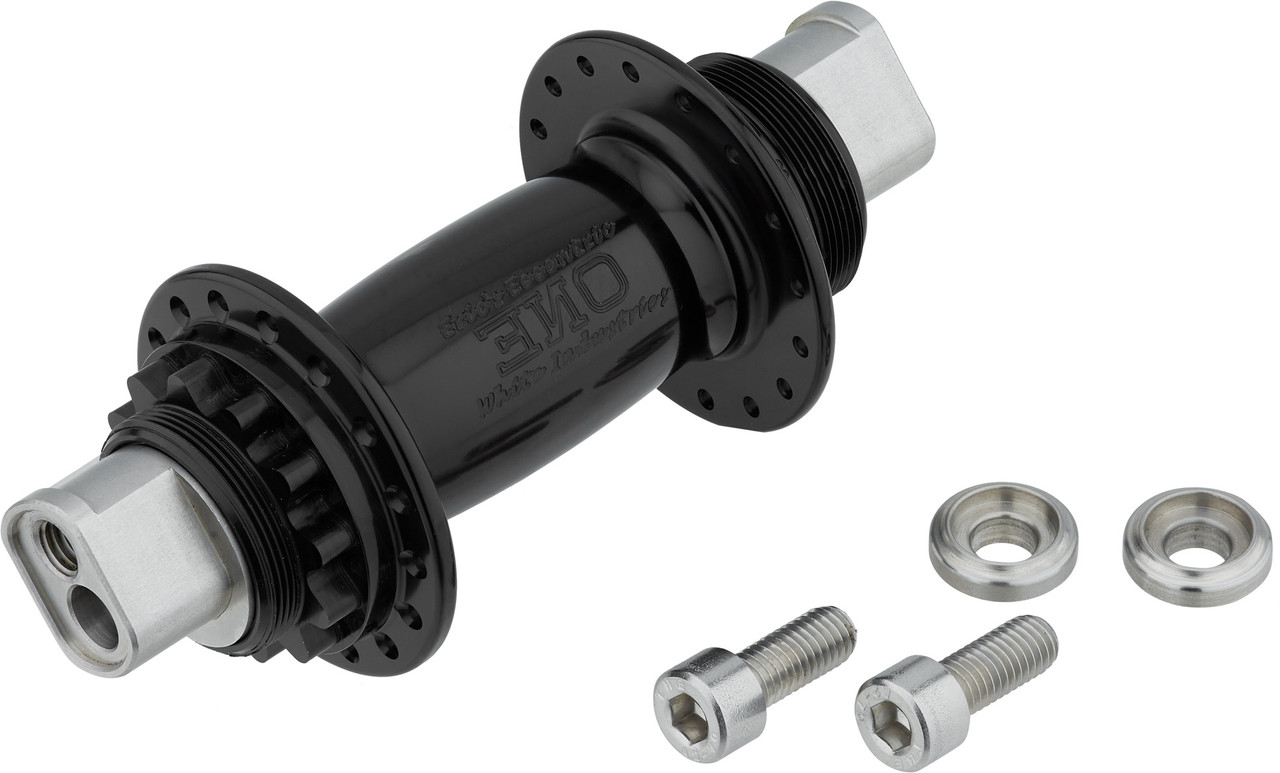

Contents:

• 1 x White Industries ENO Eccentric rear hub
