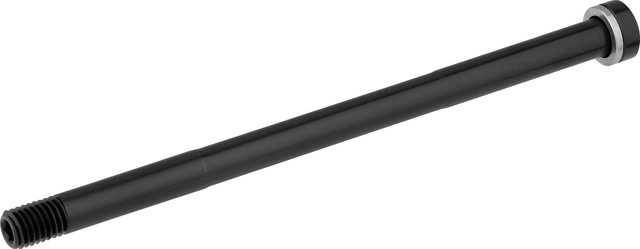

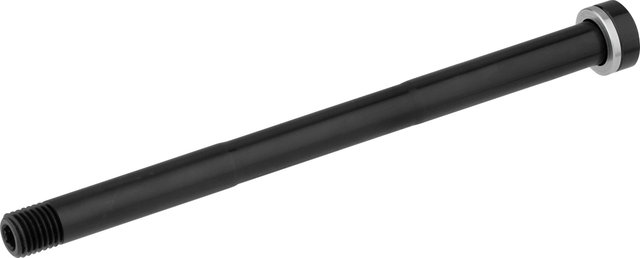

Wolf Tooth Components 12 mm Rear Thru-Axle

The Wolf Tooth Components 12 mm thru-axle for rear wheels is available in different lengths and with different thread pitches.

Technical Information:

Use:

rear: 12 x 142 mm, 12 x 148 mm

Type:

thru-axle

Axle Material:

aluminium (7075-T6)

Nominal Diameter:

M12

Features:

• with fixed stainless steel washer, protects the fork
• stiffer interface, protection against jamming
• 5 and 6 mm hex fitting
• Made in the USA

Note from the manufacturer:

Always apply a small amount of grease to the washer and thread before installation.

Models:

Type 1:

Axle Length:

166 mm

Thread Pitch:

1.75

Thread Length:

20 mm

Manufacturer Number:

AXLE12166175

Type 2:

Axle Length:

167 mm

Thread Pitch:

1.0

Thread Length:

16.5 mm

Manufacturer Number:

AXLE12167100

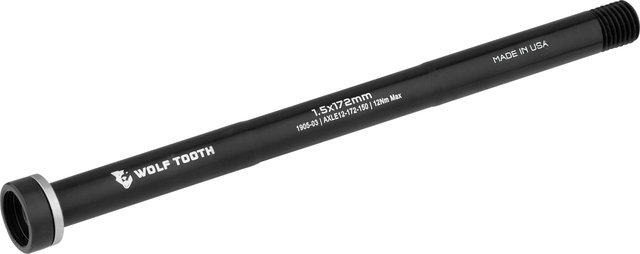

Type 3:

Axle Length:

172 mm

Thread Pitch:

1.5

Thread Length:

13 mm

Manufacturer Number:

AXLE12172150

Type 4:

Axle Length:

173 mm

Thread Pitch:

1.0

Thread Length:

16.5 mm

Manufacturer Number:

AXLE12173100

Type 5:

Axle Length:

174 mm

Thread Pitch:

1.75

Thread Length:

20 mm

Manufacturer Number:

AXLE12174175

Type 6:

Axle Length:

178 mm

Thread Pitch:

1.5

Thread Length:

13 mm

Manufacturer Number:

AXLE12178150

Type 7:

Axle Length:

180 mm

Thread Pitch:

1.75

Thread Length:

17 mm

Manufacturer Number:

AXLE12180175

Type 8:

Axle Length:

187 mm

Thread Pitch:

1.5

Thread Length:

20 mm

Manufacturer Number:

AXLE12187150

Type 9:

Axle Length:

192 mm

Thread Pitch:

1.75

Thread Length:

17 mm

Manufacturer Number:

AXLE12192175

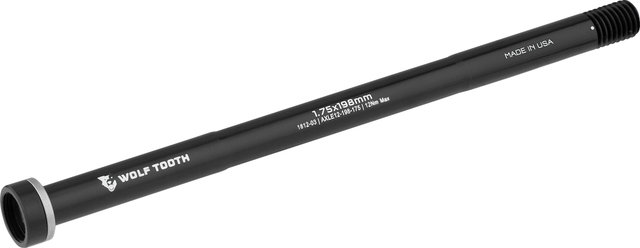

Type 10:

Axle Length:

198 mm

Thread Pitch:

1.75

Thread Length:

17 mm

Manufacturer Number:

AXLE12198175

Contents:

• 1 x Wolf Tooth Components 12 mm thru-axle

• black/type 1: 43 g
• black/type 2: 42 g
• black/type 3: 43 g
• black/type 4: 43 g
• black/type 5: 43 g
• black/type 6: 43 g
• black/type 7: 43 g
• black/type 8: 46 g
• black/type 9: 46 g
