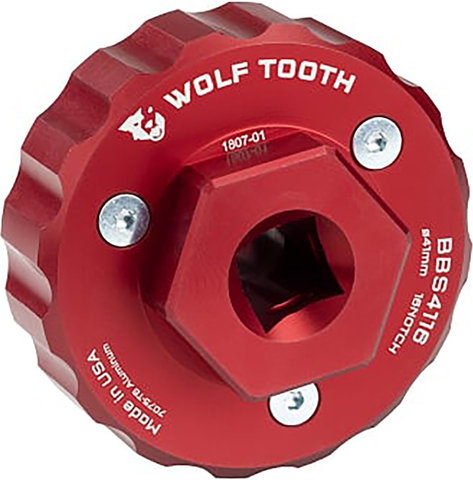

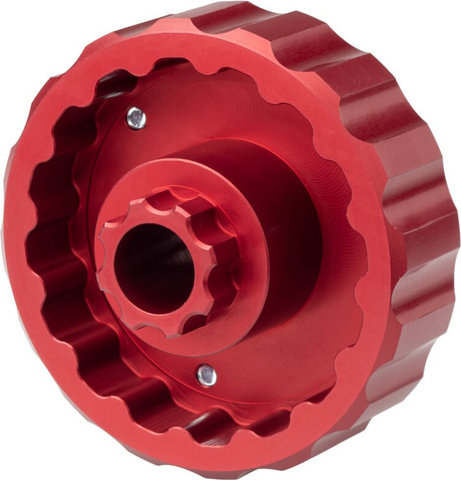

Wolf Tooth Components BBS4116 Bottom Bracket Tool

The Wolf Tooth Components BBS4116 bottom bracket tool - for Shimano 105 and Ultegra

The BBS4116 bottom bracket tool from Wolf Tooth Components is suitable for the BBR60 bottom bracket found in Shimano 105, Ultegra 6800 and MT800 cranks. In this case, the bearing cups have 16 teeth and an outer diameter of 41 mm. Accordingly, the tool has 16 notches for more grip when screwing on the cups by hand. It can be combined with a 3/8" square drive ratchet or a 1" torque wrench. Thanks to its magnetic steel inserts it also fits perfectly with the Pack Wrench. Like all Wolf Tooth bottom bracket tools, the BBS4116 is CNC machined to ensure particularly high quality. As a bonus, an 8-slot dust cap wrench is integrated, with which the crank bolt can be loosened.

Specifications:

Function:

installation & removal of bottom brackets

Type:

special tool

Type:

multi-tooth

Drive Size:

3/8" square, 1" hex

Compatibility:

Shimano 105, Ultegra 6800, BBR60, XT MT800 (16 tooth, 41 mm outer diameter)

Technical Information:

Material:

aluminium (7075-T6), steel

Features:

• 16 large notches for the fingers
• magnetic steel inserts
• with pre-tensioning tool for Shimano cranks

Manufacturer Number:

BBS4116

Contents:

• 1 x Wolf Tooth Components BBS4116 bottom bracket tool
