Wolf Tooth Components CAMO Direct Mount Spider for Race Face Cinch

Item number: 64147
CAMO Direct Mount Spider for Race Face Cinch - black/-5 mm
CAMO Direct Mount Spider for Race Face Cinch - black/-5 mm
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.91 / 5.00

Wolf Tooth Components CAMO Spider for Race Face - chainline optimisation

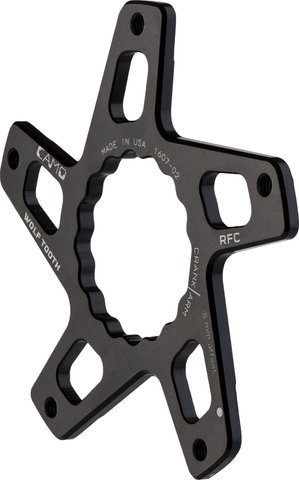

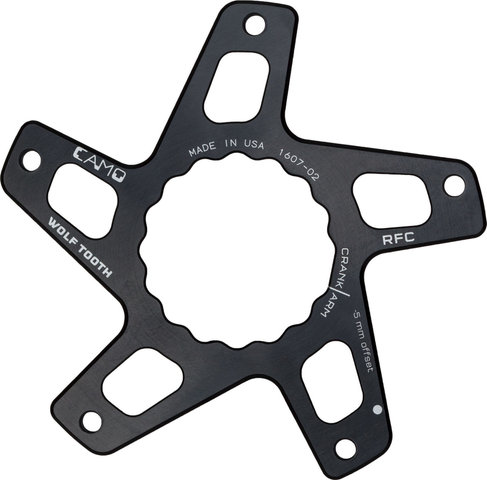

The Wolf Tooth Components CAMO Direct Mount Spider for Race Face is suitable for cranks in the Race Face Cinch system. There are three different versions for standard bikes, boost bikes and fat bikes. The aluminium spider is a central element of Wolf Tooth's CAMO Direct Mount system, whose main advantages are a perfect chainline, less wear, more shifting precision and user-friendliness. Stainless steel chainring bolts are included in the delivery.

Specifications:


Application: Cross Country, All Mountain, Enduro
Attachment: Cinch Direct Mount

Technical Information:


Chainline: 49 mm (-8 mm), 52 mm (-5 mm), 58 mm (+2 mm)
Material: aluminium (7075-T6)

Compatibility:


- Race Face Cinch cranks
- only compatible with Wolf Tooth CAMO chainrings

Features:


- 3 offset/chainline options
- less wear, more shifting precision, faster chainring change
- incl. ED-coated stainless steel chainring bolts
- Made in the USA

Technology:


CAMO
CAMO stands for Chainline And Material Optimisation, i.e. an optimisation of the chainline and material of Direct Mount chainrings. The chainline is decisive for the function of a 1x drivetrain. CAMO is available for 4 different chainline options. CAMO spiders are made of 7075 aluminium, which is very light, stiff and strong. The CAMO chainrings are either also made from aluminium or from ultra-durable but exceptionally light stainless steel. Due to the coordinated spider chainring system the power transfer is optimised compared to conventional solutions. The CAMO system makes the supply of spare chainrings more affordable and simplifies chainring changes. All five bolts are accessible without removing the spider. The small dot on the chainring must be in line with the dot on the spider. Connect the sockets of the spider to the chainring, tighten the bolts to 4 to 5 Nm and use blue Loctite.

Models:


-5 mm:
Offset: 5 mm towards the frame
Compatibility: Boost bikes with 148 mm over locknut dimensions
Chainline: 52 mm
Manufacturer Number: SPCAMORFCM5

-8 mm:
Offset: 8 mm towards the frame
Compatibility: bikes with 135 mm over locknut dimensions (quick release) and 142 mm over locknut dimensions (thru-axle), some 148 mm bikes
Chainline: 49 mm
Manufacturer Number: SPCAMORFCM8

+2 mm:
Offset: 2 mm away from frame
Compatibility: fat bikes with 190 or 197 mm over locknut dimensions and 100 mm axles
Chainline: 58 mm
Manufacturer Number: SPCAMORFCP2

Contents:


- 1 x Wolf Tooth Components CAMO Race Face spider
- 5 x screws


Gewicht:

  • black/-5 mm: 28 g
  • black/-8 mm: 32 g
  • black/+2 mm: 30 g

Models:

  • black/-5 mm, in stock
    28.56€
  • black/-8 mm, in stock
    28.56€
  • black/+2 mm, out of stock
    28.56€
