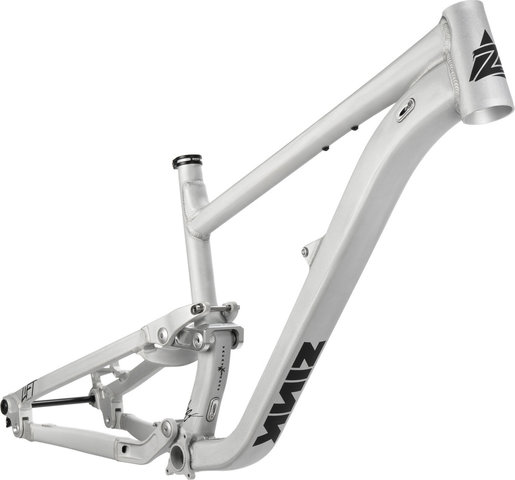

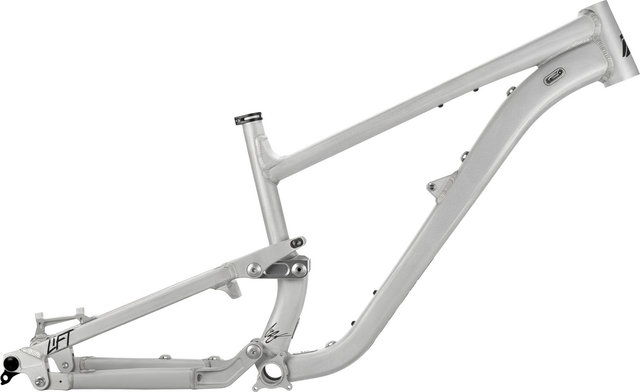

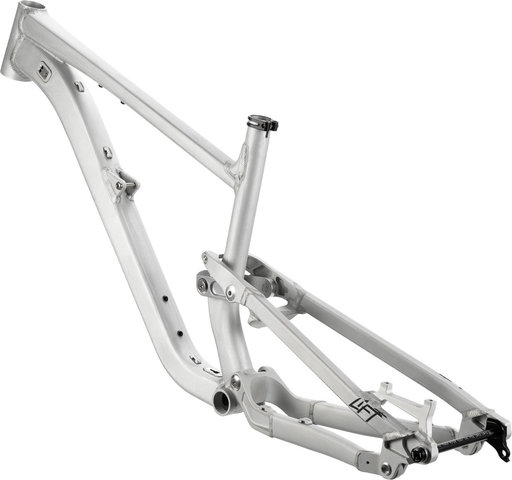

Zink Bikes Vacay 29"/27.5" frame
Product Description
Vacay 29"/27.5" Frame by Zink Bikes for All Mountain and Enduro riding
The Vacay 29"/27.5" Frame from Zink Bikes is designed for All Mountain, Enduro, and MTB adventures. Its aluminum frame material offers a solid yet lightweight foundation, while the four-bar linkage kinematics ensure responsive shock performance with 150 mm of travel. The frame accommodates a rear shock length of 230 mm x 65 mm and uses a standard rear shock mount with a width of 22 x 8 mm. You can pair it with a tapered steerer tube from 1 1/8" to 1.5" for precise handling. The frame supports 29" front wheels and 27.5" rear wheels with a Boost 12 x 148 mm rear axle standard. A BSA bottom bracket standard and 31.6 mm seatpost diameter are included for compatibility with many components. The brake system uses a Disc PM7 direct mount for 180 mm rotors, and the seat clamp is secured with a bolt. This frame is made for riders who prefer a 1x chainring setup and does not support a front derailleur mount.
Product Specifications:
- Application:
- All Mountain, Enduro, MTB
- seat clamp type:
- Bolt
- Brake Type:
- disc
- Kinematics:

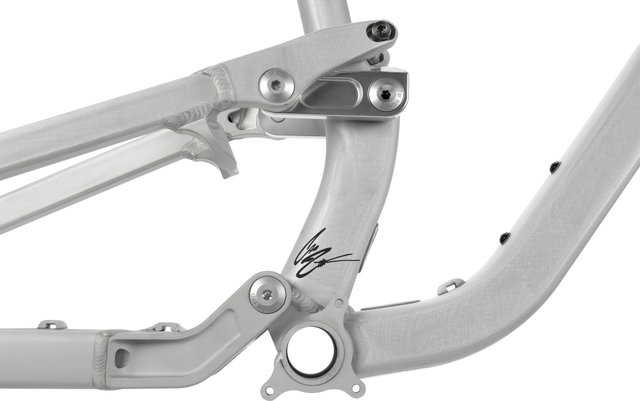

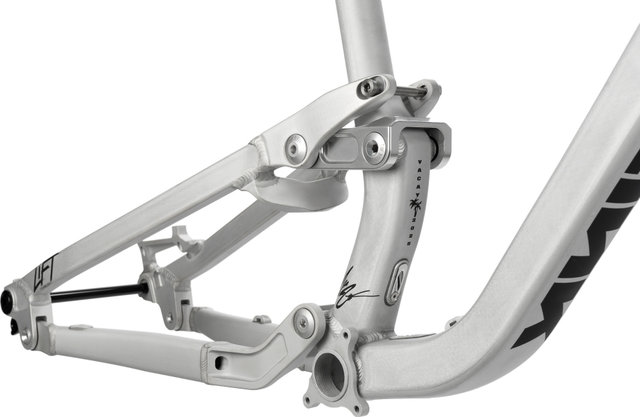

- Four-Bar Linkage
- Wheel size:
- 27,5", 29", 29" (front), 27,5" (rear)
- Housing Width:
- 73 mm
- Rear triangle material:
- Aluminium
- Frame material:
- Aluminum
- Gender:
- Women's, Men´s
raw | S | up to 29":
- Wheel size:
- up to 29"
- Rear travel:
- 150 mm
raw | M | up to 29":
- Wheel size:
- up to 29"
- Rear travel:
- 150 mm
raw | L | up to 29":
- Wheel size:
- up to 29"
- Rear travel:
- 150 mm
Technical Information:
- Seatpost diameter:
- 31,6 mm
- Shock Length:
- 230 mm
- Shock Travel:
- 65 mm
- Rear Shock Mount:
- Standard
- Brake Mount:
- Disc PM7 (Direct Mount 180 mm)
- Front Derailleur Mount:
- No Front Derailleur Mount Possible
- Wheel Standard:
- 12 x 148 mm (Boost)
- Shock Mount Width:
- 22,2 x 8 mm
- Recommended Steerer Tube:
- 1 1/8" - 1,5" tapered
- Bottom bracket standard:
- BSA
raw | S | up to 29":
- Clamp Diameter:
- 34,9 mm
raw | M | up to 29":
- Clamp Diameter:
- 34,9 mm
raw | L | up to 29":
- Clamp Diameter:
- 34,9 mm
Approved For:
- Chainring Count Compatibility:
- 1x
Product Features:
- Lightweight aluminum Vacay frame designed for aggressive All Mountain and Enduro riding, compatible with 29" front and 27.5" rear wheels for optimal traction and control
- Four-bar linkage suspension system with 65 mm rear shock travel and 230 mm shock length for smooth and responsive performance on rough trails

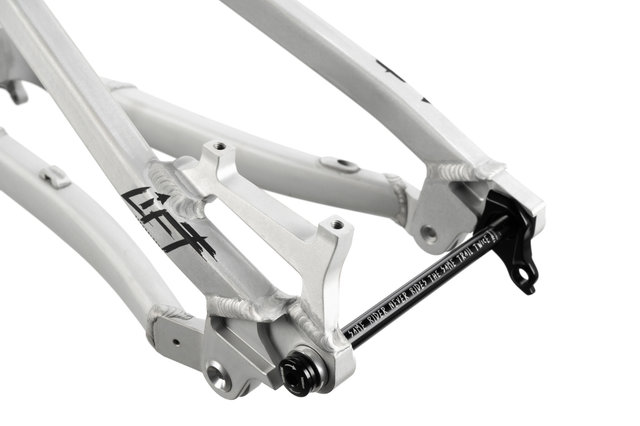

- Boost 12 x 148 mm rear axle standard enhances stiffness and improves handling precision on technical terrain
- BSA bottom bracket standard and 31.6 mm seatpost diameter ensure easy maintenance and compatibility with a wide range of components
- Disc brake direct mount (PM7) with 180 mm rotor support provides powerful and reliable stopping power in all conditions
Geometry:
raw | S | up to 29":
- Head Tube Angle:
- 65 ,63.9
- Stack:
- 618 mm,629 mm
- Wheelbase:
- 1192 mm,1204 mm
- Reach:
- 438 mm,426 mm
- Chainstay Length:
- 420 mm
- Seat Tube Angle:
- 79 ,77.8
- BB Drop:
- 23 mm,37 mm
- Head Tube Length:
- 110 mm
raw | M | up to 29":
- Head Tube Angle:
- 65 ,63.9
- Stack:
- 635 mm,643 mm
- Wheelbase:
- 1236 mm,1248 mm
- Reach:
- 476 mm,464 mm
- Chainstay Length:
- 420 mm
- Seat Tube Angle:
- 79 ,77.8
- BB Drop:
- 23 mm,37 mm
- Head Tube Length:
- 125 mm
raw | L | up to 29":
- Head Tube Angle:
- 65 ,63.9
- Stack:
- 648 mm,657 mm
- Wheelbase:
- 1267 mm,1286 mm
- Reach:
- 497 mm,485 mm
- Chainstay Length:
- 426 mm
- Seat Tube Angle:
- 79 ,77.8
- BB Drop:
- 23 mm,37 mm
- Head Tube Length:
- 132 mm
Manufacturer Number:
- raw | S | up to 29": MTF-S-RAW-24-AL
- raw | M | up to 29": MTF-M-RAW-24-AL
- raw | L | up to 29": MTF-L-RAW-24-AL
Contents:
- 1 x Zink Bikes frame Vacay 29"/27.5" (without shock)
