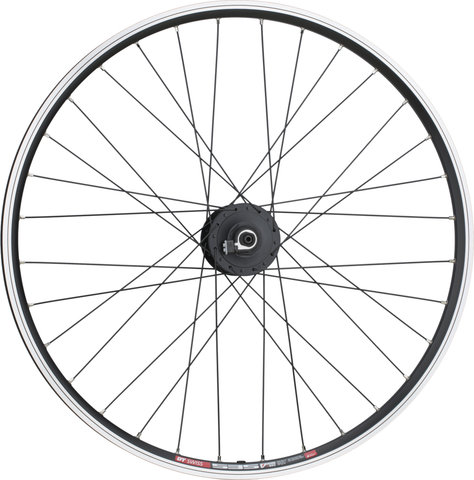

bc basic DT Swiss 535 + Shimano T3000 / DH-C3000 26" Wheel

bc basic 26" wheel with DT Swiss 535 rim, Shimano T3000 dynamo hub and DT Swiss Factory spokes.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

City & Touring

Wheel Size:

26"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

rim brake

Tubeless System:

none

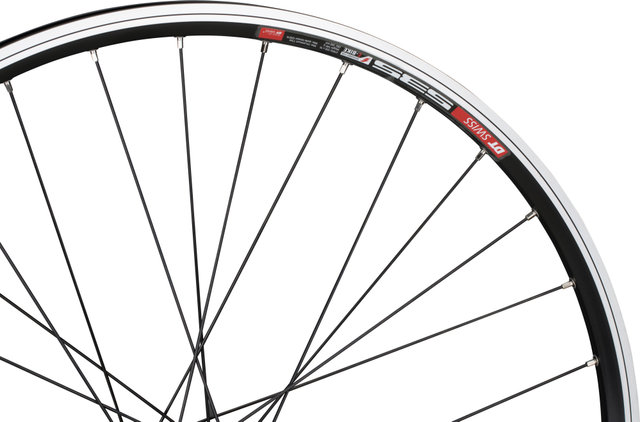

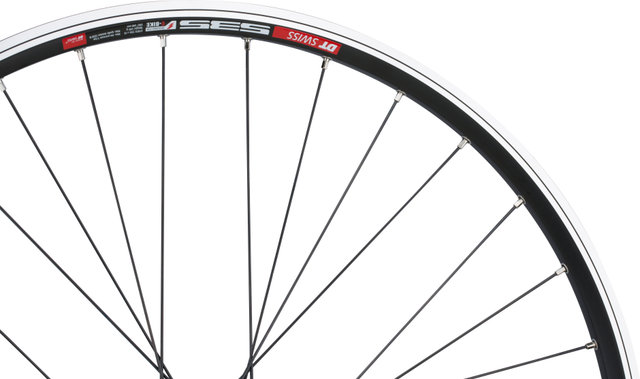

Technical Information - Rim:

Type:

DT Swiss 535

Rim Flange:

with hook

Dimensions (ETRTO):

19-559

Inner Width:

19 mm

Outer Width:

24 mm

Depth:

20 mm

ERD:

540 mm (nipple slot)

Valve Hole Diameter:

Schrader/Dunlop (8.5 mm), incl. Presta reducer

Rim Material:

aluminium

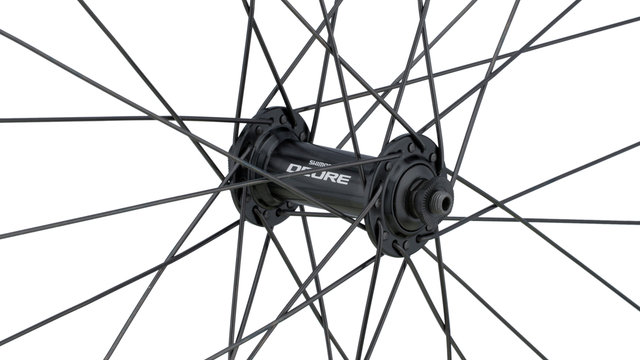

Technical Information - Front Hub:

Type:

Shimano HB-T3000

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

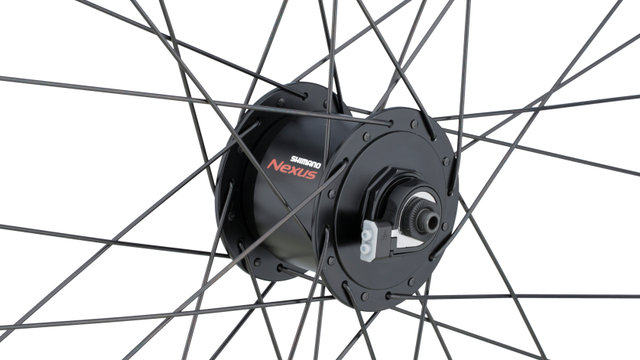

Technical Information - Front Dynamo Hub:

Type:

Shimano Nexus DH-C3000-3N-QR

Over Locknut Dimension:

9 x 100 mm quick release

Output:

6V/3W (according to StVZO)

Efficiency:

min. 30% according to ISO 6742

Body Material:

aluminium

Seals:

contact

Wire Connector:

E2-TYP (= meets current European standards for two lights)

Street Use in Germany:

yes

Check Number:

K~~912

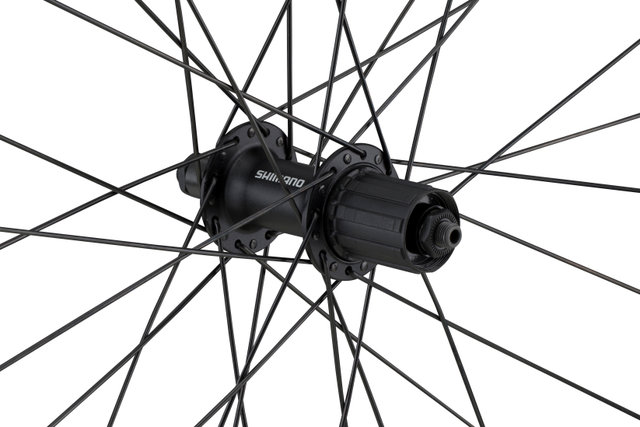

Technical Information - Rear Hub:

Type:

Shimano FH-T3000

Over Locknut Dimension:

10 x 135 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

steel

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Factory / round (2.0)

Spoke Size:

264 mm (front), 258 mm (front hub dynamo), 262 mm/260 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

DT Swiss

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

140 kg system weight (rider + bike + gear)

Features:

• pin joint rim
• single eyelets
• 1200 N maximum spoke tension
• contact seals
• steel axles

Colour Index:

black:

• Rim: black
• Hub: black
• Spokes: black
• Nipples: silver

Models:

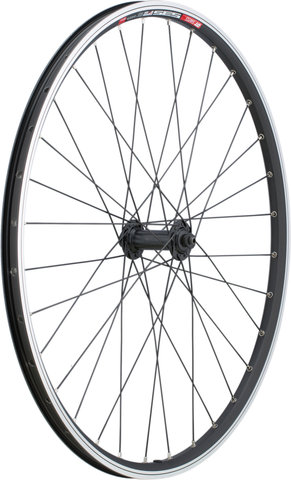

26" front 9x100:

Manufacturer Number:

70924-2-10052

26" front 9x100 dynamo:

Manufacturer Number:

70924-2-12094

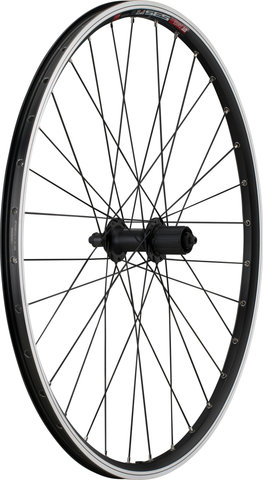

26" rear 10x135 Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

70924-2-10053

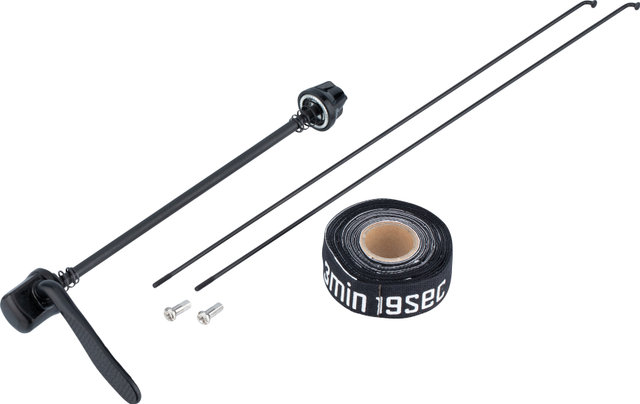

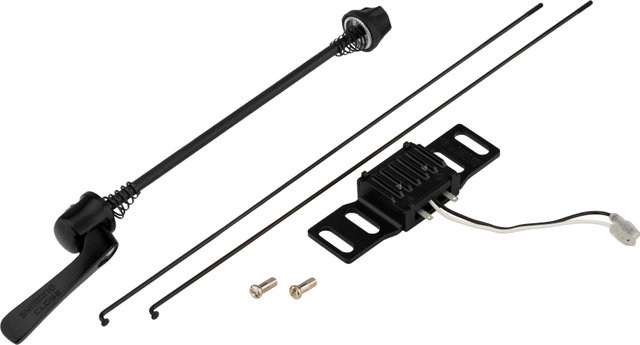

Contents:

• 1 x bc basic DT Swiss 535 + Shimano T3000 / DH-C3000 wheel (front or front dynamo hub or rear, laced and trued)
• 1 x Shimano quick release
• 1 x roll of rim tape
• 2 x spare spokes with nipples
• 1 x connector (front dynamo hub only)
• 1 x overvoltage protector (front dynamo hub only)

• black | 26" front 9x100: 944 g
