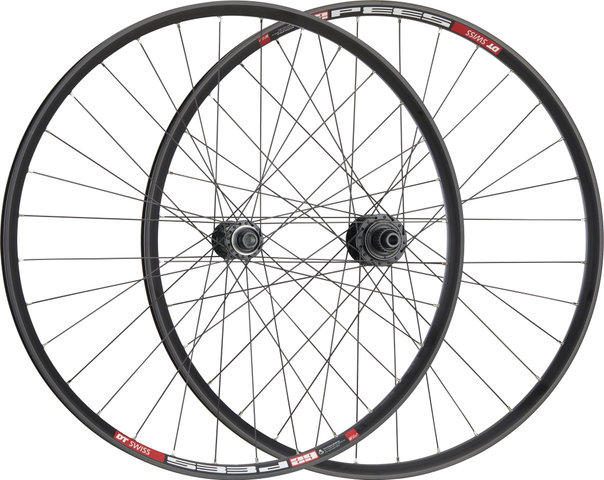

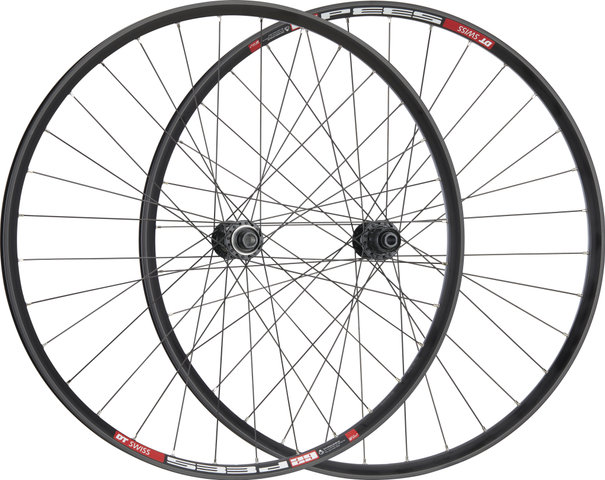

bc basic Mountain Deore Center Lock Disc DT 533 29" Boost/Non-Boost Wheelset

The 29" Mountain Wheelset by bc basic with DT 533 Disc Rims and Shimano Deore Boost Front Hub

These bc basic 29" wheels for all-mountain and enduro use have the Shimano Center Lock Disc thru-axle hub HB-MT400-B with 110 mm Boost over locknut dimensions mounted at the front. In contrast, the FH-MT410 with 142 mm standard over locknut dimension is used at the rear. Both hubs provide reliable function at Deore level. The rear wheel is available with a Micro-Spline freehub body for MTB 12-speed cassettes as well as with a conventional Shimano freehub. The aluminium rims are the 533D model from DT Swiss with 22 mm jaw width. It stands out for its durability and is suitable for even the most demanding trails. A tubeless set-up is also possible. The wheelset is laced with round DT Factory spokes.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Center Lock Disc

Wheel Standard:

Boost (Front)

Tubeless System:

Tubeless Ready

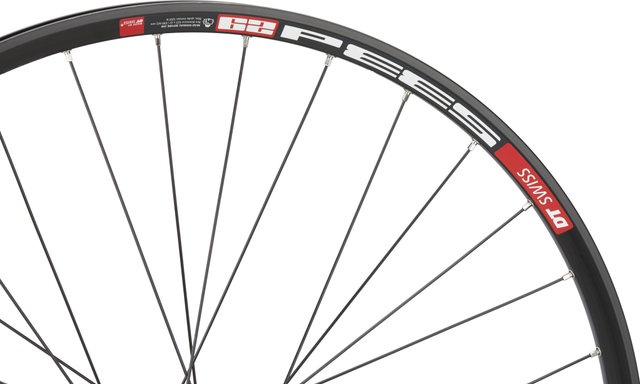

Technical Information - Rim:

Type:

DT Swiss 533D

Rim Flange:

with hook

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

28 mm

Depth:

20.5 mm

ERD:

602 mm (nipple slot)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

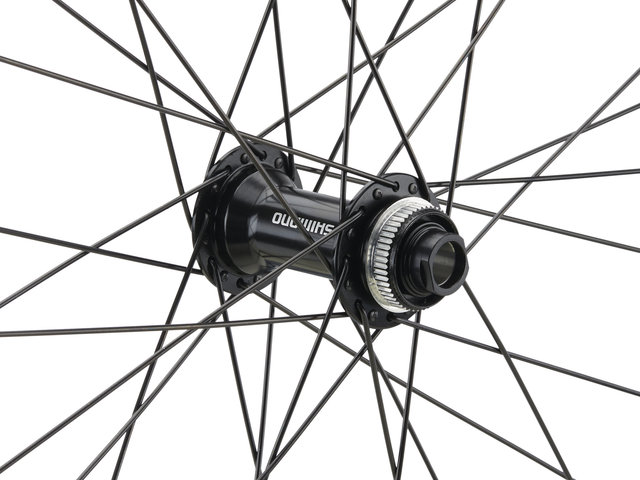

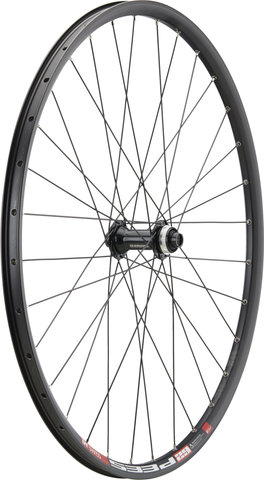

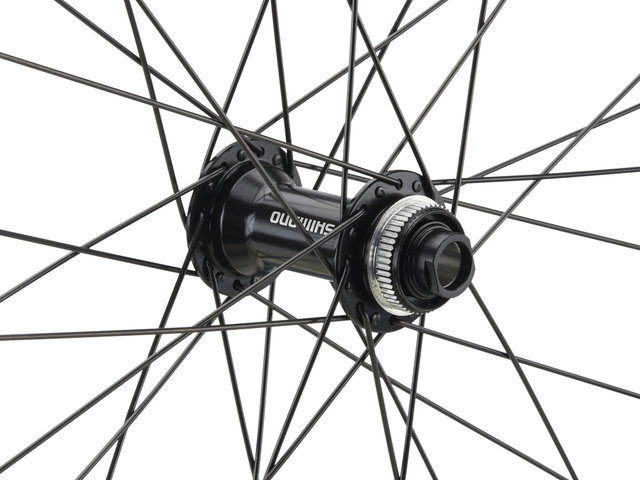

Technical Information - Front Hub:

Type:

Shimano HB-MT400-B

Over Locknut Dimension:

15 x 110 mm thru-axle

Body Material:

aluminium

Technical Information - Rear Hub:

Type:

FH-MT400 or FH-MT410

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

cartridge

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Pawls (Quick Engagement: 36 engagement points / 360°)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Factory / round (2.0 mm)

Spoke Size:

• front: 292 mm/294 mm (l/r)
• rear Shimano: 294 mm/292 mm (l/r)
• rear Shimano MS: 292 mm/290 mm (l/r)

Spoke Material:

stainless steel

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

130 kg system weight (rider + bike + gear)

Features:

• resistant rims for the most demanding trails
• pin joint rim joint
• rim holes silver eyeleted
• painted hub body
• front axle made of aluminium, rear axle made of steel

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: silver

Models:

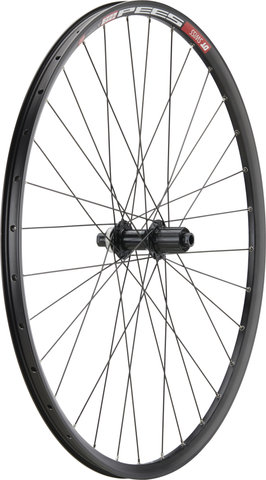

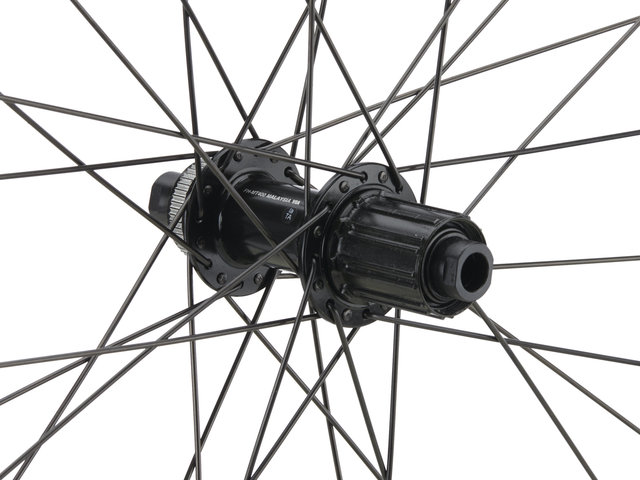

29" set (front 15x110 Boost + rear 12x142) Shimano:

Type Rear Hub:

FH-MT400

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

83677-2-9113

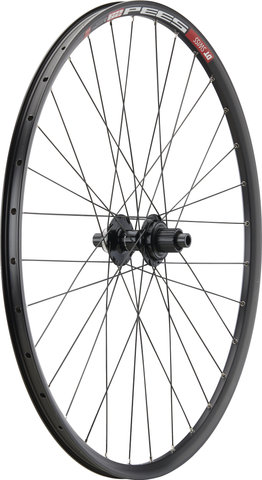

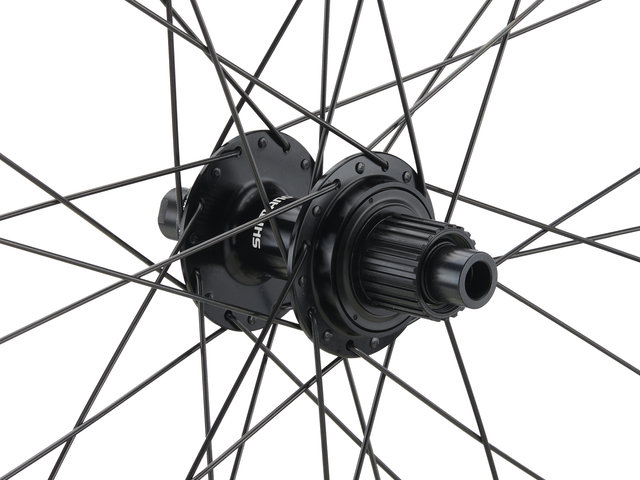

29" set (front 15x110 Boost + rear 12x142) Shimano Micro Spline:

Type Rear Hub:

FH-MT410

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83677-2-14067

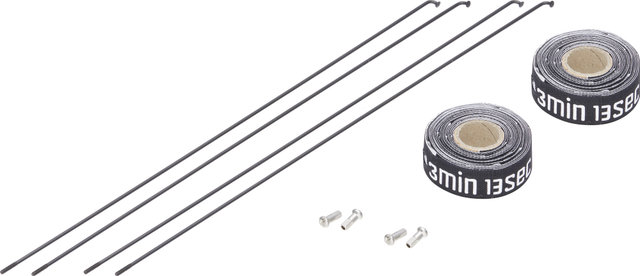

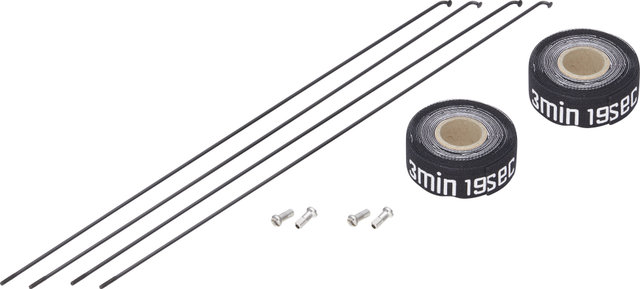

Contents:

• 1 x bc basic Mountain Deore Center Lock Disc DT Swiss 533D Boost/Non-Boost wheelset (front wheel and rear wheel, laced and trued)
• 2 x rolls of rim tape
• 4 x spare spokes with nipples

• schwarz | Shimano Micro Spline | Boost | 142 mm | 110 mm | 29" | 110 mm | Shimano Micro Spline | 110 mm | 142 mm | Non Boost: 2490 g
• schwarz | Shimano MTB | Boost | 142 mm | 110 mm | 29" | 110 mm | Shimano MTB | 110 mm | 142 mm | Non Boost: 2520 g
