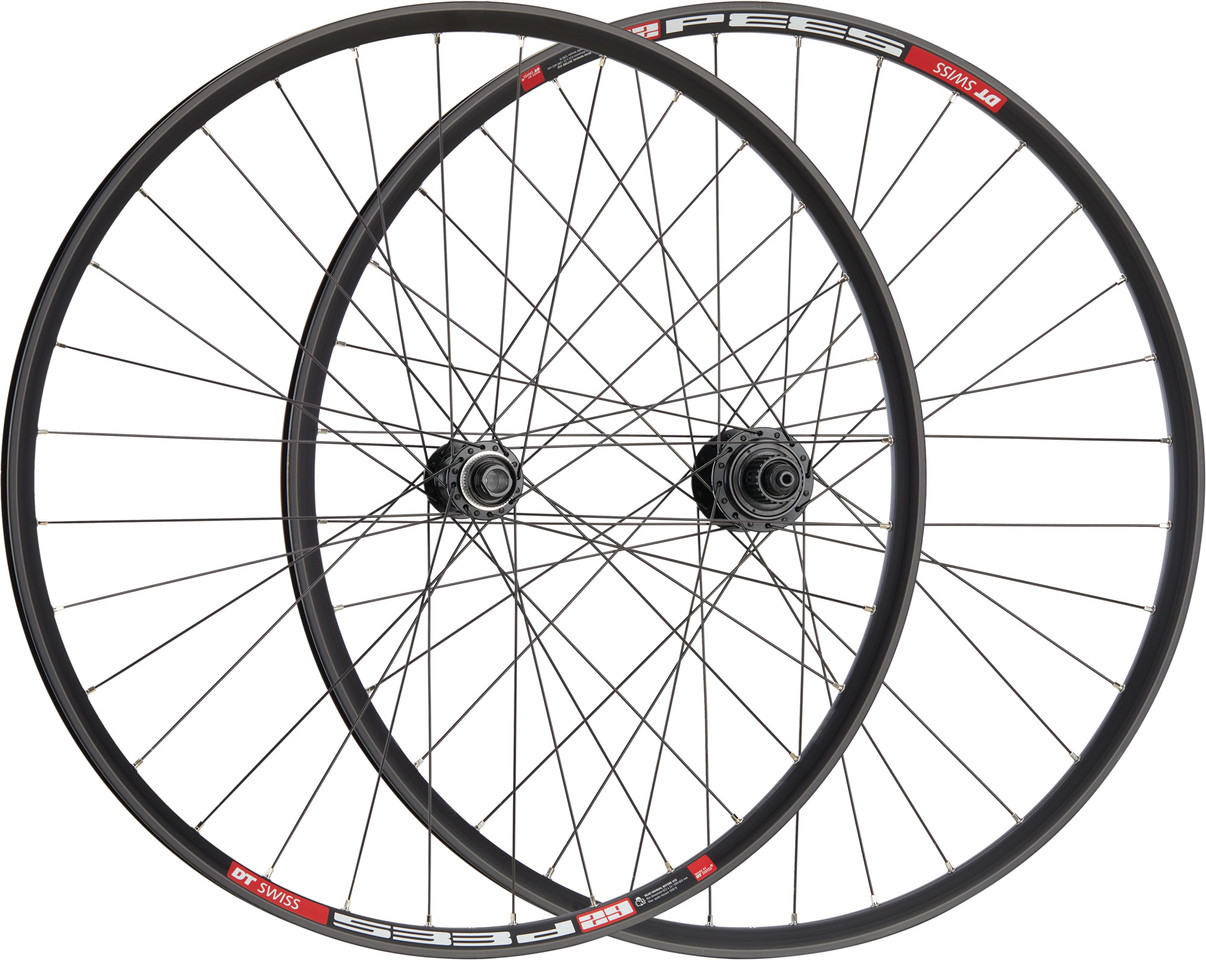

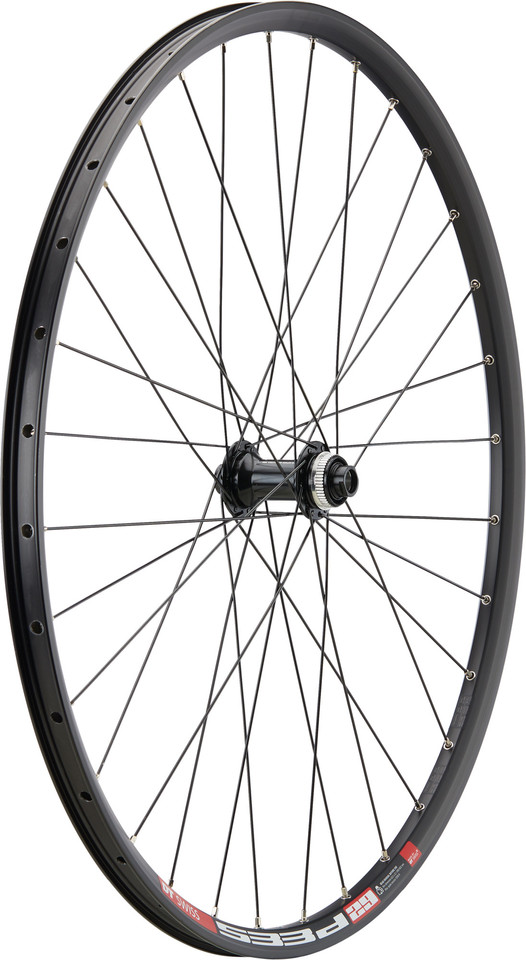

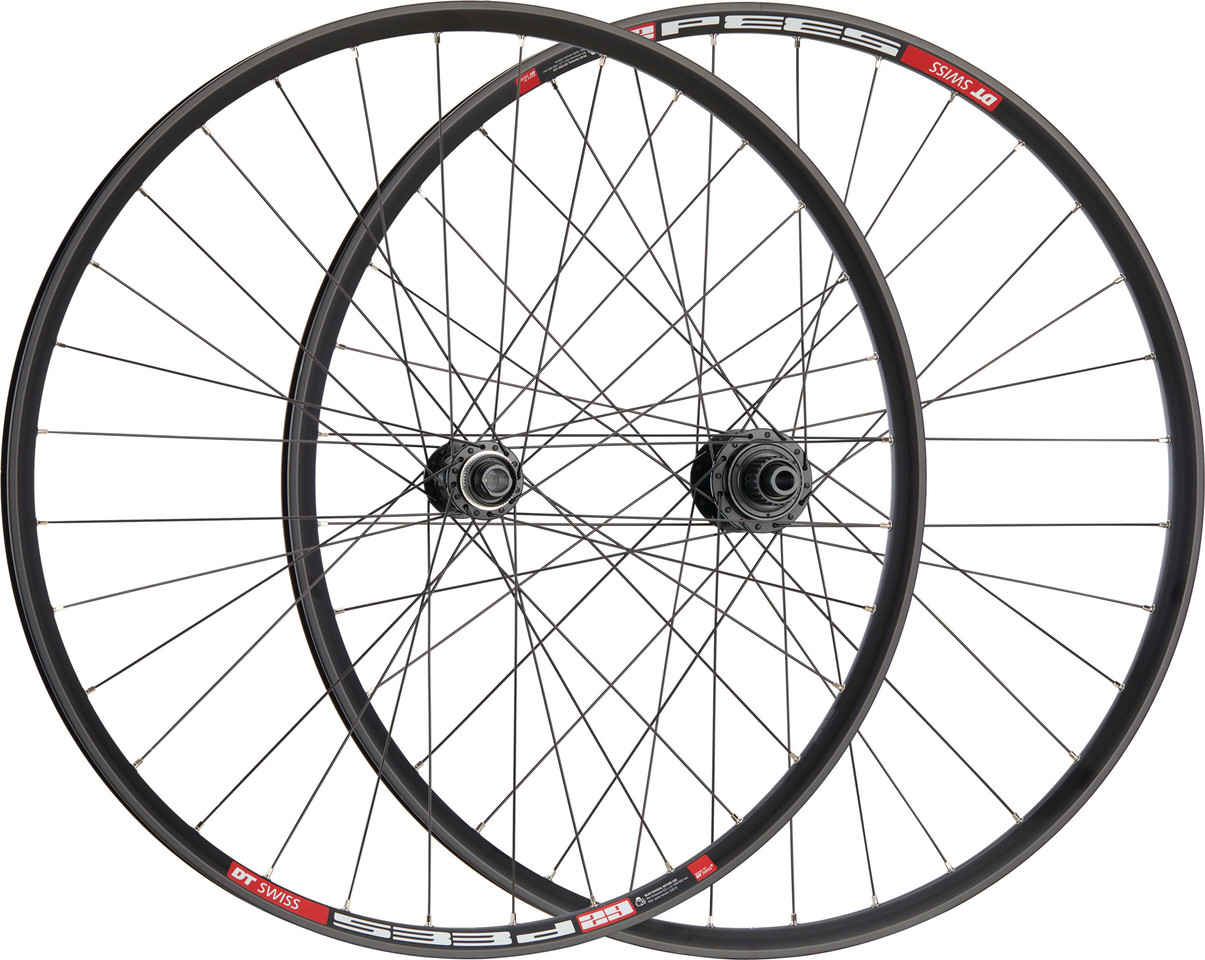

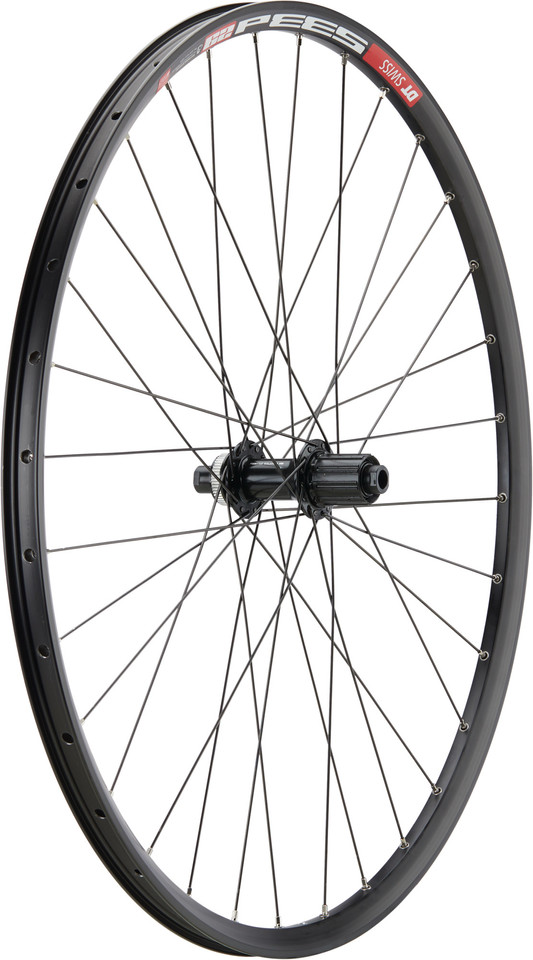

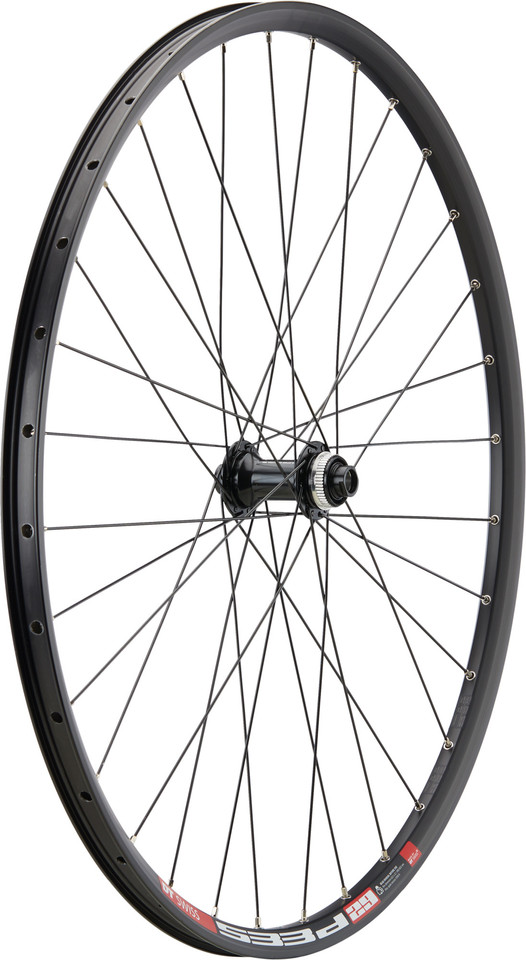

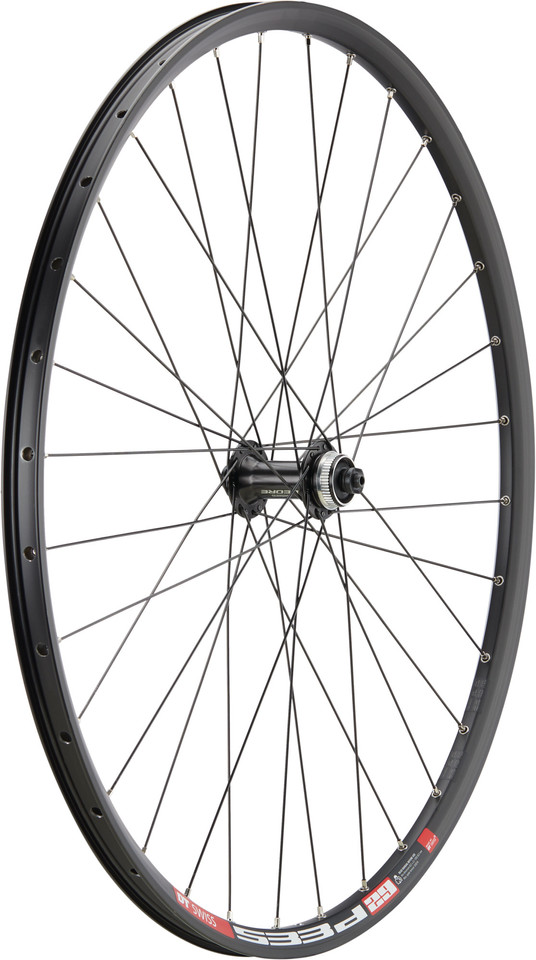

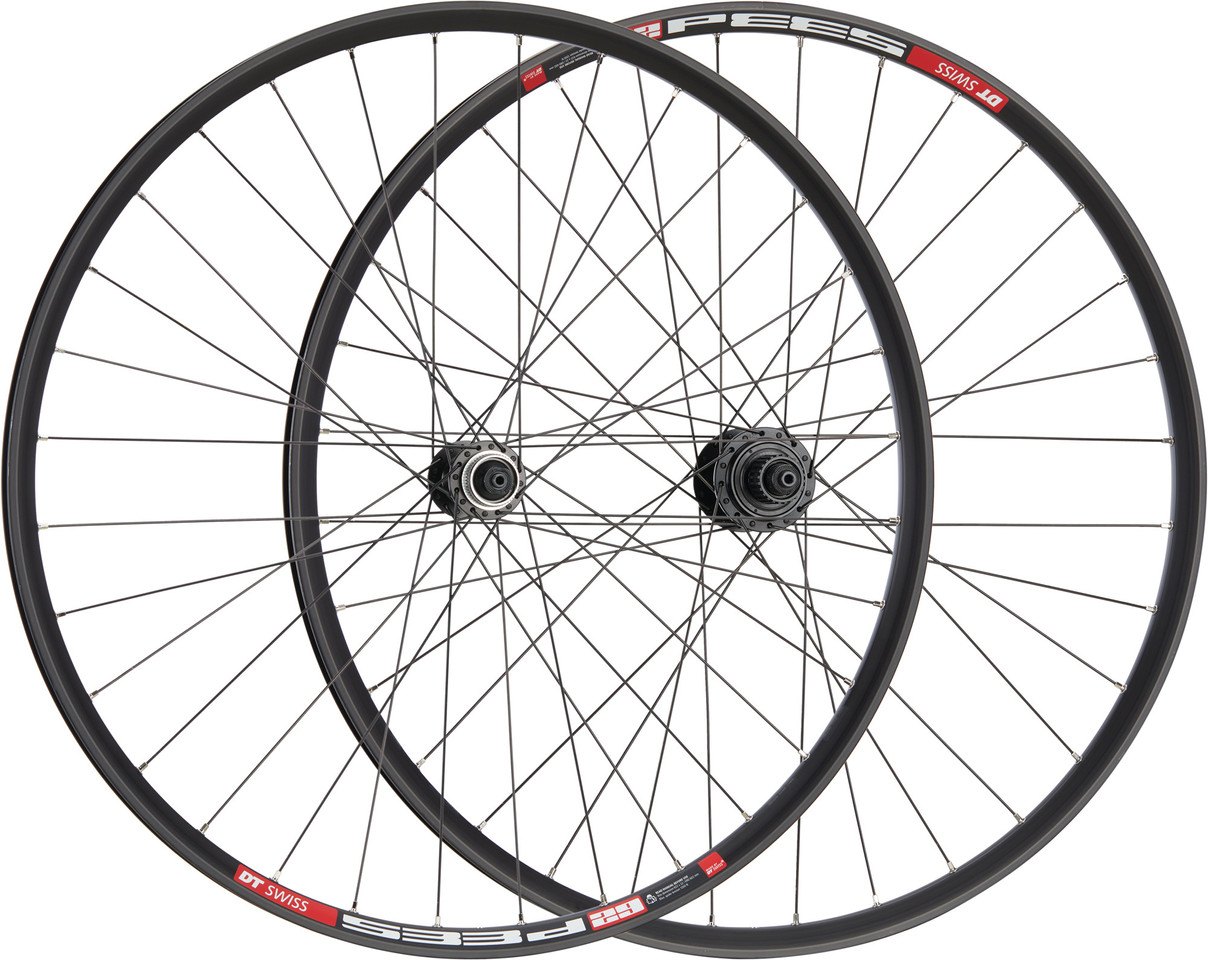

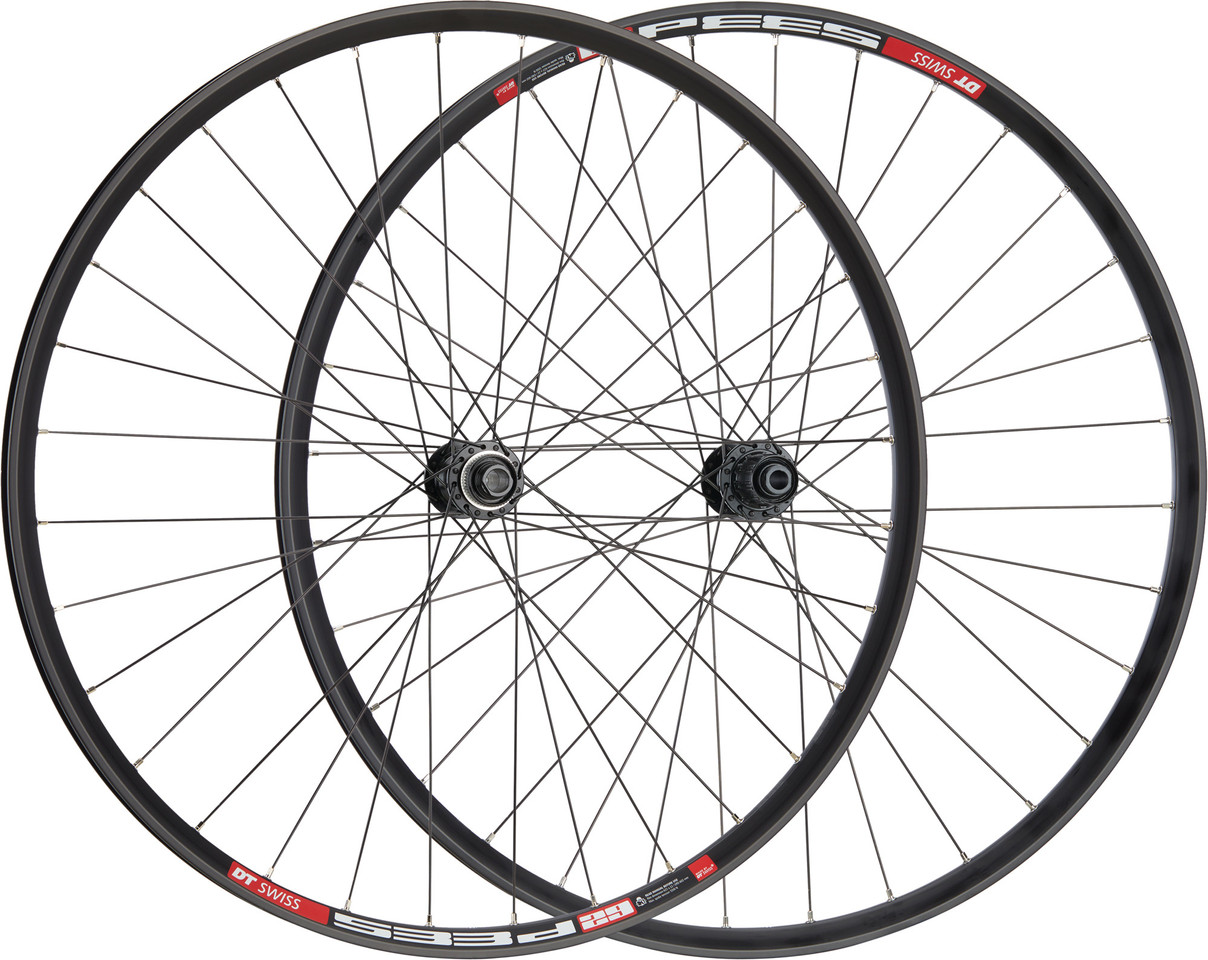

The 29" Mountain Wheelset by bc basic with DT 533 Disc Rims and Shimano Deore Hubs

These bc basic 29" wheels for all-mountain and enduro use have Shimano Center Lock Disc quick release or thru-axle hubs with standard over locknut dimensions of 100 and 135 or 142 mm. They ensure reliable function at the Deore level. The rear wheel is available with a Micro-Spline freehub body for MTB 12-speed cassettes as well as with a conventional Shimano freehub. The aluminium rims are the 533D model from DT Swiss with 22 mm jaw width. It stands out for its durability and is suitable for even the most demanding trails. Tubeless installation is possible. The wheelset is laced with round DT Factory spokes.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

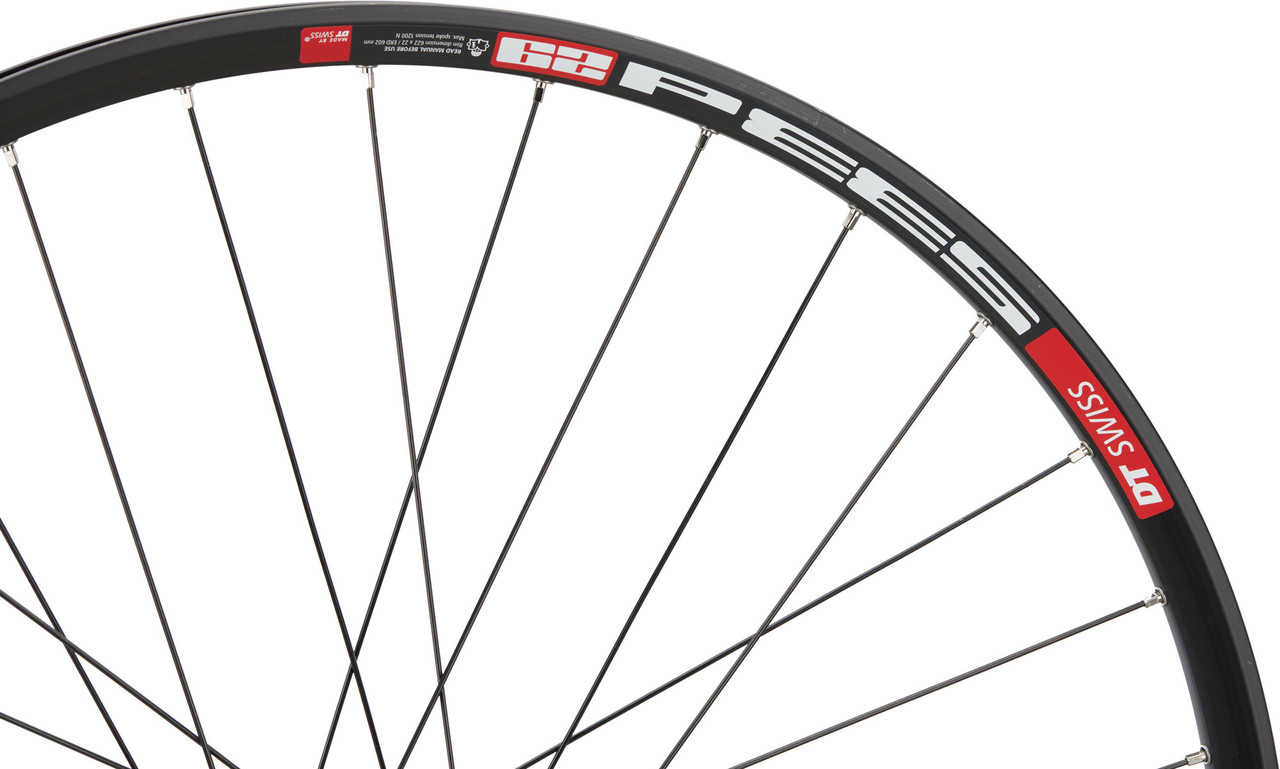

Technical Information - Rim:

Type:

DT Swiss 533D

Rim Flange:

with hook

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

28 mm

Depth:

20.5 mm

ERD:

602 mm (nipple slot)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

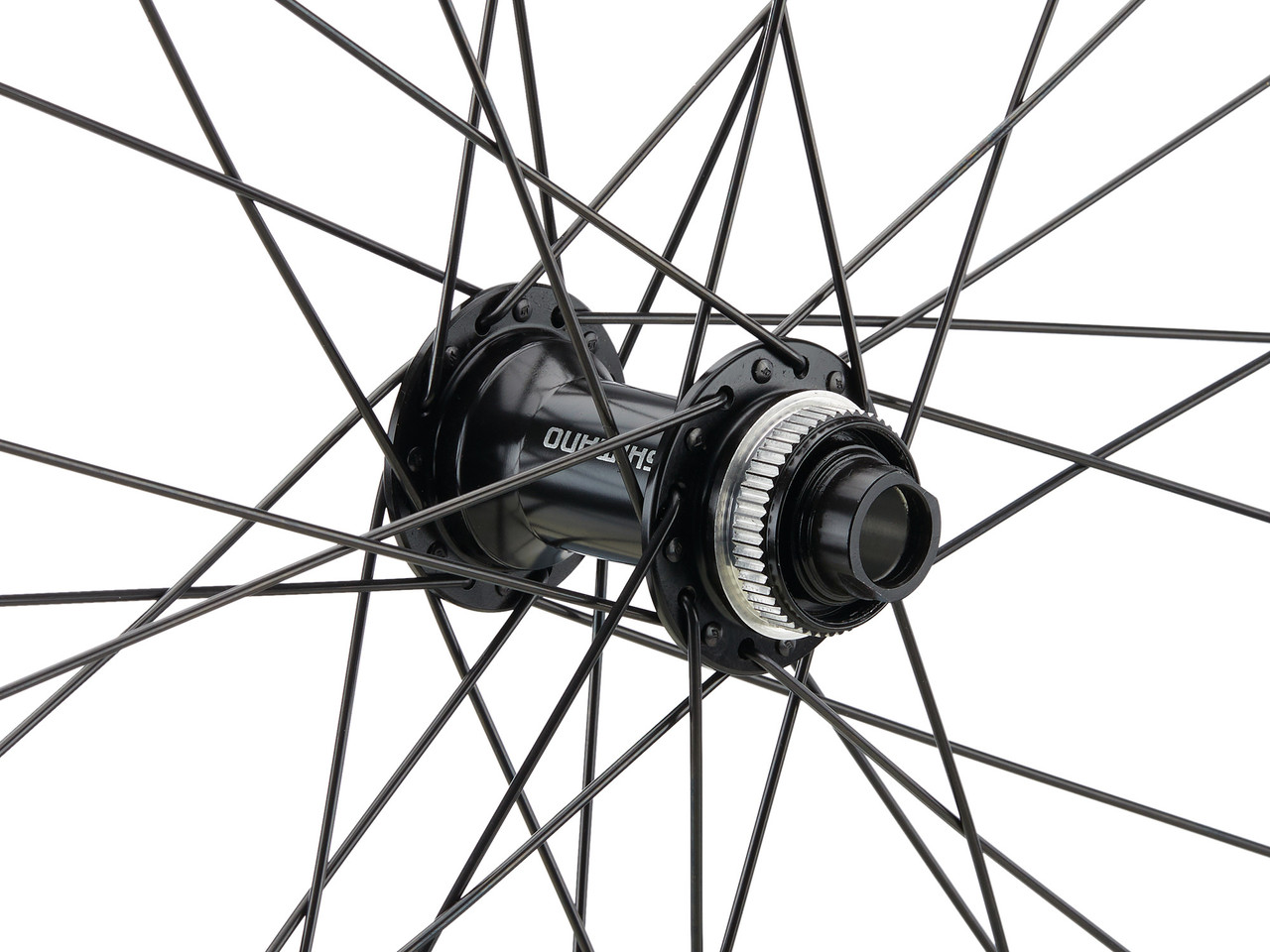

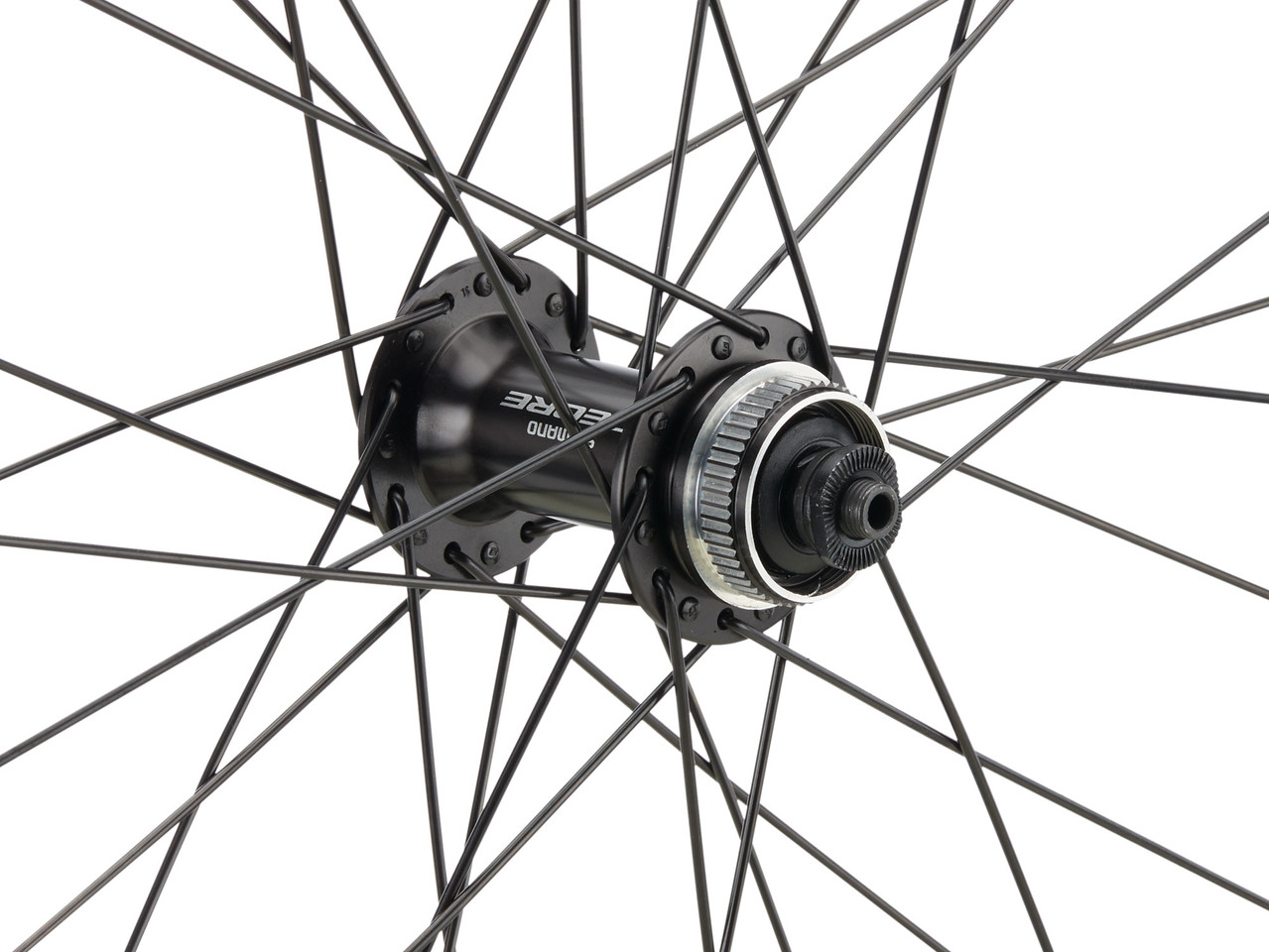

Technical Information - Front Hub:

Type:

Shimano Deore HB-M6000 or HB-MT400

Over Locknut Dimension:

9 x 100 mm quick release or 15 x 100 mm thru-axle

Bearings:

cup & cone bearing (HB-M6000 only)

Body Material:

aluminium

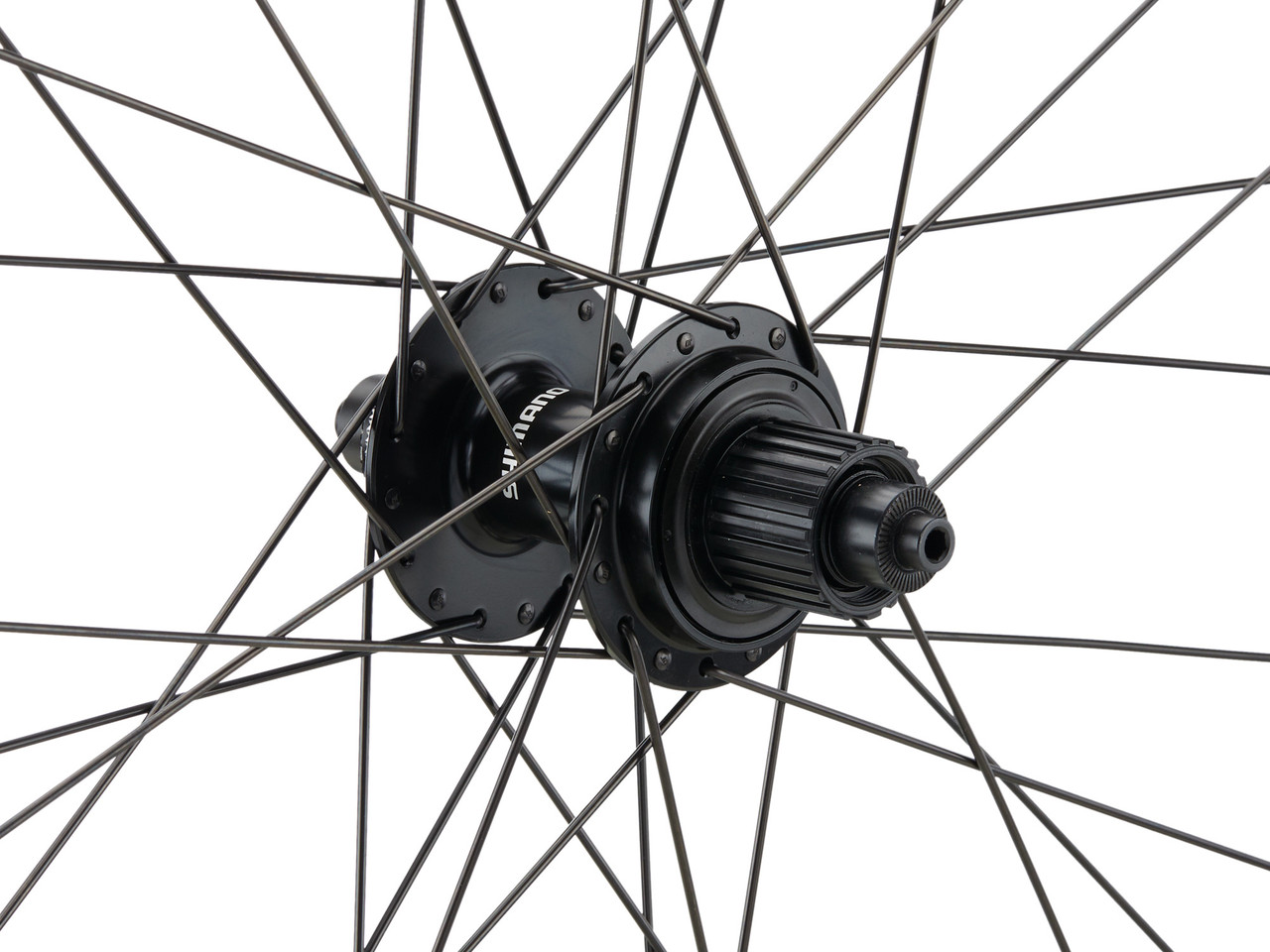

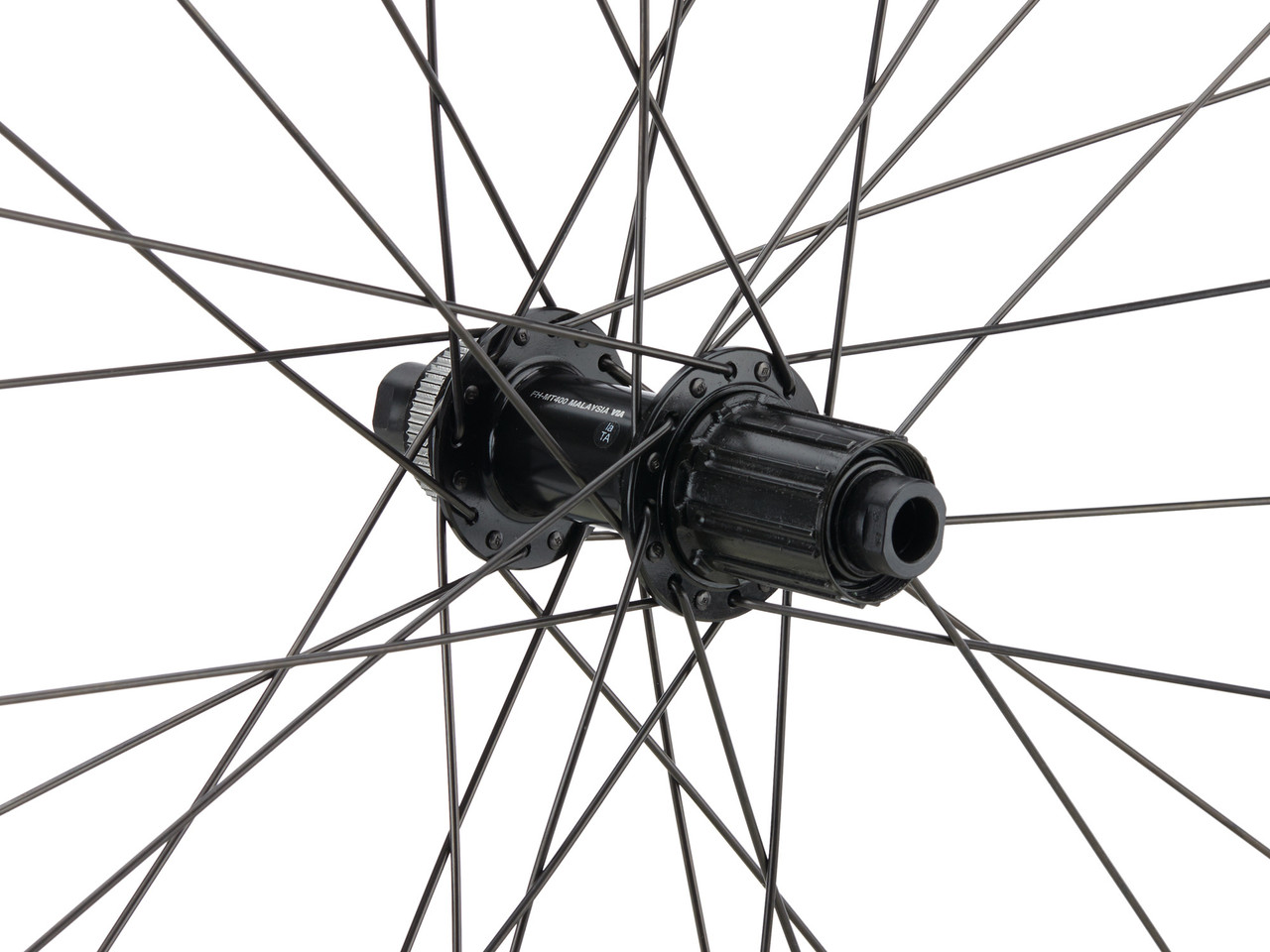

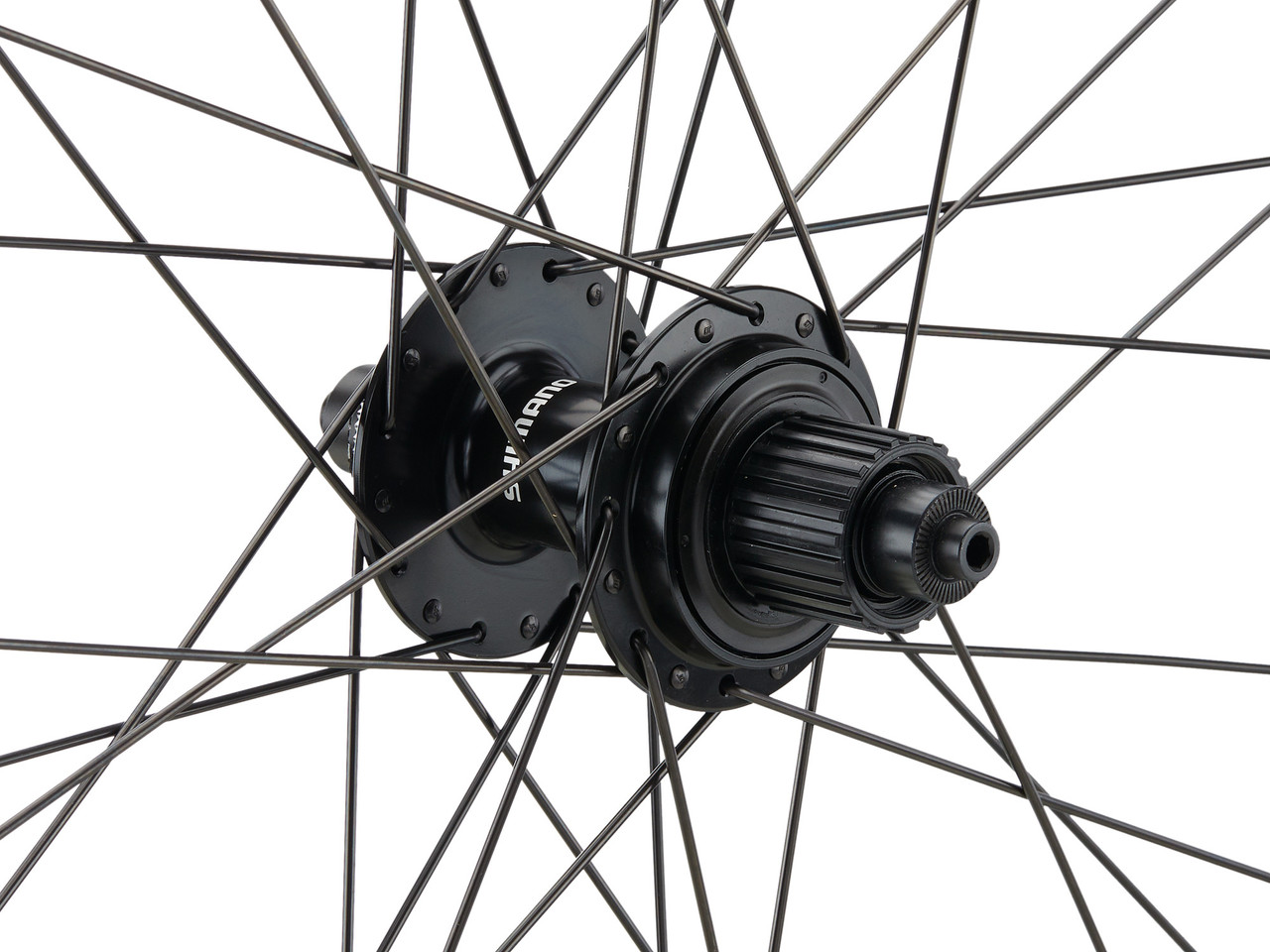

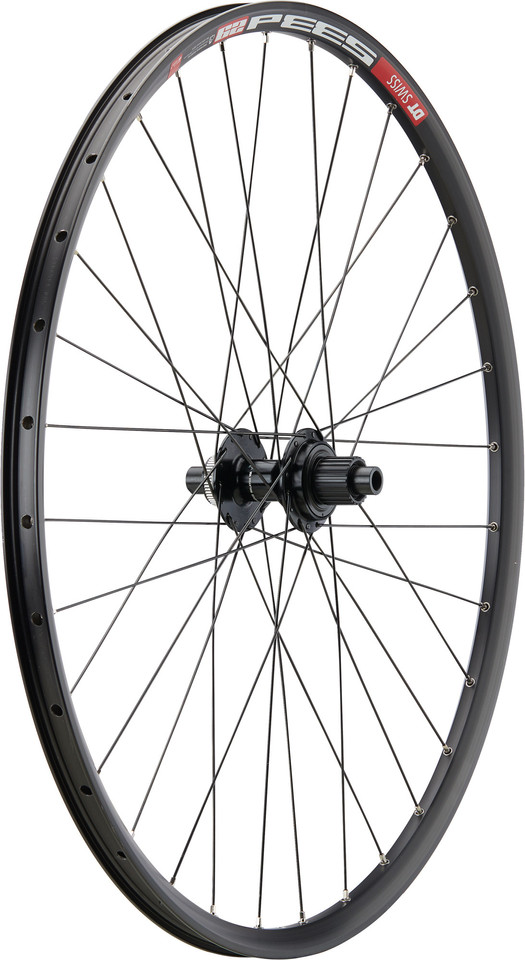

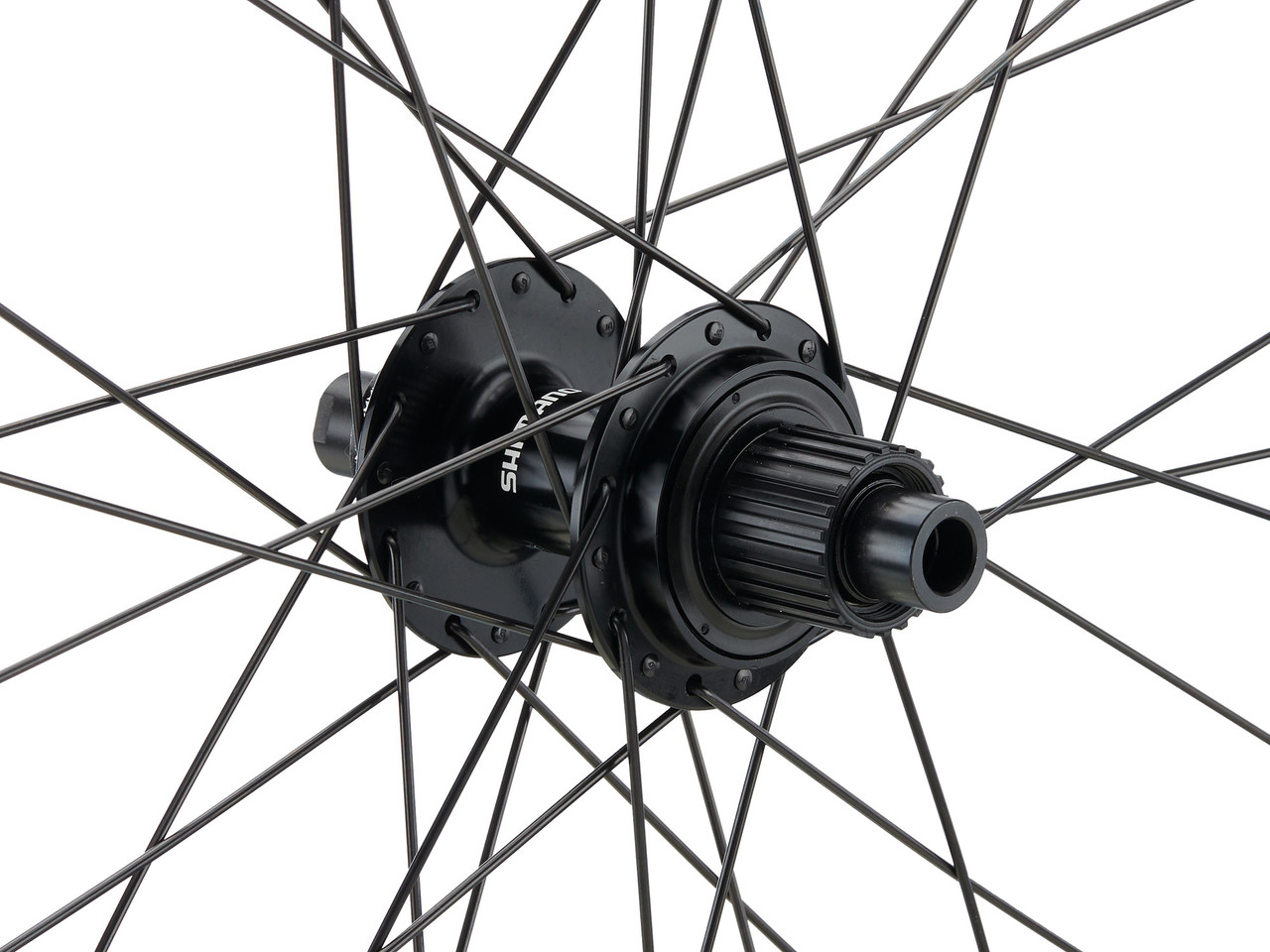

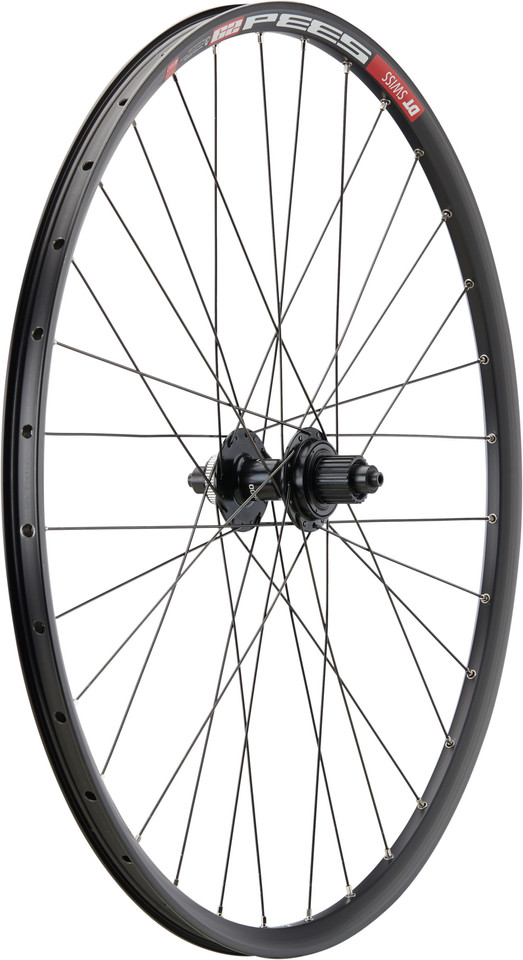

Technical Information - Rear Hub:

Type:

Shimano FH-MT401 or FH-MT400 or FH-MT410

Over Locknut Dimension:

10 x 135 mm quick release or 12 x 142 mm thru-axle

Bearings:

cartridge

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Pawls (Quick Engagement: 36 engagement points / 360°)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Factory / round (2.0 mm)

Spoke Size:

• front 9 mm: 292 mm
• front 15 mm: 292 mm/294 mm (l/r)
• rear 142 mm Shimano: 294 mm/292 mm (l/r)
• rear 142 mm Shimano MS: 292 mm/290 mm (l/r)
• rear 135 mm Shimano MS: 290 mm/288 mm (l/r)

Spoke Material:

stainless steel

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

130 kg system weight (rider + bike + gear)

Features:

• resistant rims for the most demanding trails
• pin joint rim joint
• rim holes silver eyeleted
• lacquered hub shell (HB-M6000: anodised)
• steel axles (HB-MT400: aluminium)

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: silver

Models:

29" set (front 9x100 + rear 10x135) Shimano Micro Spline:

Over Locknut Dimension (Front):

9 x 100 mm quick release (HB-M6000)

Over Locknut Dimension (Rear):

10 x 135 mm quick release (FH-MT401)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83674-2-14064

29" set (front 15x100 + rear 10x135) Shimano Micro Spline:

Over Locknut Dimension (Front):

15 x 100 mm thru-axle (HB-MT400)

Over Locknut Dimension (Rear):

10 x 135 mm quick release (FH-MT401)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83674-2-14065

29" set (front 15x100 + rear 12x142) Shimano Micro Spline:

Over Locknut Dimension (Front):

15 x 100 mm thru-axle (HB-MT400)

Over Locknut Dimension (Rear):

12 x 142 mm thru-axle (FH-MT410)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83674-2-14066

29" set (front 15x100 + rear 12x142) Shimano:

Over Locknut Dimension (Front):

15 x 100 mm thru-axle (HB-MT400)

Over Locknut Dimension (Rear):

12 x 142 mm thru-axle (FH-MT400)

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

83674-2-8822

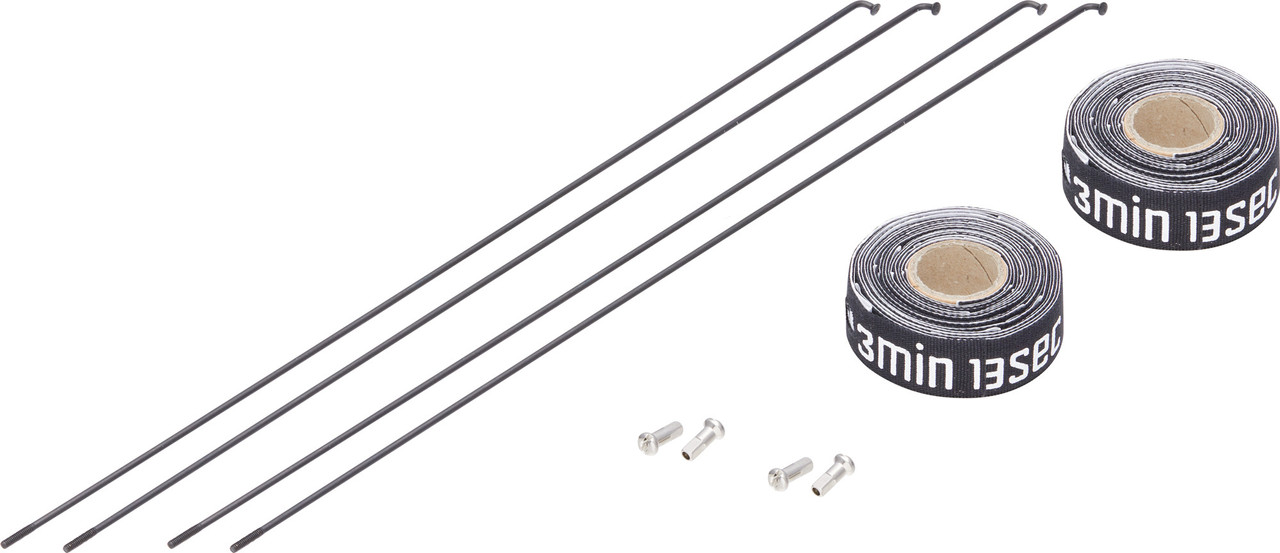

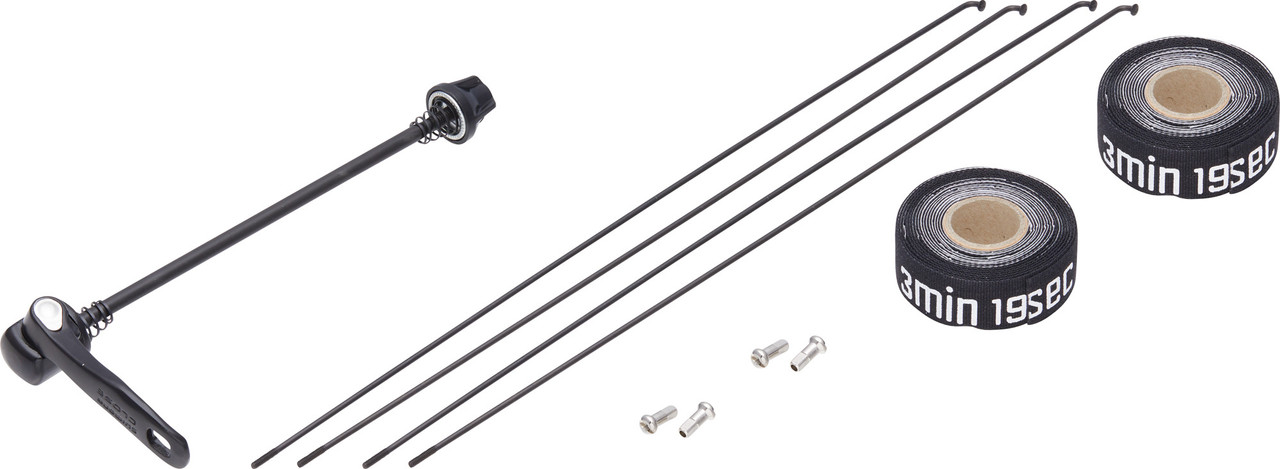

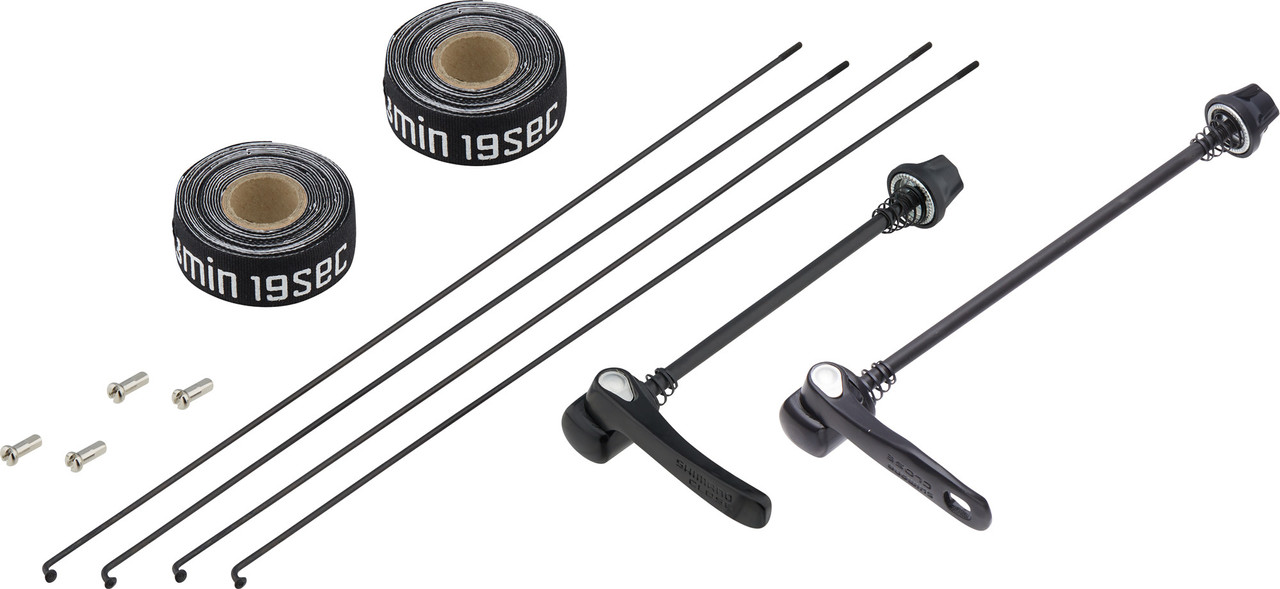

Contents:

• 1 x bc basic Mountain Deore Center Lock Disc DT Swiss 533D wheelset (front and rear wheel, laced and trued)
• 2 x quick releases (only for front 9x100 + rear 10x135)
• 1 x quick release rear (only for front 15x100 + rear 10x135)
• 2 x rolls of rim tape
• 4 x spare spokes with nipples
