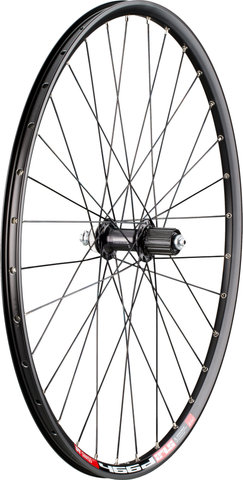

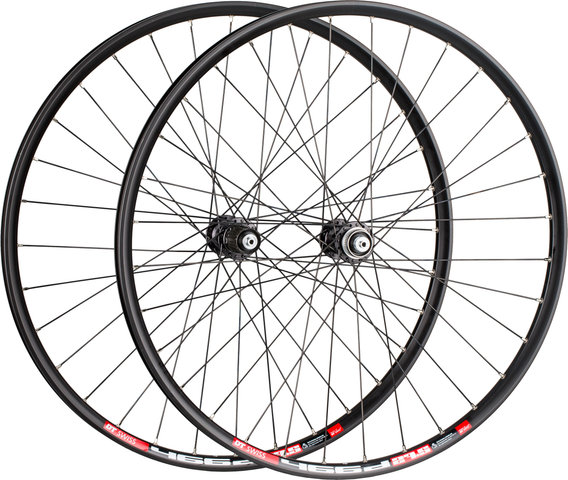

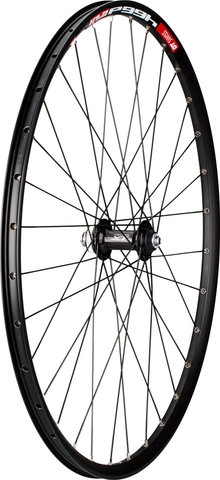

bc basic Mountain XT Center Lock Disc 27.5" Wheelset

bc basic Mountain XT 27.5" Disc wheelset with DT Swiss 466d rim, Shimano M8000 hubs and DT Swiss Competition spokes.

Specifications:

Application:

Cross Country, All Mountain

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Center Lock Disc

Tubeless System:

none

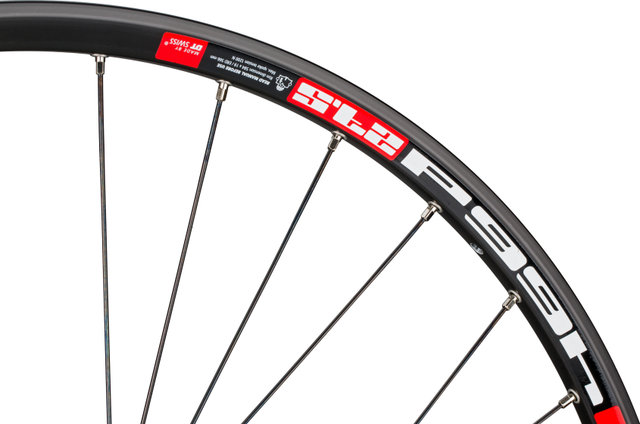

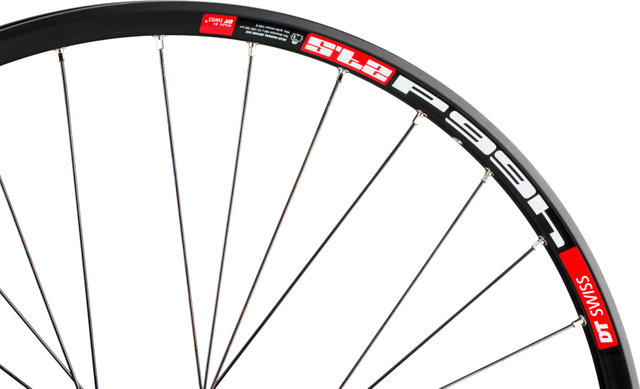

Technical Information - Rim:

Type:

DT Swiss 466d

Rim Flange:

with hook

Dimensions (ETRTO):

19-584

Inner Width:

19 mm

Outer Width:

24.5 mm

Depth:

19 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

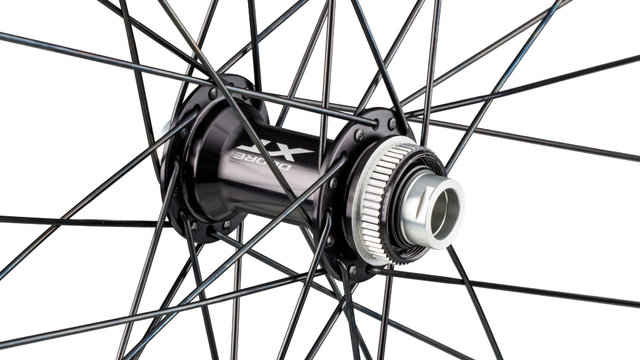

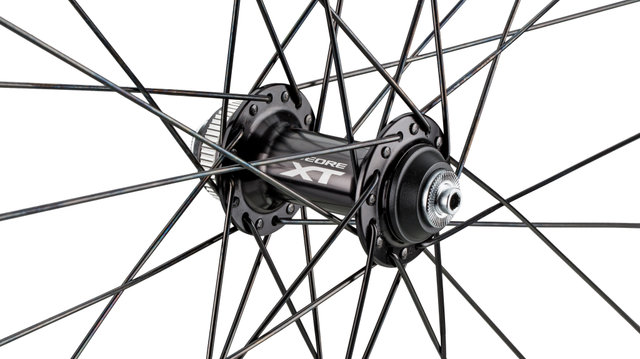

Technical Information - Front Hub:

Type:

Shimano Deore XT HB-M8000 or HB-M8010

Over Locknut Dimension:

9 x 100 mm quick release or 15 x 100 mm thru-axle

Bearings:

cup & cone

Body Material:

aluminium

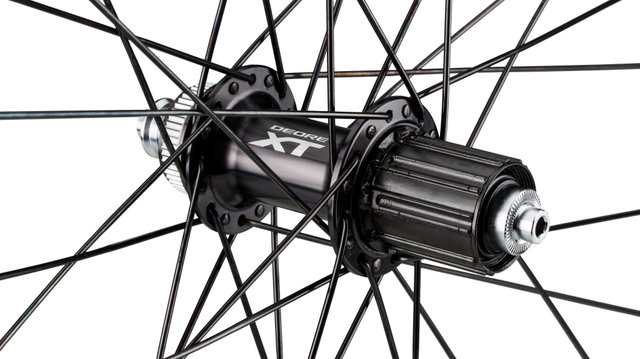

Technical Information - Rear Hub:

Type:

Shimano Deore XT FH-M8000

Over Locknut Dimension:

10 x 135 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Quick Engagement (36 points/360°)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Competition / double butted (2.0-1.8-2.0)

Spoke Size:

274 mm/276 mm (front l/r), 276 mm/274 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

DT Swiss

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

110 kg system weight (rider + bike + gear)

Features:

• anodised aluminium rim
• anodised hubs
• labyrinth and contact seals
• aluminium axles
• internal grease sleeve
• double butted technology

Colour Index:

black:

• Rim: black
• Hub: black
• Spokes: black
• Nipples: silver

Models:

27.5" set (front + rear):

Front installation width:

9 x 100 mm quick release

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

46658-2-6993

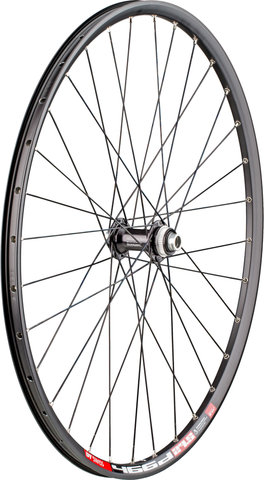

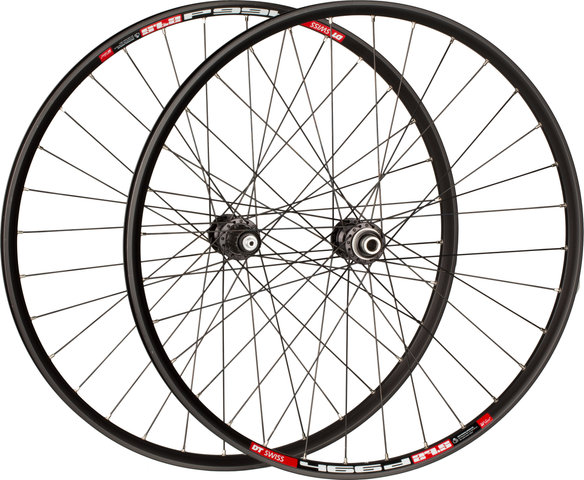

27.5" set (front 15 mm+rear):

Front installation width:

15 x 100 mm thru-axle

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

46658-2-7251

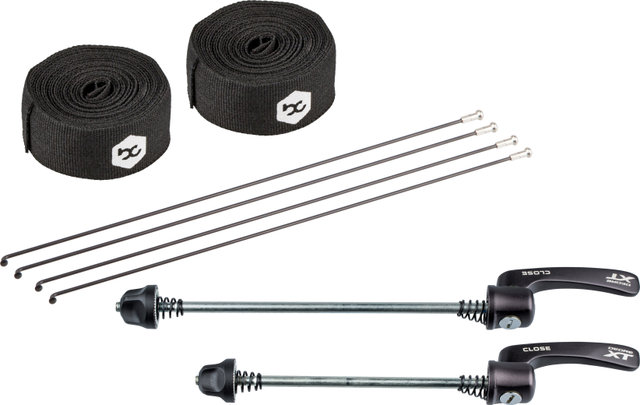

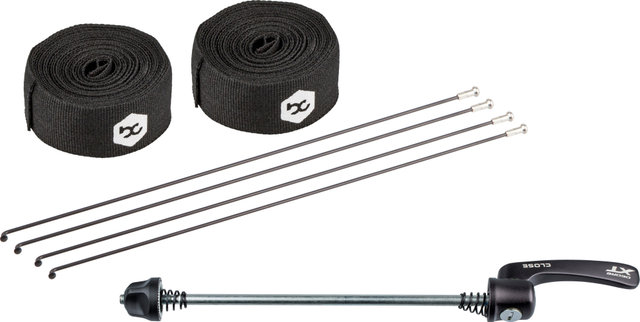

Contents:

• 1 x bc basic Mountain XT Disc wheelset (front and rear, laced and trued)
• 2 x Shimano quick releases or 1 x Shimano quick release (w/ front 15 mm)
• 2 x rolls bc rim tape
• 4 x spare spokes with nipples

• black | 27.5" set (front + rear): 1899 g
• black | 27.5" set (front 15mm +rear): 1884 g
