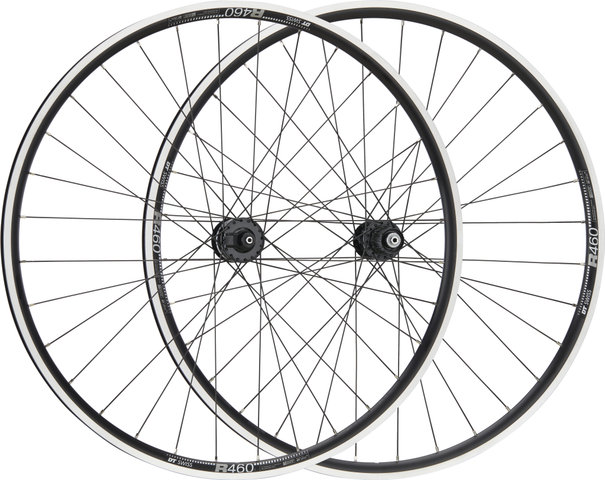

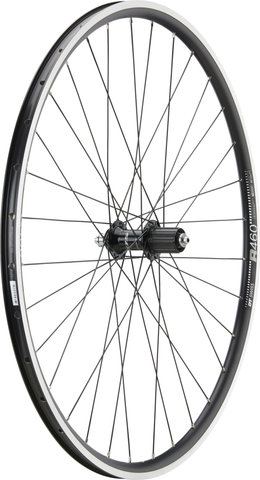

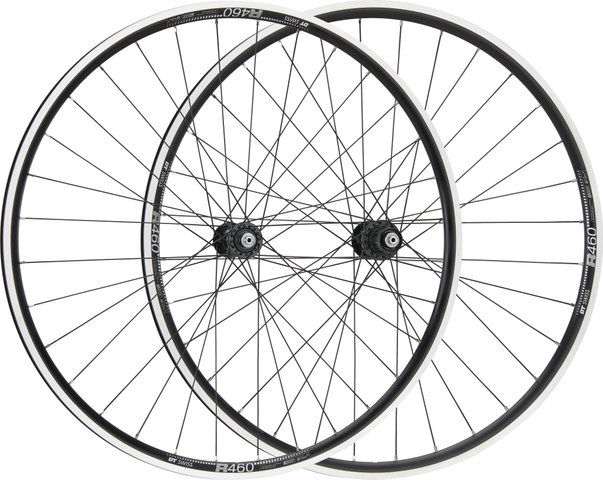

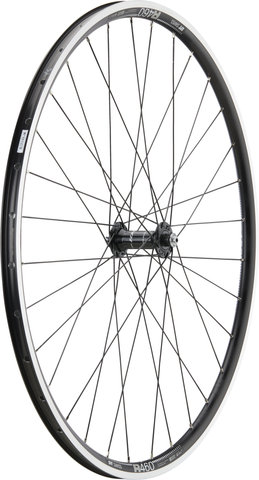

bc basic Race Shimano 105 DT Swiss R 460 28" Wheelset

The Race Wheelset by bc basic with DT R 460 Rims and Shimano 105 hubs

The Race wheelset from bc basic is based on the R 460 road rims from DT Swiss. These are made of aluminium, have a jaw width of 18 mm and are 23 mm high. They are perfect for wider tyres and stand out for their reliability. A tubeless set-up is also possible. At the centre of the wheels are the Shimano 105 HB-R7000 and FH-R7000 rim brake hubs for quick-release mounting. The front wheel is also available with the PV-8 hub dynamo from Shutter Precision, which provides energy for road-compliant light. The wheels were laced with double-butted DT Comp spokes.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

rim brake

Tubeless System:

Tubeless Ready

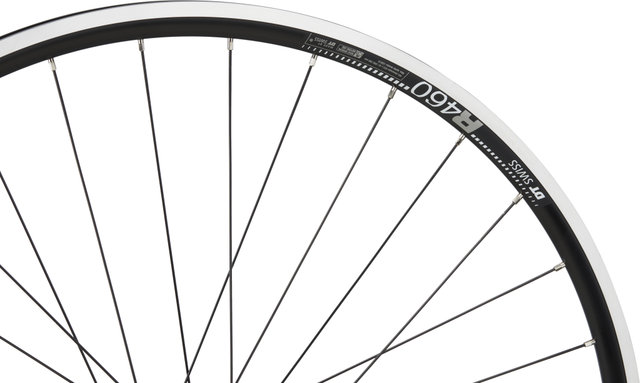

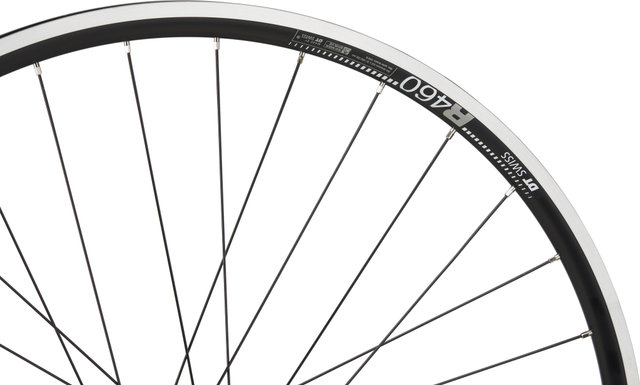

Technical Information - Rim:

Type:

DT Swiss 460

Rim Flange:

with hook

Dimensions (ETRTO):

18-622

Inner Width:

18 mm

Outer Width:

23 mm

Depth:

23 mm

ERD:

596 mm (nipple slot)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

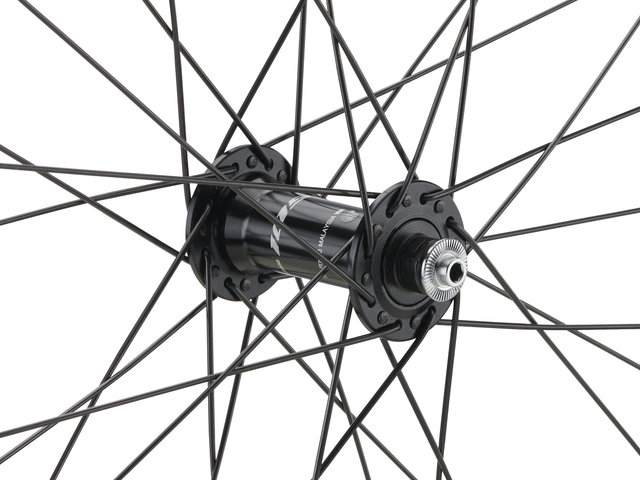

Technical Information - Front Hub:

Type:

Shimano 105 HB-R7000

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

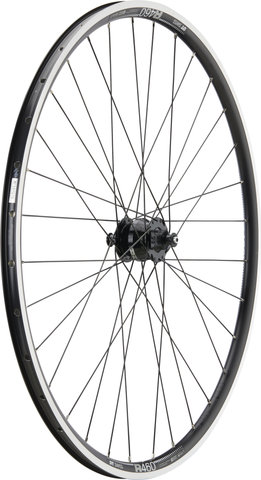

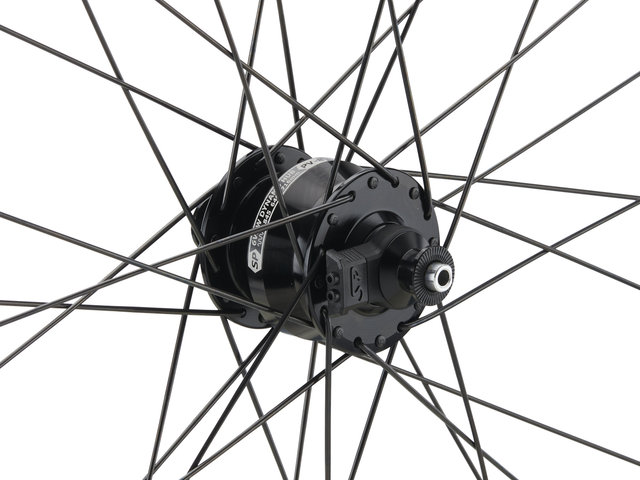

Technical Information - Front Dynamo Hub:

Type:

Shutter Precision PV-8

Over Locknut Dimension:

9 x 100 mm quick release

Output:

6V/3W (according to StVZO)

Efficiency:

72% at 15 km/h in a 28" wheel

Body Material:

aluminium

Wire Connector:

plug, 2-poles

Street Use in Germany:

yes

Check Number:

K~~845

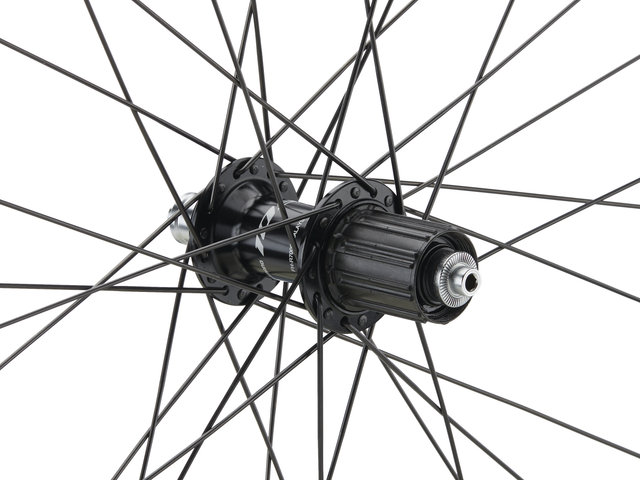

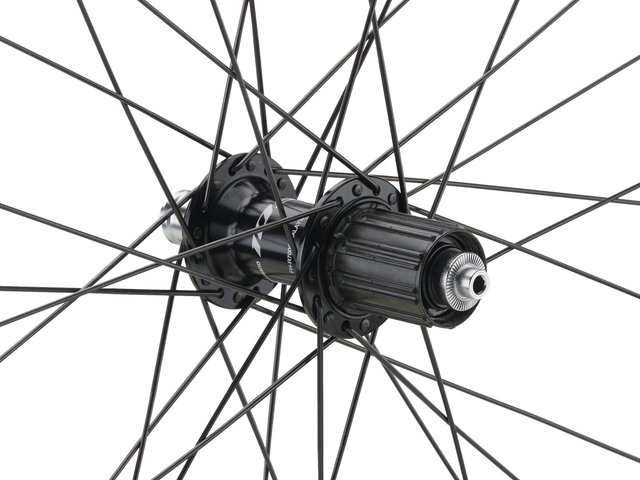

Technical Information - Rear Hub:

Type:

Shimano 105 FH-R7000

Over Locknut Dimension:

10 x 130 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

steel

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Competition / double-butted (2.0-1.8-2.0 mm)

Spoke Size:

290 mm (front), 288 mm (front hub dynamo), 290 mm/288 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

110 kg system weight (rider + bike + gear)

Recommended Tyre Width:

25 - 30 mm

Features:

• reliable, wide all-round rims
• sleeved rim joint
• rim holes unpunched
• anodised hub shell
• steel axles

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: silver

Models:

28" set (front 9x100 + rear 10x130) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer ring.

Manufacturer Number:

83672-2-10433

28" set (front 9x100 dynamo + rear 10x130) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer ring.

Manufacturer Number:

83672-2-11624

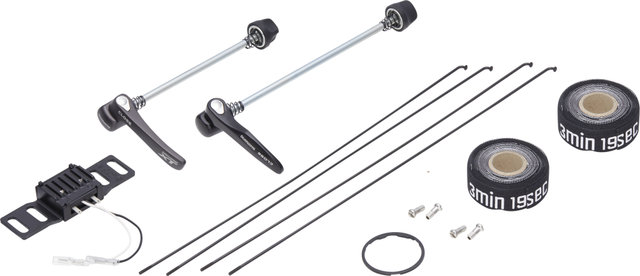

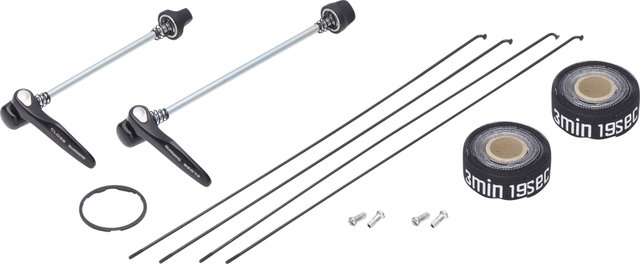

Contents:

• 1 x bc basic Race Shimano 105 DT Swiss R 460 Wheelset (front wheel or front dynamo hub and rear, laced and trued)
• 2 x quick releases
• 2 x rolls of rim tape
• 4 x spare spokes with nipples
• 1 x cassette spacer
• 1 x connector (front dynamo hub only)
• 1 x overvoltage protector (front dynamo hub only)
