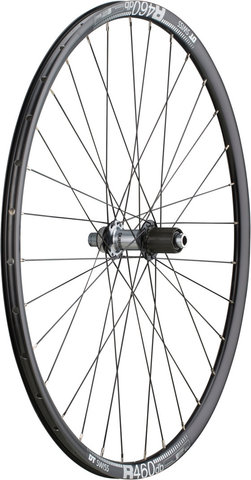

bc basic Race Ultegra Center Lock Disc 28" Wheel
Item number: 63423
Product Description
bc basic Race Ultegra 28" Disc wheel with DT Swiss R 460 rim, Shimano RS770 hubs and DT Swiss Competition spokes.
28" rear 12x142 Shimano:
Specifications:
- Application:
- Road, Cyclocross, Gravel
- Wheel Size:
- 28"
- Tyre Type:
- clincher tyre
- Number of Spokes:
- 32
- Brake Type:
- Center Lock Disc
- Tubeless System:
- Tubeless Ready

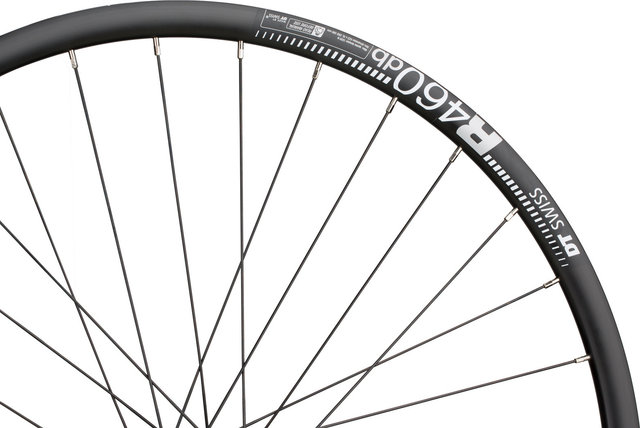

Technical Information - Rim:
- Type:
- DT Swiss 460
- Rim Flange:
- with hook
- Dimensions (ETRTO):
- 18-622
- Inner Width:
- 18 mm
- Outer Width:
- 22 mm
- Depth:
- 23 mm
- ERD:
- 596 mm (nipple slot)
- Valve Hole Diameter:
- SV/Presta (6.5 mm)
- Rim Material:
- aluminium

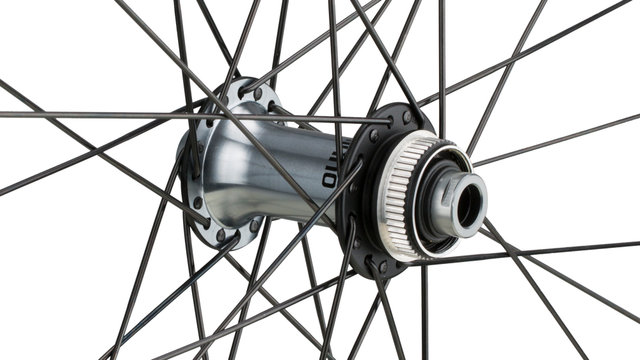

Technical Information - Front Hub:
- Type:
- Shimano HB-RS770
- Over Locknut Dimension:
- 12 x 100 mm thru-axle
- Bearings:
- cup & cone
- Body Material:
- aluminium

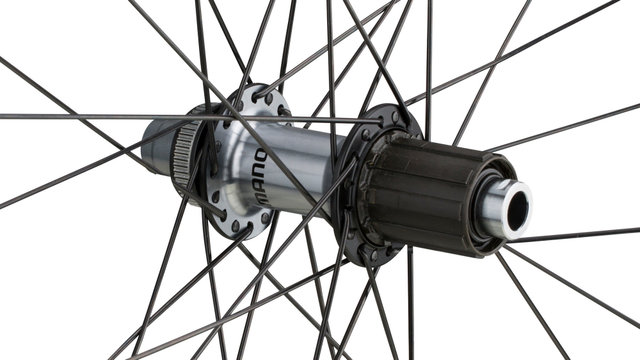

Technical Information - Rear Hub:
- Type:
- Shimano FH-RS770
- Over Locknut Dimension:
- 12 x 142 mm thru-axle
- Bearings:
- cup & cone
- Body Material:
- aluminium
- Freehub Body Material:
- steel
Technical Information - Lacing:
- Front Lacing Pattern:
- 3-cross
- Rear Lacing Pattern:
- 3-cross
- Spoke Type:
- DT Swiss Competition / double butted (2.0-1.8-2.0)
- Spoke Size:
- 288 mm/290 mm (front l/r), 292 mm (rear)
- Spoke Material:
- stainless steel
- Nipple Type:
- DT Swiss
- Nipple Size:
- 16 mm (length)
- Nipple Material:
- brass
Approved For:
- Weight Limit (Rim):
- 110 kg system weight (rider + bike + gear)
Features:
- unstuck rim, sleeve joint connection
- 1200 N maximum spoke tension
- Tubeless Ready with rim tape
- CBN precision machined bearings
- aluminium axles
- anodised hub shell
- double butted technology
Colour Index:
black:- Rim: black
- Hubs: black-silver
- Spokes: black
- Nipples: silver
Models:
28" front 12x100:- Manufacturer Number:
- 63423-2-10422
28" rear 12x142 Shimano:
- Freehub:
- Shimano Road
- Gearing:
- 8-/9-/10-/11-speed
- Note:
- Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.
- Manufacturer Number:
- 63423-2-10430
Contents:
- 1 x bc basic Race Ultegra Disc wheel (front) or rear, laced and trued)

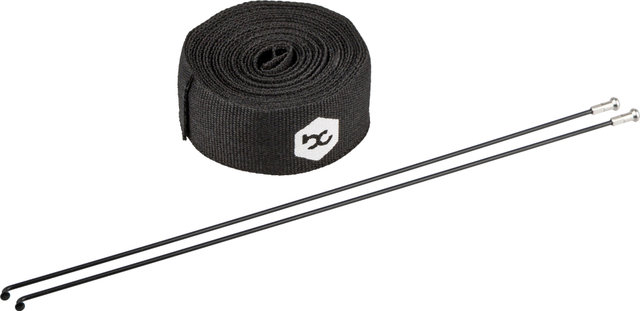

- 1 x roll bc textile rim tape
- 2 x spare spokes with nipples
Weight:
- schwarz | Non Boost | 100 mm | 28" | 100 mm | 100 mm: 820 g
